NOTICE
Control not fixed due to clamped support arm mounting!
Before mounting, ensure that the support arm mounting of the control is not
in open position. If required, release the clamping of the open position using
the locking lever, see Fig. 10.

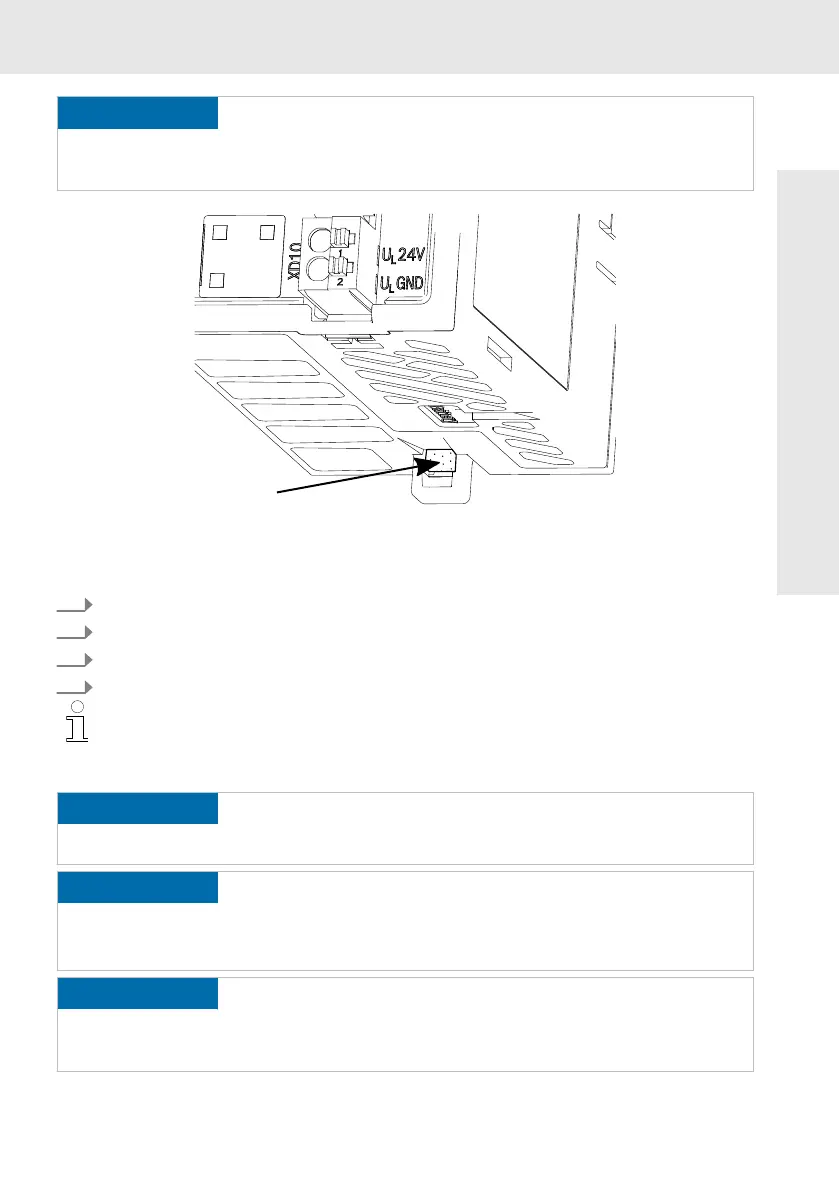

Fig. 10: Locking lever to release the clamping of the open position
Mounting steps
1. Mounting the control
2.
Connecting ctrlX I/O modules in series (optional)
3.
Fastening endcover
4.
Fastening end clamp
The control has up to 50 mounting cycles.
10.3.1 Mounting the ctrlX I/O module
NOTICE
Damage of the device by plug mounting under voltage!
Disconnect the module and all connected module components from voltage
before mounting or dismounting.
NOTICE
Possible damage to property due to unintended mounting of the support rail
− Connect the support rail to a functional ground.
− Mount the module on a support rail.
−
Install the module in a control cabinet or an appropriate housing.
NOTICE
Module is not
fixed correctly due to engaged support arm mounting!
Before mounting, ensure that the support arm mounting of the control is not
in open position. If required, release the clamping of the open position using
the locking lever, refer to the following figure 11.
Mounting, dismounting and electric installation
