Bosch Rexroth ctrlX CORE User Manual

8 / 50
ctrlX CORE
Scope of delivery
Bosch Rexroth AG
R911405645, Edition 05
2 Product identification and scope of delivery
2.1 Product identification
1
2
3
4
5
6
7
8
10
9
11
13
15
17
19
21
2325
26
24
22
20
18
16
14
12
27

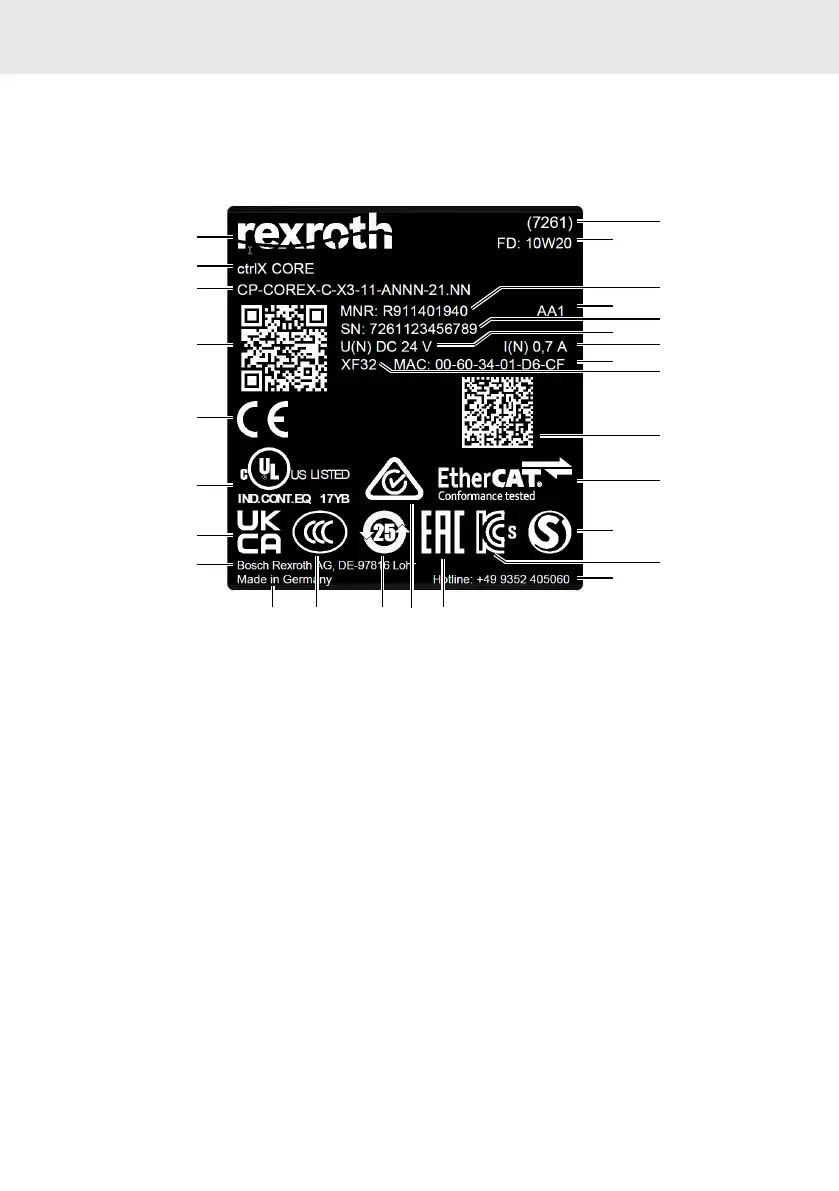

Fig. 2: Type plate (example)
1 Company address
2 UKCA marking
3 Underwriters Laboratories Inc. mark
4 CE conformity mark
5 QR or data matrix code, Rexroth, 2D code
6 Type code
7 Product
8 Trademark
9 Plant number
10 Manufacturing date
11 Part number
12 State of revision
13 Serial number
14 Rated voltage
15 Rated current
16 MAC address (Ethernet ID)
17 Free text on the MAC address
18 MAC code (2D code), data matrix
19 EtherCAT
20 S-mark logo
21 KCs mark
22 Service hotline number
23 EAC conformity mark
24 Regulatory Compliance Mark (RCM)
25 China-RoHs 2 label
26 CCC marking
27 Name of origin
2.2
Scope of delivery
• ctrlX CORE control
•
24 V power connector, 2-pin (ctrlX CORE X2 and ctrlX CORE X3)
