10 Mounting, demounting and electric installationI
10.1 Housing dimensions
122.4
126.5
54.8 *
52.4
35
41.6
50.8
61.2
1
2
* The dimensions depend on the respec-
tive extension module
① Mounting rail TH 35 – 7,5 acc. to DIN EN
60715
② Mounting rail center

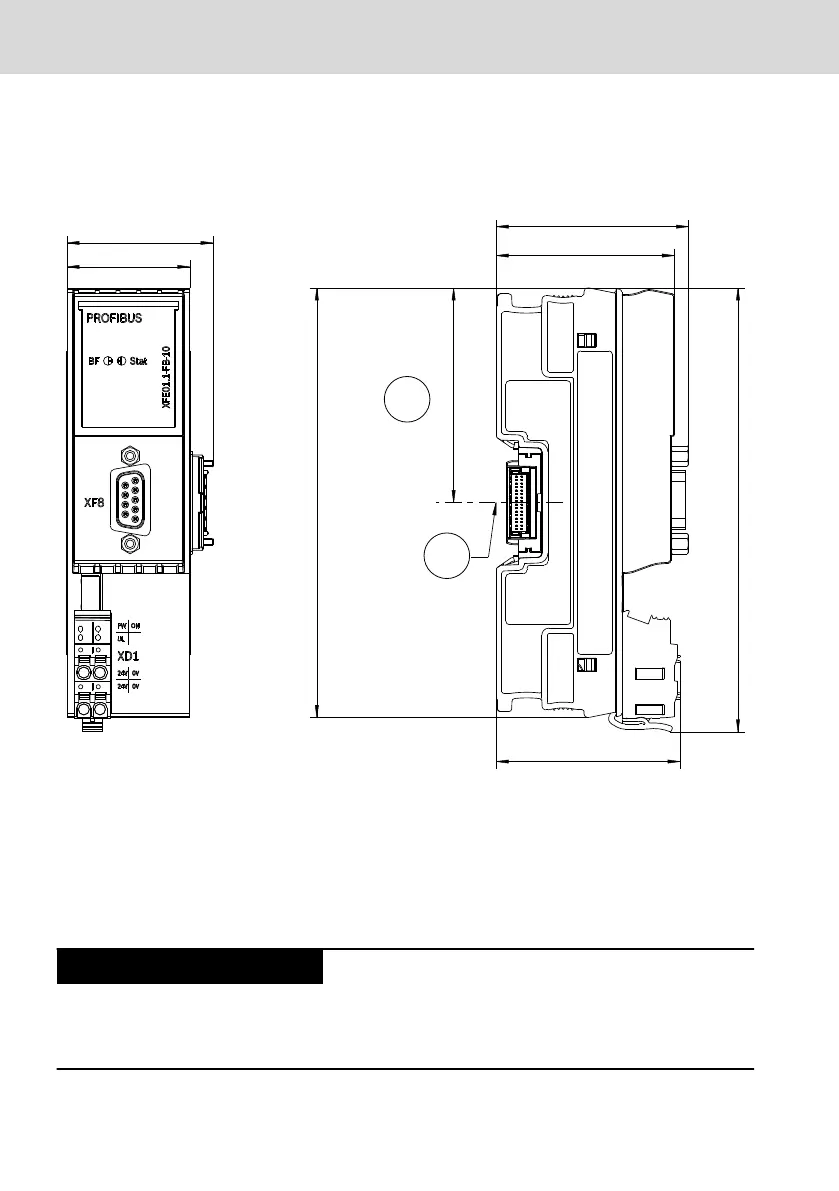

Fig. 10-1: Housing dimensions
10.2
Installation notes
Danger of module destruction due to electro-
static discharge!
Comply with the required safety measures against electrostatic discharge (ESD)
acc. to EN 61340-5-1 when operating the extension modules.
● Shielding connection for the extension module
Bosch Rexroth AG
Mounting, demounting and electric installationI
Extension Modules Profibus, RT-
Ethernet, Sercos, CAN
16/37
DOK-CONTRL-XFE**EXTMOD-IT04-EN-P
