8) HMS, HMD, HCS plus motor holding brake and control section;
HCS01 including control section
9)
DC bus L+, L-; mains input L1, L2, L3
10) Depending on switching frequency which was set in parameter
P‑0‑0001
11) Plus dissipation of braking resistor and control section
Fig.3-1: HMD - UL Ratings and Dimensions

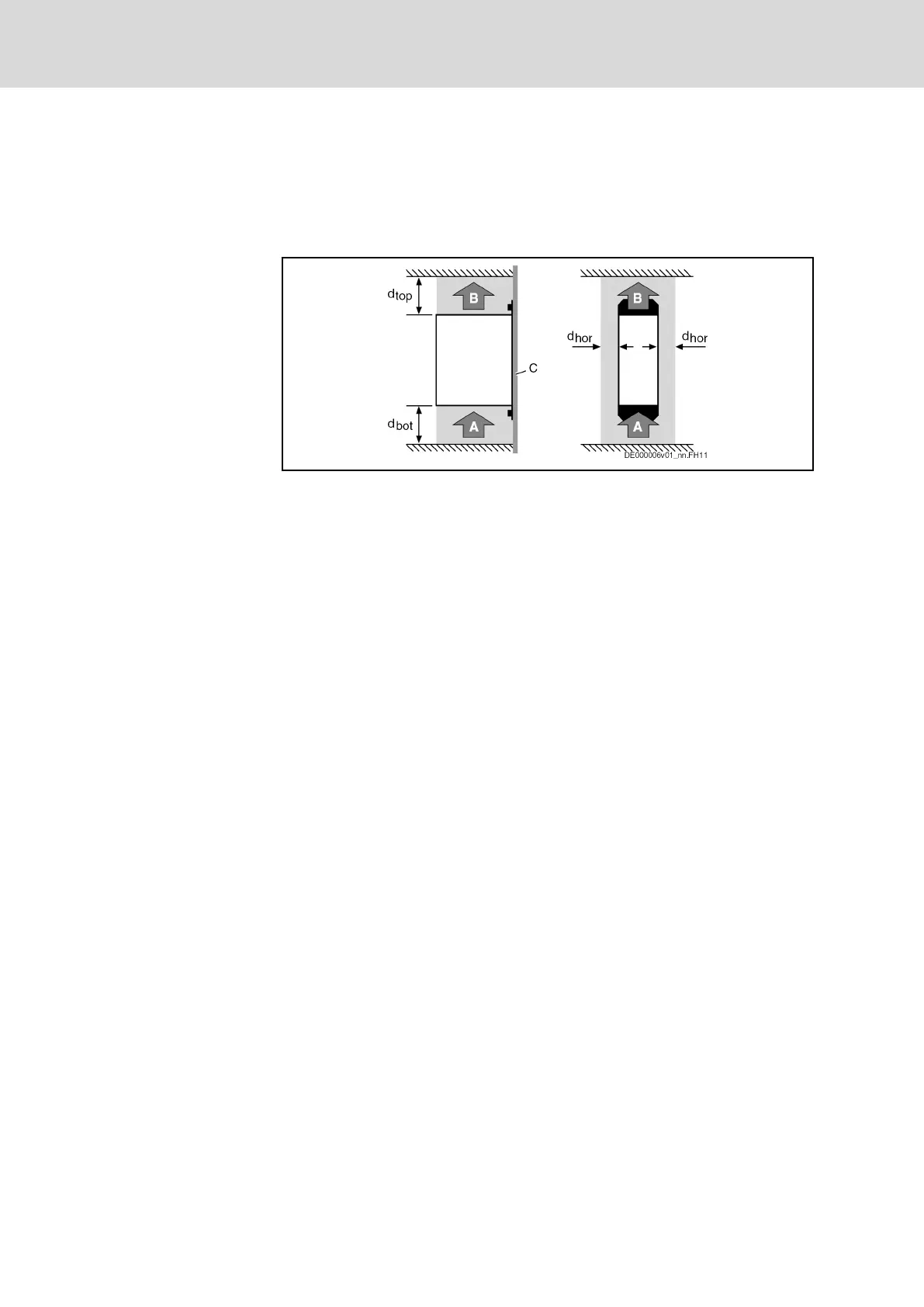

Distances
A Air intake
B
Air outlet
C Mounting surface in control cabinet
d
top
Distance top
d
bot
Distance bottom
d
hor
Distance horizontal
Fig.3-2: Air Intake and Air Outlet at Device
Bosch Rexroth AG DOK-INDRV*-HMD01******-IT01-EN-P
Rexroth IndraDrive Drive Controllers Power Sections HMD01
24/67
Ratings and Dimensions
