5.2.9 Shield Connection
XS1, Shield Connection Control Lines
Property damage due to temperatures higher
than 105 ℃!
NOTICE
Observe the indicated minimum distances!
Above the devices there may only be such materials which
●
are not combustible
● are insensitive to the occurring high temperatures
Always connect the shields with the largest possible metal-to-met‐
al contact surface.

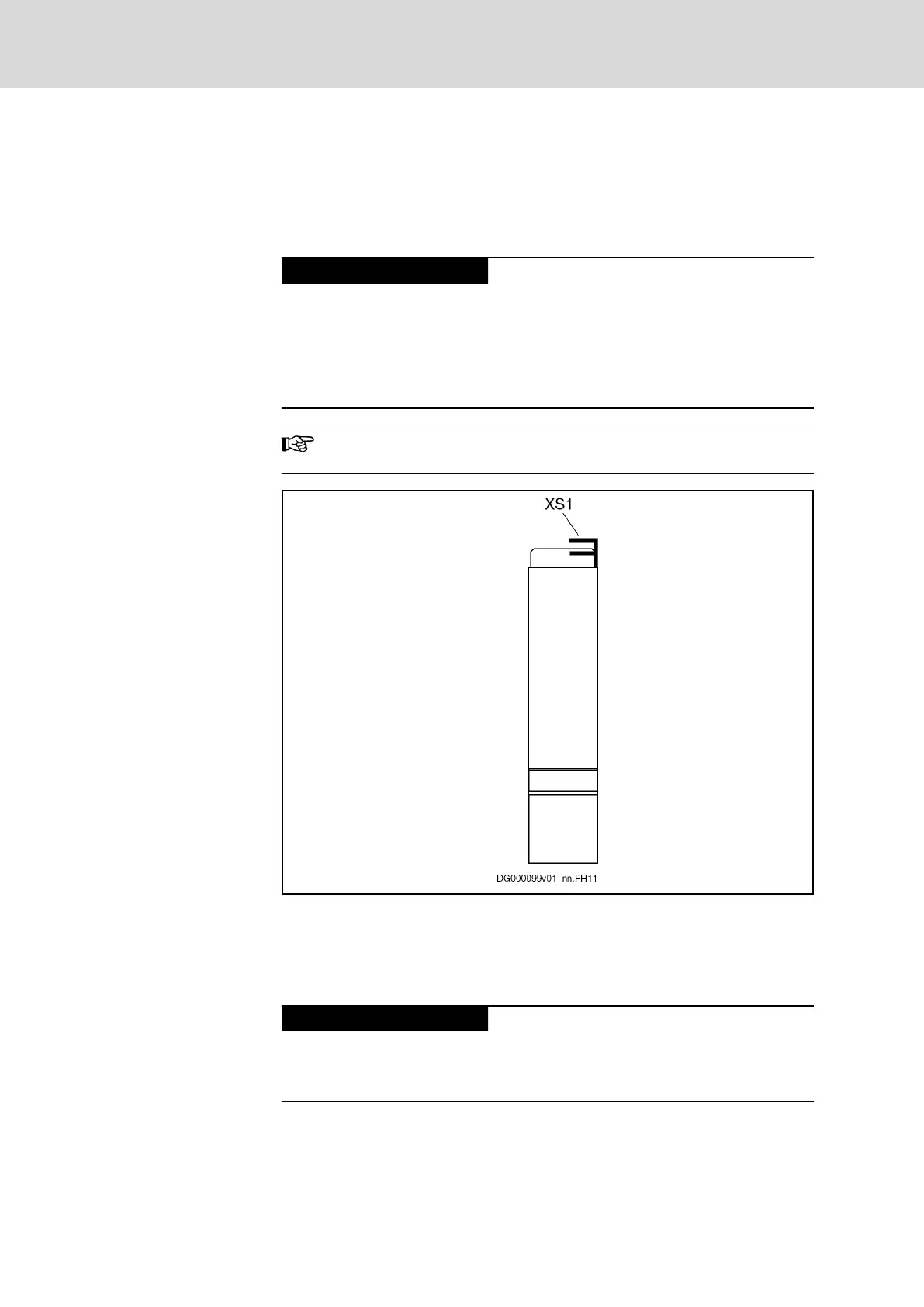

Fig.5-18: Shield Connection XS1 (Control Lines)
Function
Connection point for the shields of lines connected to the control section and
of which the connectors do not have their own shield connection.
XS2, Shield Connection Motor Cable
Risk of damage to the drive controller by too
long screws!
NOTICE
Exclusively use screws of a maximum length of 12 mm for the thread of
shield connection XS2.
The connection consists of an M6 thread and is used for mounting the fixing
device for shield connection of the motor cable.
Bosch Rexroth AG DOK-INDRV*-HMD01******-IT01-EN-P
Rexroth IndraDrive Drive Controllers Power Sections HMD01
42/67
Instructions for Use
