Technical Data of the Connection Point
View Identifica‐
tion
Function
+24V Power supply
Connection to neighboring devices with contact bars from
accessory HAS01.1
0V Reference potential for power supply
Connection to neighboring devices with contact bars from
accessory HAS01.1
Screw connection
M6 thread at device (terminal block)
Unit Min. Max.
Tightening torque Nm 5,5 6,5
Power consumption W P
N3
(see technical data)
Voltage load capacity V U
N3
(see technical data)
Polarity reversal protection Within the allowed voltage range by internal protective diode
Current carrying capacity "looping through" from 24V to 24V, 0V to 0V
(contact bars in scope of supply of accessory HAS01)
With contact bars -072 A 220

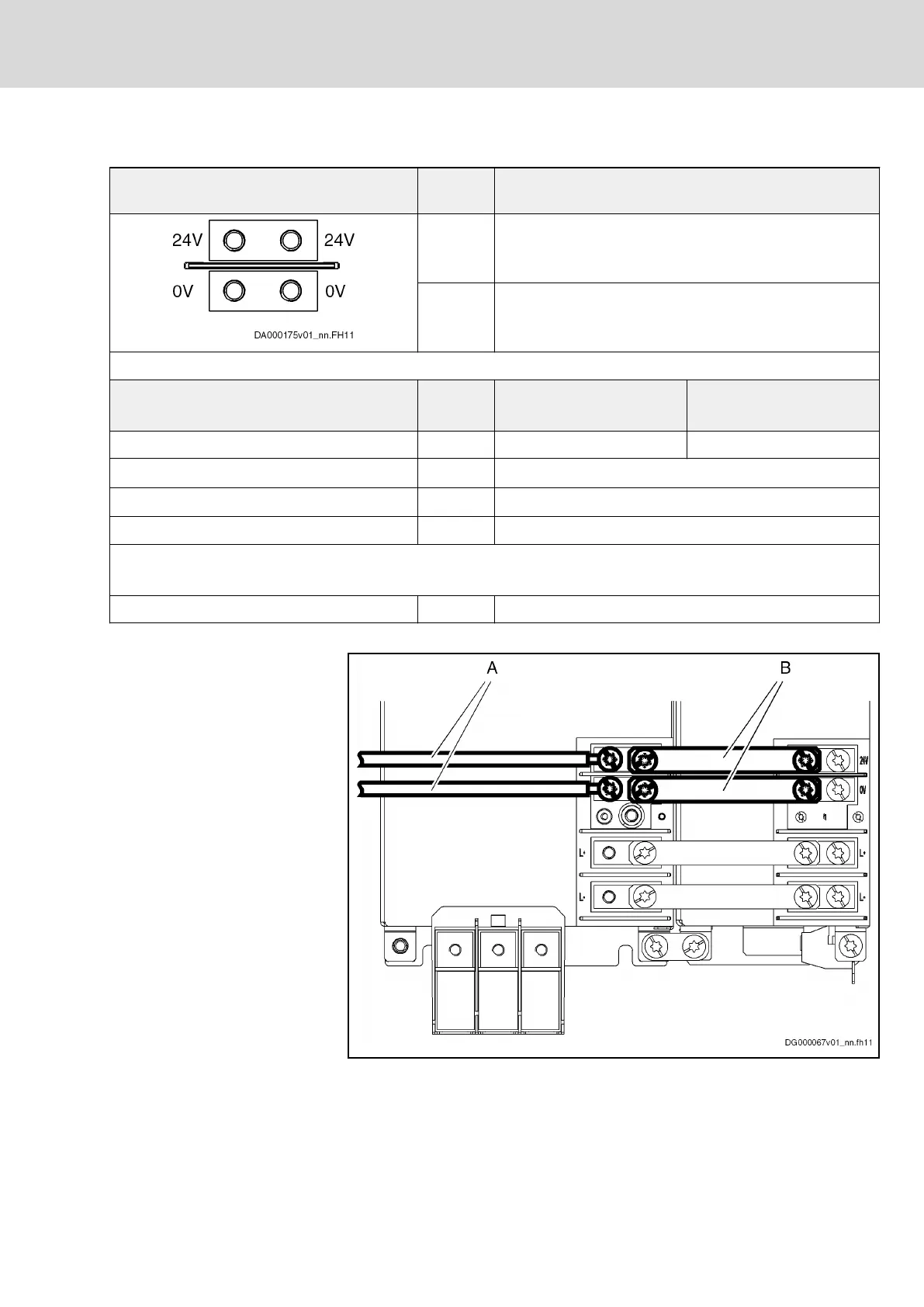

Fig.5-9: Function, Pin Assignment, Properties
Connection Diagram
A Cable (to source of control voltage supply)
B
Contact bars
Fig.5-10: Connection Points and Connections of Control Voltage
Notes on Installation
Requirements on the connection to the 24V supply:
DOK-INDRV*-HMD01******-IT01-EN-P
Rexroth IndraDrive Drive Controllers Power Sections HMD01
Bosch Rexroth AG 37/67
Instructions for Use
