Bosch RF Series - Horizontal (HZ) Units

RF Unit Installation

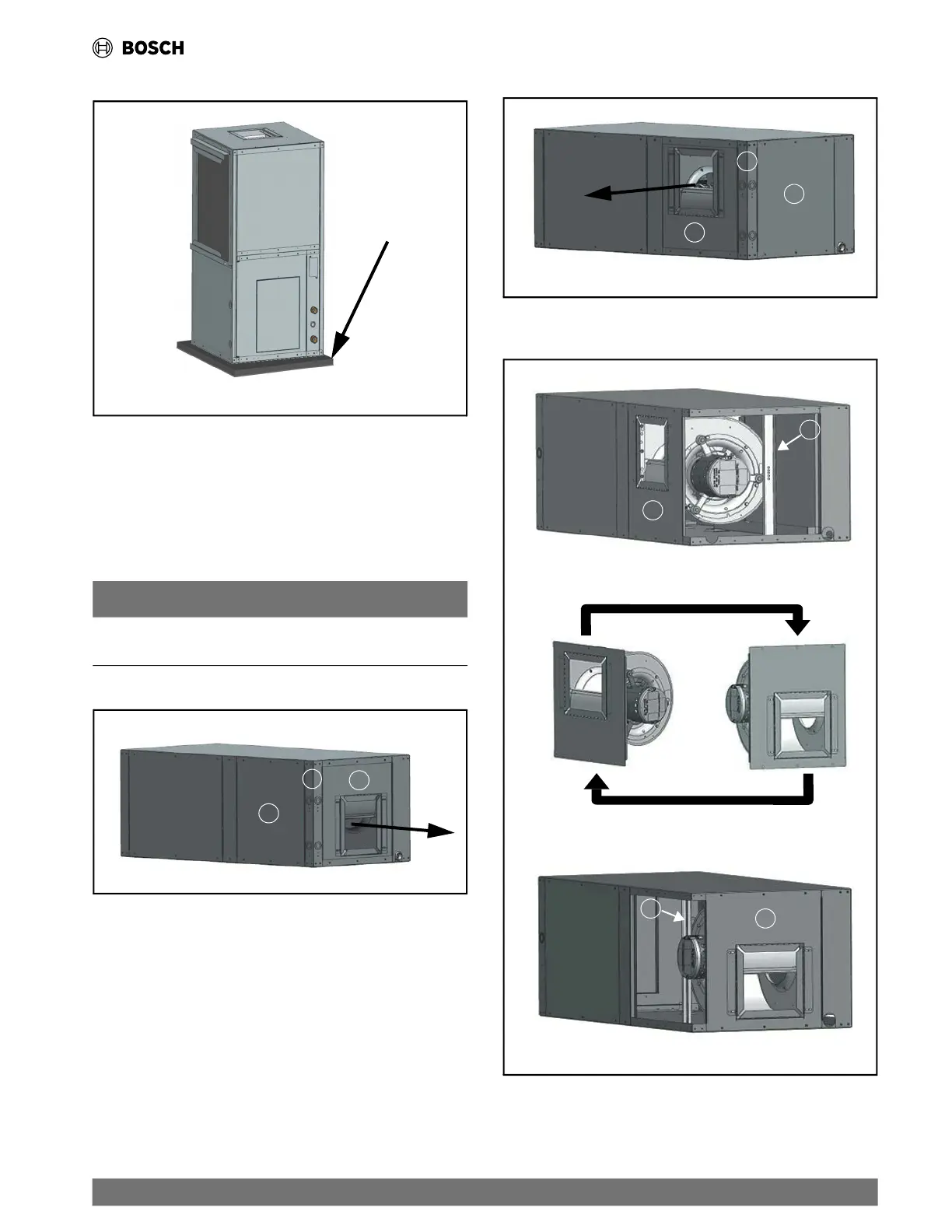

Fig. 2 Vibration Absorbing Pad
Vibration
Absorbing Pad
5.6 Horizontal (HZ) Units
5.6.1 Configuring the Horizontal Supply Air Orientation
The supply air location on RF Series Horizontal units can be field
converted fr
om end blow to straight through or vice-versa.
NOTICE
Blower configuration changes should be done prior to unit
being installed in the final location.
Fig. 3 End-Blow Orientation
C
B
A
Fig. 4 Straight-Through Orientation
A
C
B
Fig. 5 Blower Configuration
D
B
B
D
STRAIGHT
THROUGH
END
BLOW
| 13
RF Series Heat Pumps — 8733980022 (2024/12)
