Bosch RF Series - Two-Stage, Single-Phase, Standard Unit with CA Motor

Wiring Diagrams
21.3 Two-Stage, Single-Phase, Standard Unit with CA Motor

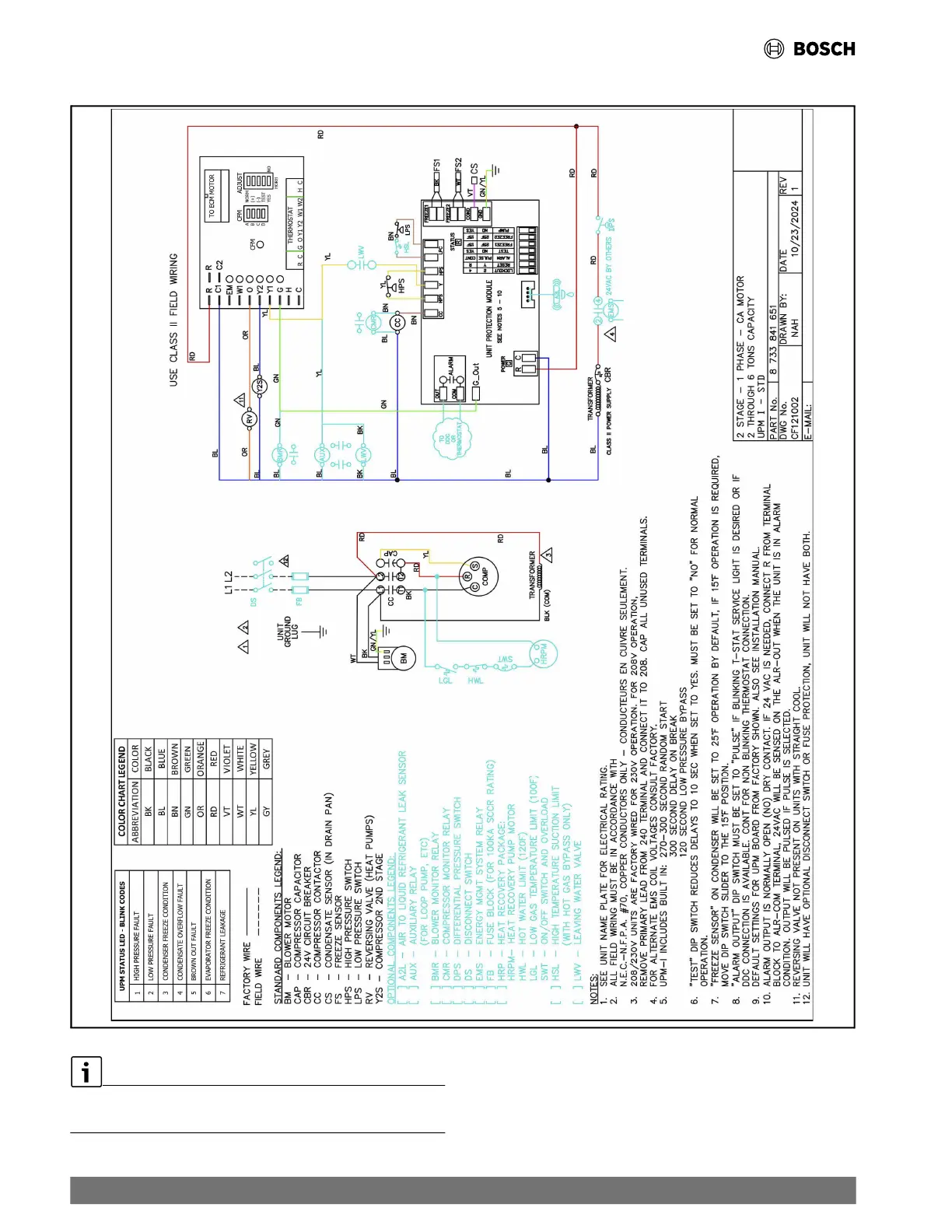

Fig. 30 Two-Stage, Single-Phase, Standard Unit with CA Motor
FOR REFERENCE ONLY Actual unit wiring may vary from this
example. Always refer to the wiring diagram attached to the unit.
70 |
RF Series Heat Pumps — 8733980022 (2024/12)
