88 VPV Vane Pump
REPAIR KITS
SIZE SAE METRIC SAE “P1” METRIC “P1”
45 9 511 230 559 9 511 230 564 9 511 230 576 9 511 230 579
63 9 511 230 562 9 511 230 566 9 511 230 577 9 511 230 580
80 9 511 230 563 9 511 230 567 9 511 230 578 9 511 230 581
100 9 511 230 568 9 511 230 573 9 511 230 582 9 511 230 585
130 9 511 230 571 9 511 230 574 9 511 230 583 9 511 230 586
164 9 511 230 572 9 511 230 575 9 511 230 584 9 511 230 587
SEAL KITS
SIZE PART NUMBER
45-80 9 511 230 544
100-164 9 511 230 547
REF DESCRIPTION QTY
1 Key 1
2 Rotor shaft 1
3 Vane kit 1
4 Port plate, cover side 1
5 Roll pin 4
6 Thrust block kit 1
7 Bearing 2
8 Spacer ring 1
9 Pressure ring 1
10 Port plate, body side 1
Repair kits consists of:
REF DESC., VPV45/80/(VPV100/164) QTY
13 O-ring, ASA-031 / (ASA-035) 2
14 O-ring, ASA-162 / (ASA-265) 1
15 O-ring, ASA-130 / (ASA-229) 1
16 O-ring, ASA-146 / (ASA-146) 1
17 Shaft seal 1
18 O-ring, ASA-229 / (ASA-237) 1
19 O-ring, ASA-110 / (ASA-110) 1
20 O-ring, ASA-111 / (ASA-111) 3
21 O-ring, ASA-143 / (ASA-143) 1
22 O-ring, ASA-157 / (ASA-160) 2
23 Back up ring 2
24 O-ring, ASA-139 / (ASA-152) 2
24 O-ring, ASA-043 / (ASA-043) 1
Viton seal kits consist of:

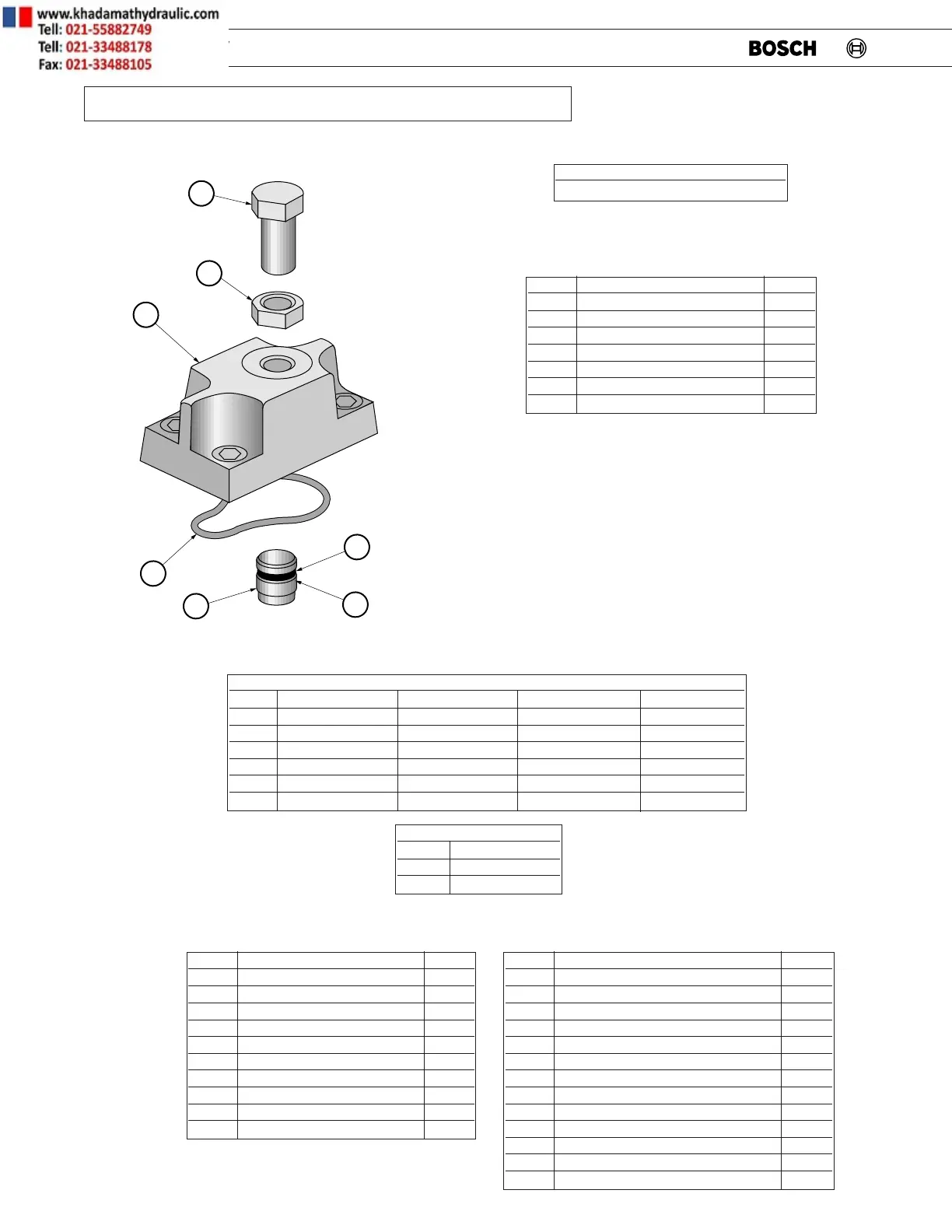

2000 PSI Repair Parts – VPV 45 – 164
28
27
16
29
31
30
26
REF DESCRIPTION QTY
16 O-ring, ASA-146 1
26 Adjusting screw 1
27 Jam nut 1
28 Body 1
29 Piston 1
30 Back up ring 1
31 O-ring, ASA-113 1
Repair kits consists of:
VOLUME CONTROL ASSEMBLY
9 537 232 002
(All o-rings durmoeter rating = 75)
