AIRCRAFT CONNECTORS
35
|
ENG
U174, 5-PIN XLR, AND 6-PIN LEMO
5-pin XLR and 6-pin Lemo aircraft connectors provide the headset with both
aircraft power and intercom audio. U174 connectors provide the headset with only
intercom audio.

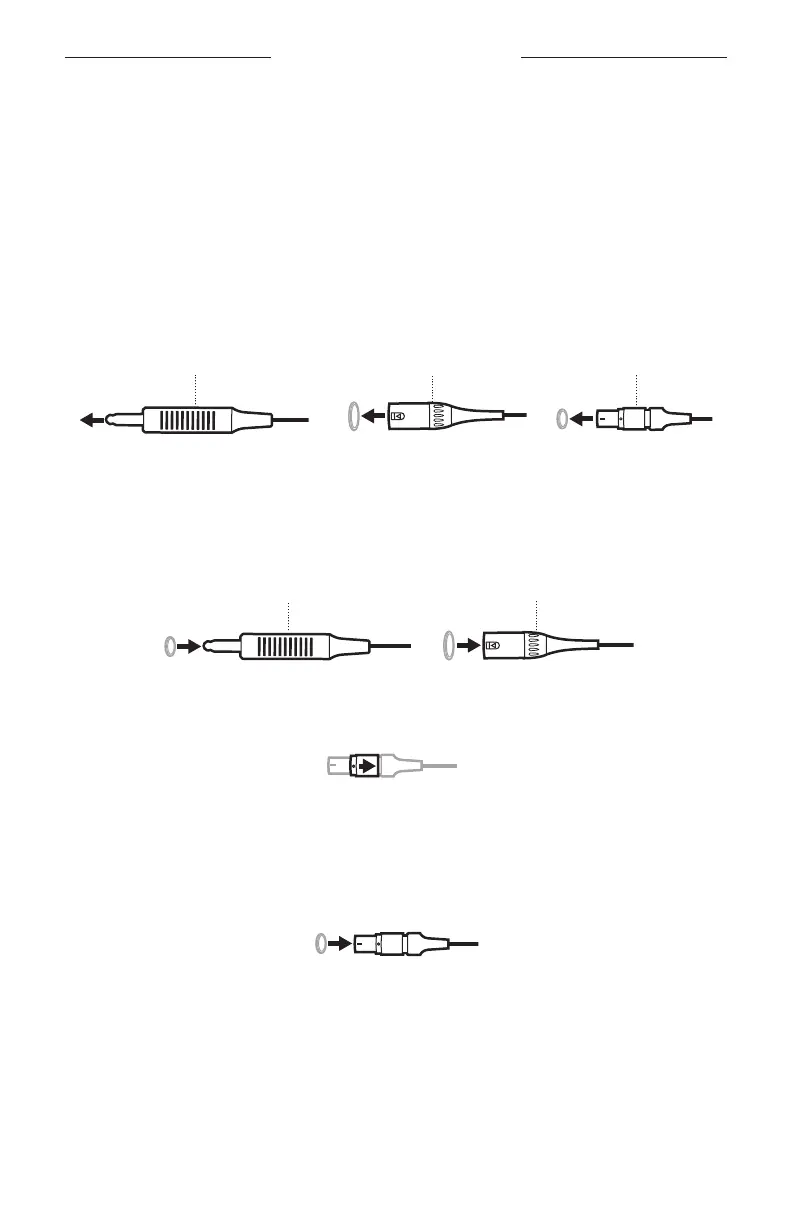

Connect to the aircraft
1. Align the connector with the socket on the aircraft control panel, matching the
narrow bar on the connector with the slot in the socket.
2. Firmly insert the connector into the aircraft control panel.
6-pin Lemo5-pin XLR
U174
Disconnect from the aircraft (U174 and 5-pin XLR)
1. Press the button/latch on the aircraft control panel to release the connector,
if necessary.
2. Gently pull back to remove the connector from the aircraft control panel.
5-pin XLR
U174
Disconnect from the aircraft (6-pin Lemo)
1. Pull back on the sleeve near the end of the connector.
CAUTION: You must pull back on the sleeve before you pull out the connector.
Forcing the connector out will damage the cable and/or the aircraft
control panel.
2. Continue gently pulling back to remove the connector from the aircraft
control panel.

Bose A30 Specifications

General

Type	Aviation Headset
Connectivity	Wired
Battery Life	Up to 45 hours
Power Source	2 AA batteries or aircraft power
Battery Type	AA batteries
Compatibility	Aircraft audio systems
Noise Cancellation	Active Noise Cancellation (ANC)
