Bose A30 User Manual

60
|
ENG

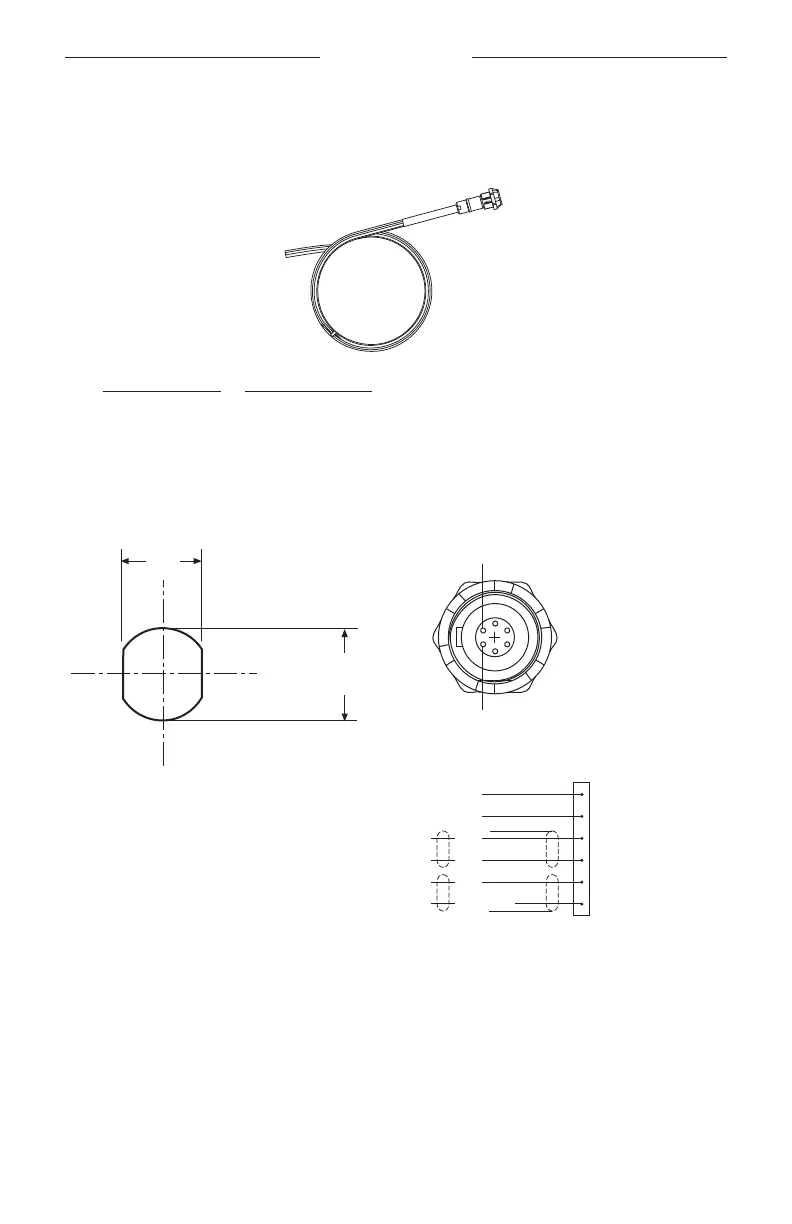

INSTALLATION
MOUNT THE AIRCRAFT PANEL CONNECTOR
The aircraft panel connector is part of the optional 6-pin wiring harness assembly.
Visit www.Bose.comwww.Bose.com or global.Bose.comglobal.Bose.com for information or to purchase.
WARNING: The aircraft panel connector must be mounted by a technician who is
qualified to perform this type of avionics installation for the aircraft you
are using.
Mount the connector into a cutout, using the diagrams below as a guide.
12.5mm
.49"
.55"
14.0mm
1 V+IN
2 GND
3 COMM L
4 COMM R
5 MIC HI
6 MIC LO
BLK/WH
BLK/WH
RED
WHT
BLU
WHT
WHT/BLU
BLK
Pin 6
Pin 1
Aircraft Interface Schematic
Receptacle - Pinout (front view)

Bose A30 Specifications

General

Type	Aviation Headset
Connectivity	Wired
Battery Life	Up to 45 hours
Power Source	2 AA batteries or aircraft power
Battery Type	AA batteries
Compatibility	Aircraft audio systems
Noise Cancellation	Active Noise Cancellation (ANC)
