Bose Panaray 502C Service Manual

51
502A CVT-5 Transformer Assembly Kit Parts List (Figure 24)
ACCESSORY KIT PART LIST

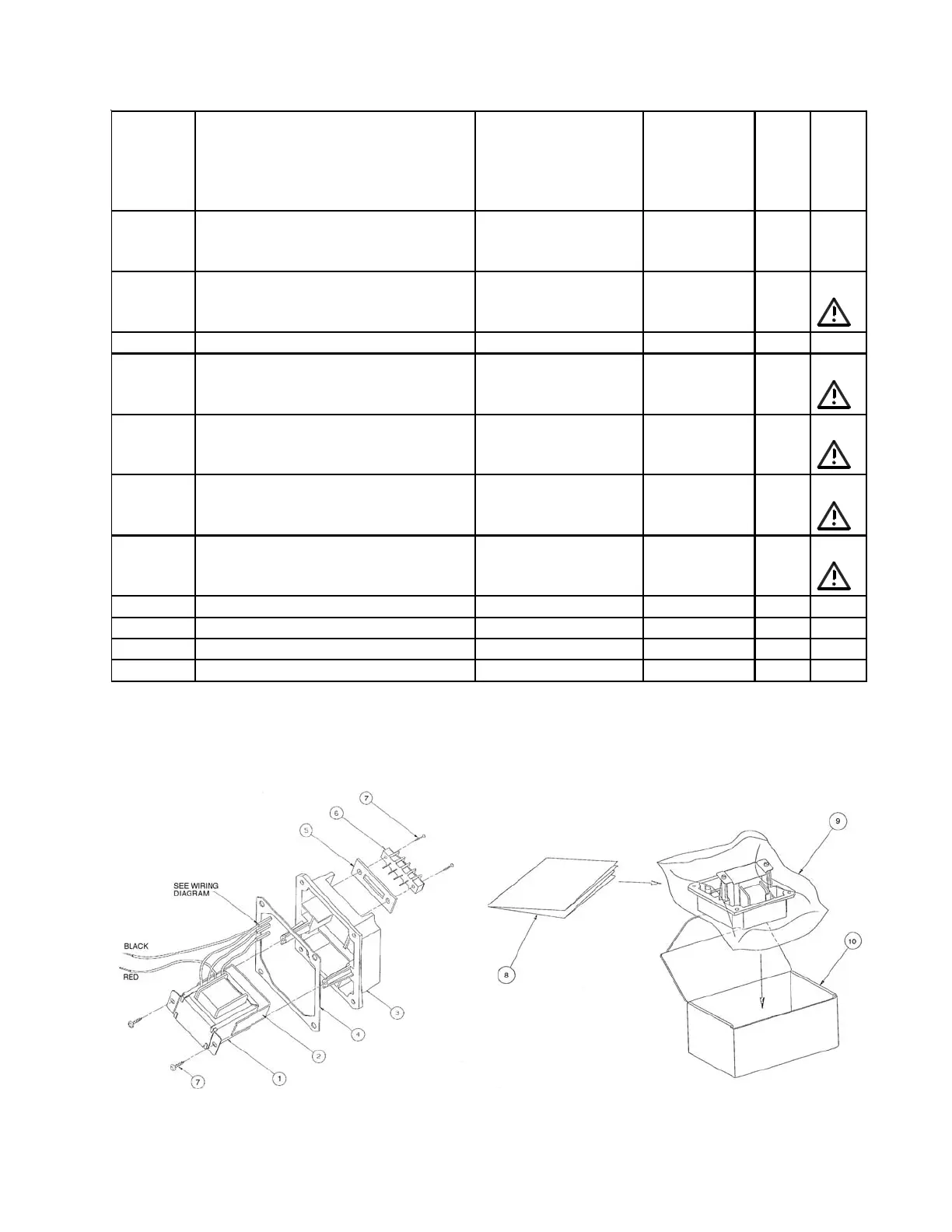

Figure 24. CVT-5 Exploded View and Packaging
Item
Number
Description XLR and Barrier
Version, PC
003841, 019769,
004934, 004935,
004936, 007698
Speakon
®
Version,
PC 040170
and 040171
Qty Note
- CVT-5 XFMR Assy Kit (Gray)
CVT-5 XFMR Assy Kit (White)
Which consists of
007699
007890
040089
040088
1
1 Transformer 143576 172030 1 5
2 Foam Adhesive 119604 119604 N/A
3 Cover-Transformer (Gray)
(White)
142358-01
142358-02
142358-01
142358-02
1 5
4 Gasket-Transformer Cover 143554 143554 1 5
5 Gasket Barrier 146873 146873 1 5
6 Connector- Barrier 148976-04 148976-04 1 5
7 Screw-#8 137527-12 137527-12 4
8 Owners Manual 172164 172164 1
9 Poly bag 173379 173379 1
10 Carton 173380 173380 1
*Product code 040170 (black) and 040171 (white) are a RoHS compliant version of
the 502A. Only RoHS compliant parts listed in the above chart can be used in the
502A with product code 040170 and 040171.
1
