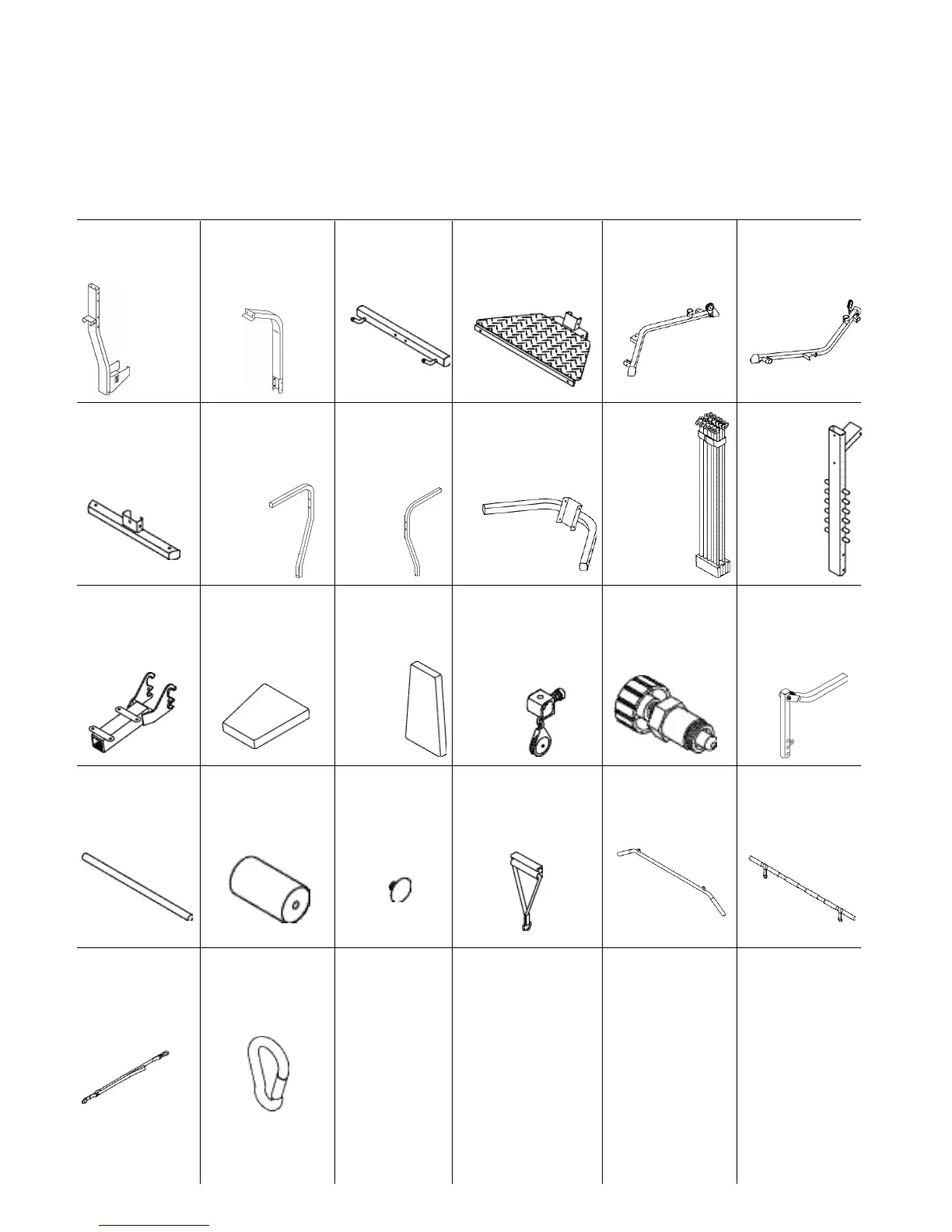

Bowflex Xtreme - Assembly Components

Assembly Guide
4
Item #: 1
Qty.: 1
Part #: 11476
Descr: Lower
Lat Tower
Item #: 2
Qty.: 1
Part #: 11480
Descr: Upper
Lat Tower
Item #: 3
Qty.: 1
Part #: 11487
Descr: Lat Cross Bar
Item #: 4
Qty.: 1
Part #: 11402
Descr: Base Frame
Item #: 5
Qty.: 1
Part #: 11421
Descr: Right Frame
Rail
Item #: 6
Qty.: 1
Part #: 11410
Descr: Left Frame
Rail
Item #: 7
Qty.: 1
Part #: 11407
Descr: Rear Cross
Member
Item #: 8
Qty.: 1
Part #: 11469
Descr: Right Pulley
Arm
Item #: 9
Qty.: 1
Part #: 11463
Descr: Left Pulley
Arm
Item #: 10
Qty.: 1
Part #: 11426
Descr: Squat Pulley
Frame
Item #: 11
Qty.: 1
Part #: 10080
Descr: Rod Box
w/ Rods
Item #: 12
Qty.: 1
Part #: 11441
Descr:
Seat
Support
Rail
Item #: 19
Qty.: 2
Part #: 95206
Descr: 3/4” Chrome
Tube
Item #: 20
Qty.: 4
Part #: 50304
Descr: Foam Rollers
Item #: 21
Qty.: 4
Part #: 90218
Descr: 3/4” End
Caps
Item #: P
Qty.: 2
Part #: 90134
Descr: Hand Grip
Item #: 13
Qty.: 1
Part #: 11457
Descr: Seat
Backbone
Item #: 14
Qty.: 1
Part #: 11451
Descr: Seat Bottom
Item #: 15
Qty.: 1
Part #: 11446
Descr: Seat Back
Pad
Item #: 16
Qty.: 6
Part #: 11431
Descr: Slider Pulley
w/ Cable
Assembly
Item #: 17
Qty.: 1
Part #: 10074
Descr: Lock Knob
Item #: 18
Qty.: 1
Part #: 11499
Descr: Leg Extension
Backbone
Item #: Q
Qty.: 1
Part #: 11491
Descr: 50” Bent Lat
Bar
Item #: R
Qty.: 1
Part #: 90650
Descr: Squat Bar
Item #: S
Qty.: 1
Part #: 10073
Descr: Squat Strap
Item #: T
Qty.: 4
Part #: 50334
Descr: Snap Hook
Bowflex Xtreme Assembly Components
