Bowflex Xtreme - Assembly Hardware

Assembly Guide
5
Item #: D
Qty.: 2
Part #:11453
Descr:5/16" X 2
1/2" Button Head
Screw
Item #: E
Qty.: 2
Part #:11468
Descr:3/8" X
21/2" Button
Head Screw
Item #: C
Qty.: 2
Part #:11472
Descr:3/8 X 1"
Button Head
Screw
Item #: A
Qty.: 4
Part #:11450
Descr:5/16 X 3/4"
Button Head
Screw

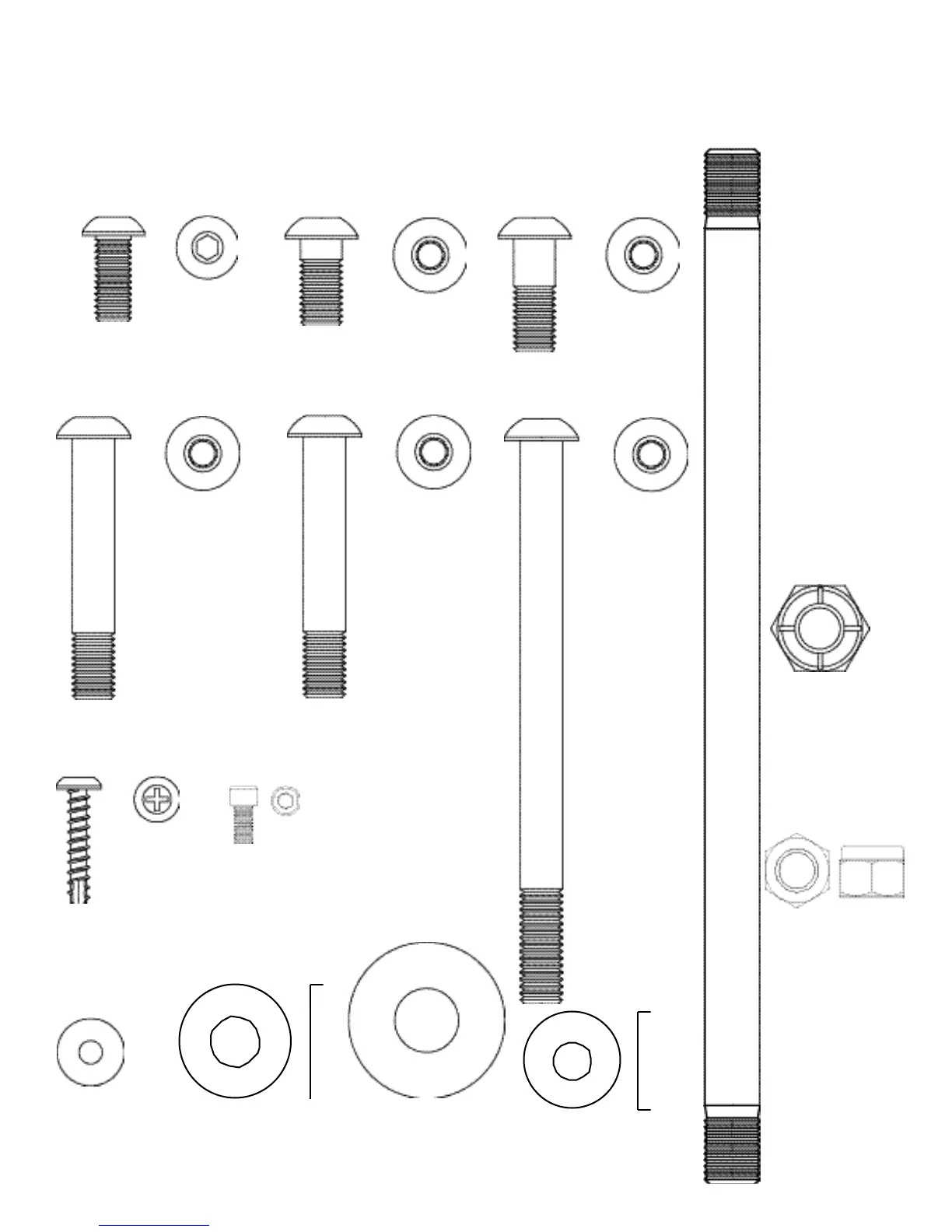

Note: Drawings are actual size
Item #:K
Qty.: 26
Part #: 90138
Descr: 3 / 8"
Fl at Wa s h e r
Item #:L
Qty.: 4
Part #:11448
Descr: 1 / 2"
Fl at Wa s h e r
Item #: M
Qty.: 6
Part #:80106
Descr: 5 / 1 6" Fl at Wa s h e r
Item #: O
Qty.: 1
Part #:90196
Descr: 3/8" Nyloc
k Nu
Item #: N
Qty.: 4
Part #:11449
Descr: 1/2" Nyloc
k Nu
Item #: B
Qty.: 20
Part #:11465
Descr: 3 / 8" x 3/4"
Button Head
S c rew
Item #: H
Qty.: 2
Part #:10191
Descr: 1 / 4" x 1/2"
C ap Screw
Item #: G
Qty.: 3
Part #:10183
Descr: #10 X 1"
S e l f Th re a d i n g
S c rew
Item #: J
Qty.: 3
Part #: 90156
Descr: 1 / 4"
Fl at Wa s h e r
Item #: I
Qty.: 2
Part #: 11515
Descr: 1 / 2" X 11"
Th readed Stud
Item #: F
Qty.: 1
Part #:11466
Descr: 3 / 8" X 5"
Button Head Screw
Bowflex Xtreme Assembly Hardware
