Bowflex Xtreme - Step 7 Install Slider Pulleys; Step 8 Secure Pulley Arms

Assembly Guide
9

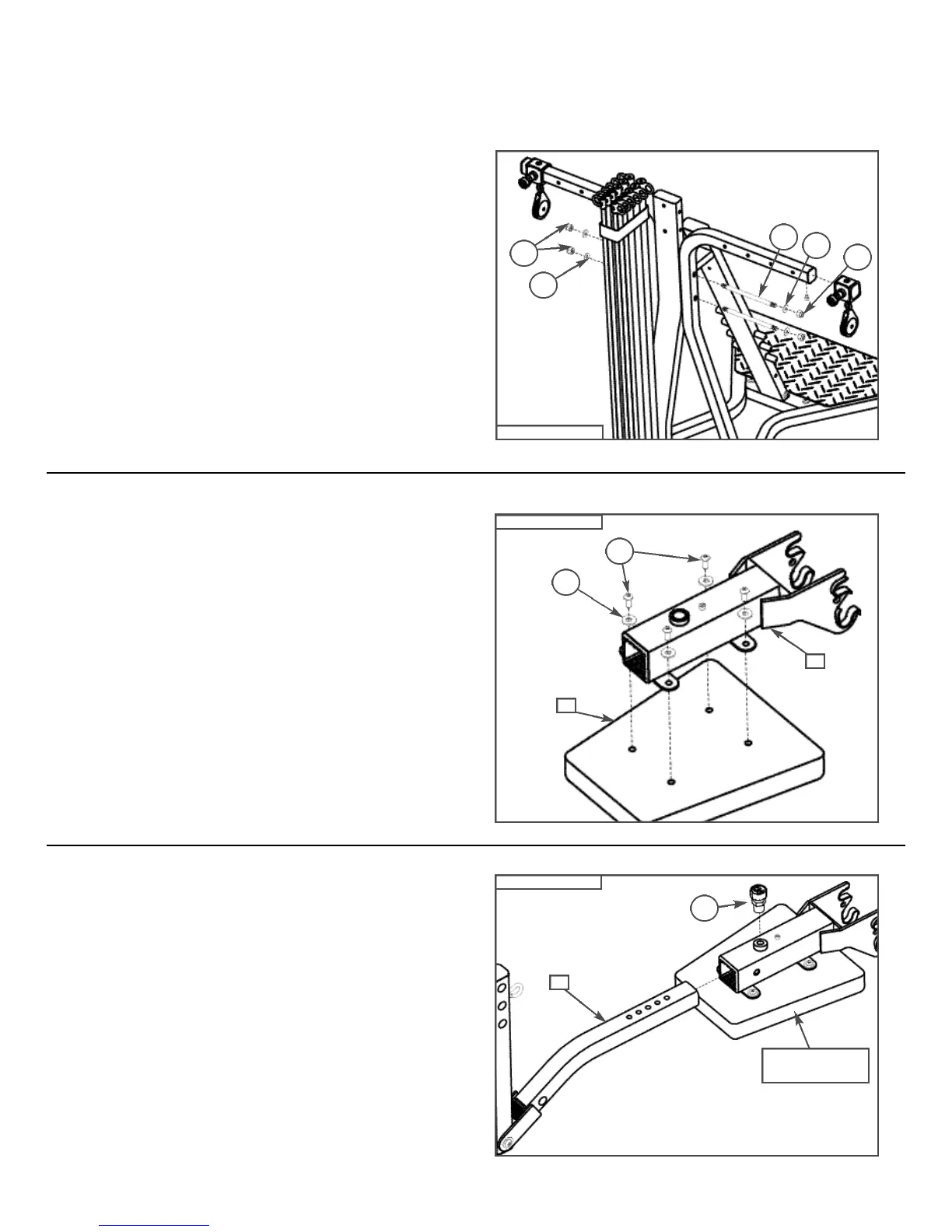

Step 7: Secure the Pulley Arms
Locate the following items:
• (2) 1/2" X 11" Threaded Studs (Item #I)
• (4) 1/2" Washers (Item #L)
• (4) 1/2" Nylock Nuts (Item #N)
Align the remaining two slotted holes on the Right and Left
Pulley Arms (Items #8 and#9) with the Lower Lat Tower.
Place (2) 1/2" Washers (L) over the end of (2) 1/2" X 11"
Threaded Studs (I) - one washer per stud. Insert studs through
both Pulley Arms and the Lat Tower, and then place one more
washer over the end of each stud as shown in Figure G.
Secure using (4) 1/2" Nylock Nuts - one on each stud end.
Step 8: Attach the Seat Bottom to the Seat Backbone
Locate the following items:
• Seat Backbone (Item #13)
• Seat Bottom (Item #14)
• (4) 5/16" X 3/4" Button Head Screws (Item #A)
• (4) 5/16" Washers (Item #M)
Turn the Seat Bottom (Item #14) upside down (holes upward),
and place the Seat Backbone (Item #13) over the Seat Bottom.
Place (4) 5/16" Washers (M) over the end of (4) 5/16" X 3/4"
Button Head Screws (A) - one washer per screw. Tightly affix the
Seat Backbone to the Seat Bottom as shown in Figure H.
If you purchased the Leg Extension,install it in Step 8a & 8b. If you
did not purchase the Leg Extension,proceed to Step 9
Step 8a: Install the Leg Extension (Optional Attachment)
Locate the following items:
• Lock Knob (Item #17)
• Leg Extension Assembly (Item #18)
Turn the Seat (assembled in Step 8) upside down. Insert the Leg
Extension Assembly (Item #18) into the open end of the Seat
Backbone, and line up one of the holes from the leg extension with
the hole in the backbone - and adjust for your height.
Screw the Lock Knob (Item #17) into the hole on the backbone,
as shown in Figure I to secure the Leg Extension into place.
NOTE:Leg Extension may be adjusted during workout to best
suit your height and personal preferences.
Figure H
A
M
14
13
Figure G
L
N
I
L
N
Figure I
17
Seat w/
Backbone
18
