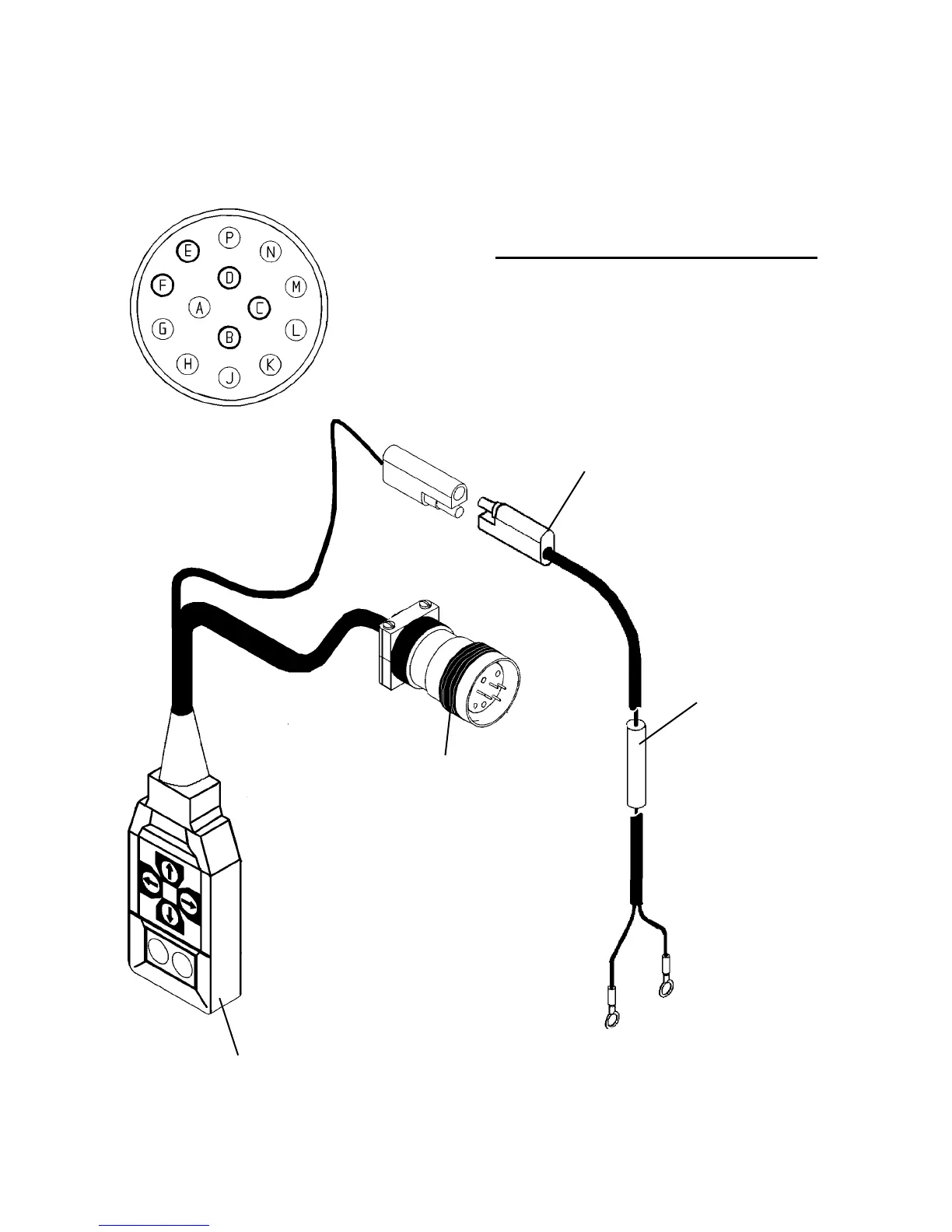

CONTROL BOX ASSEMBLY
9726 7-25-14-5
OPTIONAL ELELCTRICAL CONTROL BOX ASSEMBLY #104368
(USE WITH WIRING HARNESS #101096)
DEUTSCH CONNECTOR PIN DETAIL
B = BLACK (GROUND)
C = DARK GREEN (SWING - LEFT)
D = BROWN (SWING - RIGHT)
E = RED (LIFT - DOWN)
F = YELLOW (LIFT - UP)
DEUTSCH
CONNECTOR
#102341
CONTROL HANDLE WITH CONNECTORS
#17173
POWER CONNECTION
30 AMP
FUSE
TO SKID-STEER
