Bradco SG30 - Electrical Schematic (Continued)

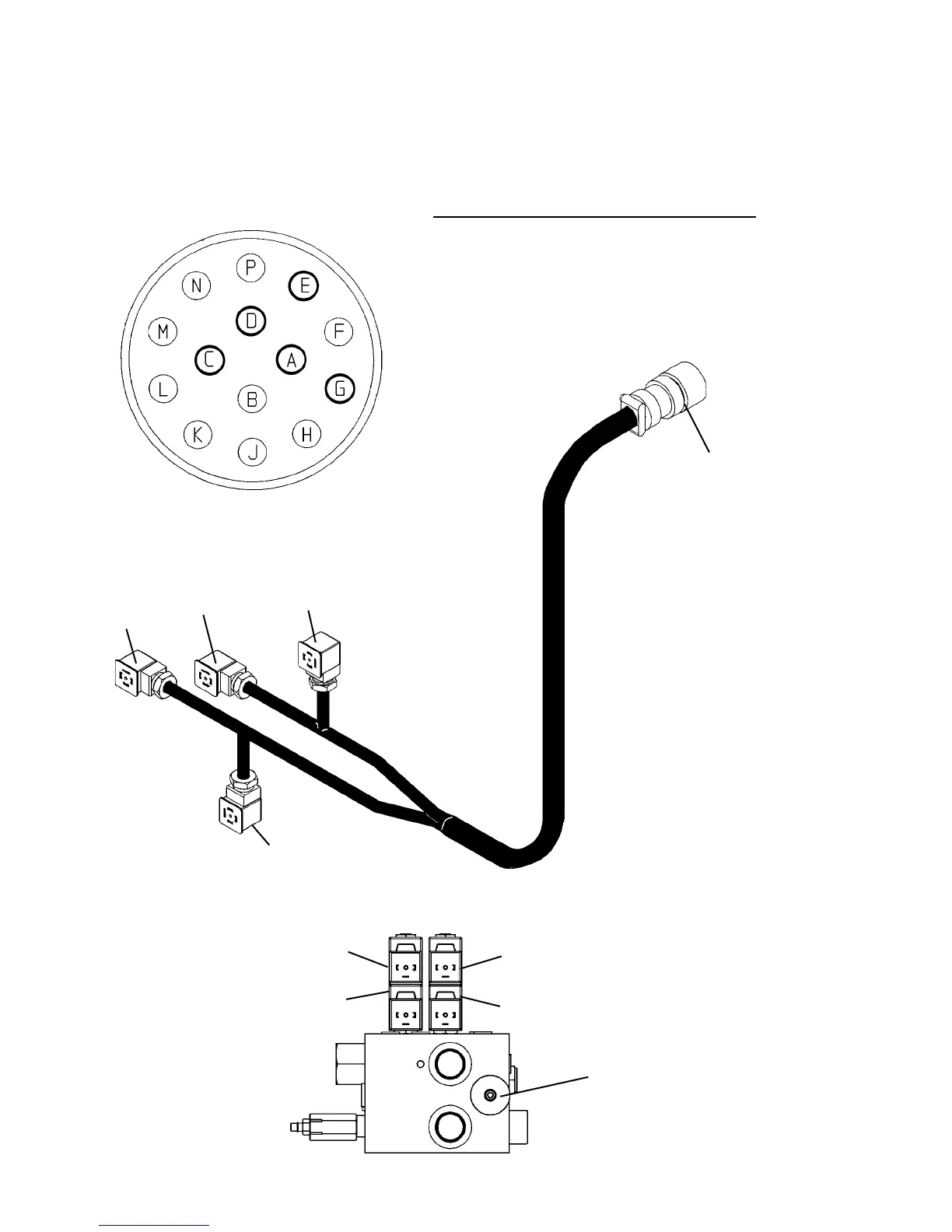

ELECTRICAL SCHEMATIC
12860 7-25-14-2
WIRING HARNESS #108036
DEUTSCH CONNECTOR PIN DETAIL
A = BLACK (GROUND)
C = DARK GREEN (SWING - LEFT)
D = BROWN (SWING - RIGHT)
E = YELLOW (LIFT - UP)
G = RED (LIFT - DOWN)
DEUTSCH
CONNECTOR
D
C
G
E
D
C
G
E
CYLINDER SPEED
CONTROL KNOB
CONTROL VALVE
62
75578
