Automation Guide Process Flow and Wiring Tables
100-214-273 Rev. 1 23

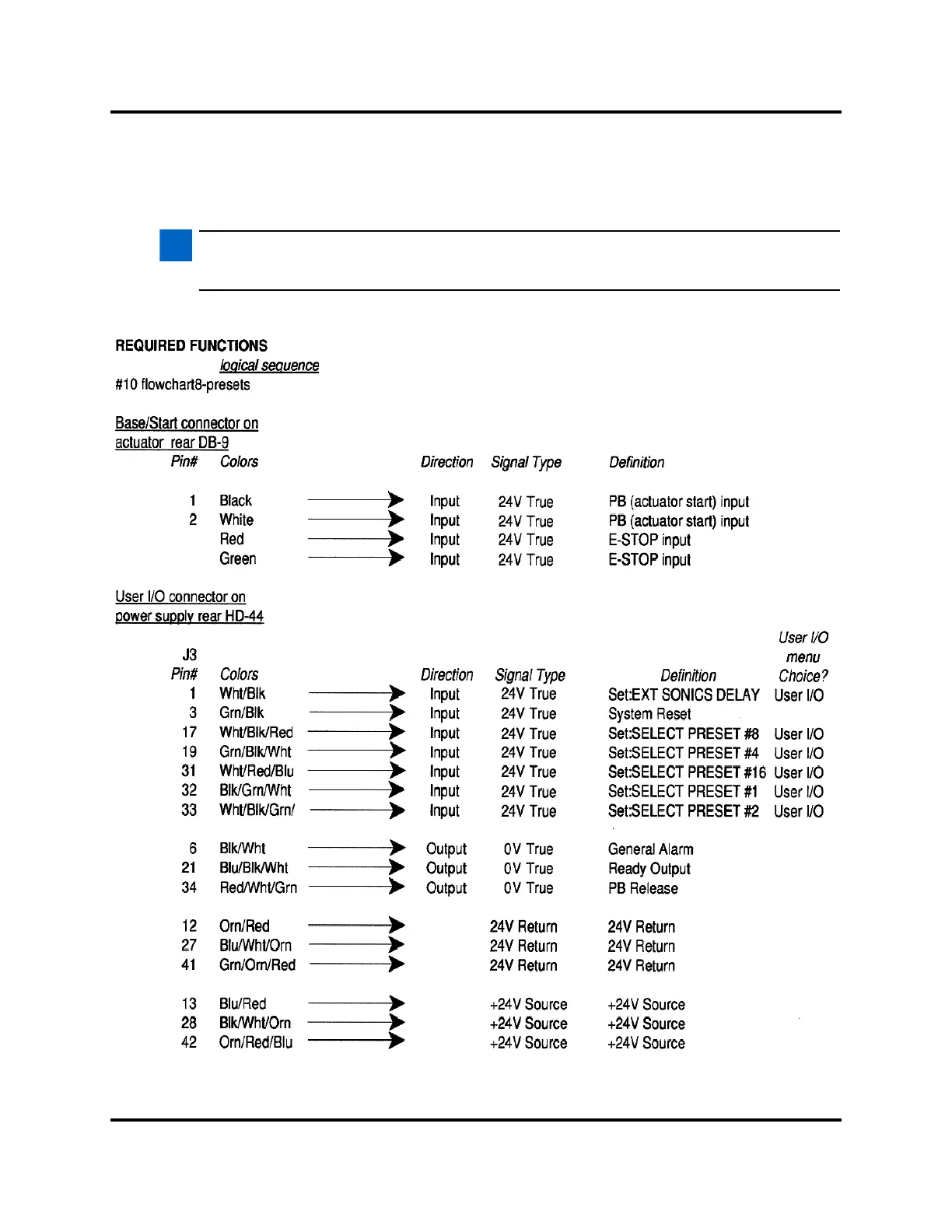

6.6.2 Wiring Table, Process Flow 6, Required Functions: Logical Sequence
3
4
NOTE
i
All voltages shown in this manual are direct current (DC) unless otherwise noted
