Automation Guide Frequently Asked Questions (FAQ)
100-214-273 Rev. 1 45

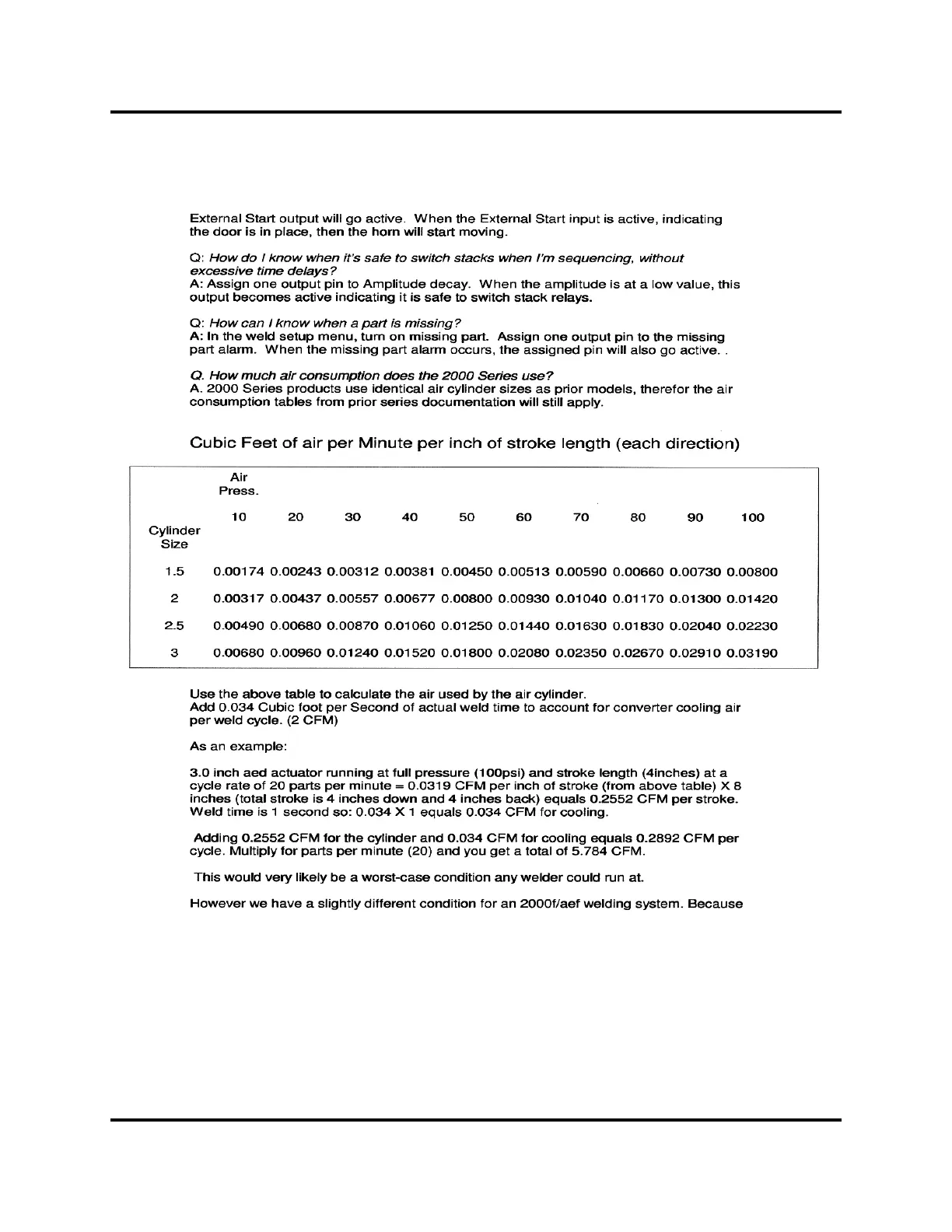

the pneumatics are used as differential mode of operation, I would suggest to always use the
100 psi values from the above
table to be on the conservative side for sizing airflow, rather
than on the actual force values. S
till add the same converter cooling values (0.034) as in the
prior example.
