133
8. BRAKE
• Check the brakes to avoid one-sided
braking. Otherwise, there is a risk of acci-
dent.

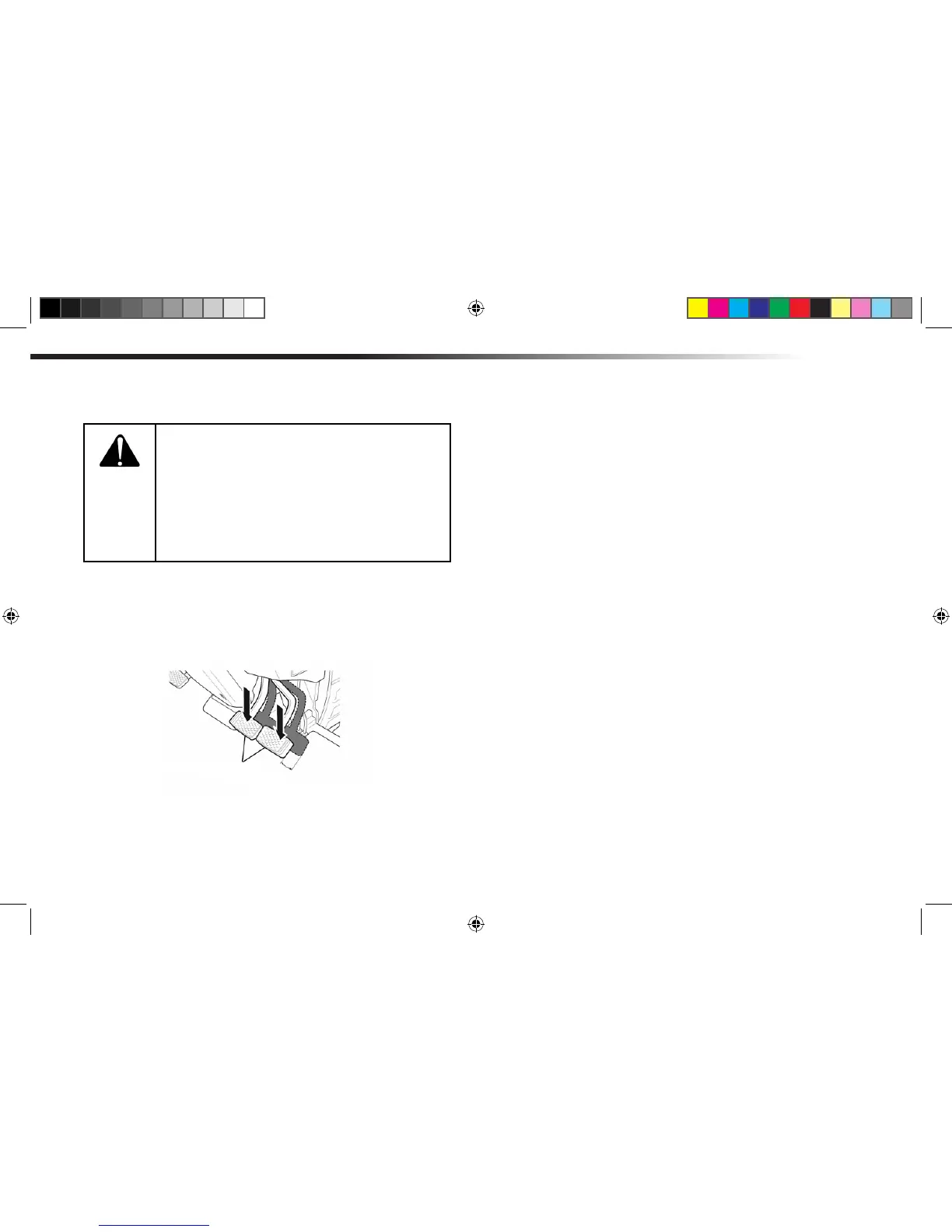

• If the extent of free play is different be-
tween the two brakes pedals, one-sided
braking will occur. Make sure that the free
play of both brake pedals is the same.
WARNING
• In this case, the free play of the brake pedal is
0.2~0.4 in [5~10mm]
• Adjust both of the brake pedals
[How to adjust brake free play]
1) Remove dashboard
2) Loosen xing nut.
3) Adjust stopper bolt so that the gap between bolt head
and brake pedal arm is 0~0.02in [0~0.5mm].
4) Tighten the xing nut.
PERIODIC MAINTENANCE & ADJUSTMENT
