59

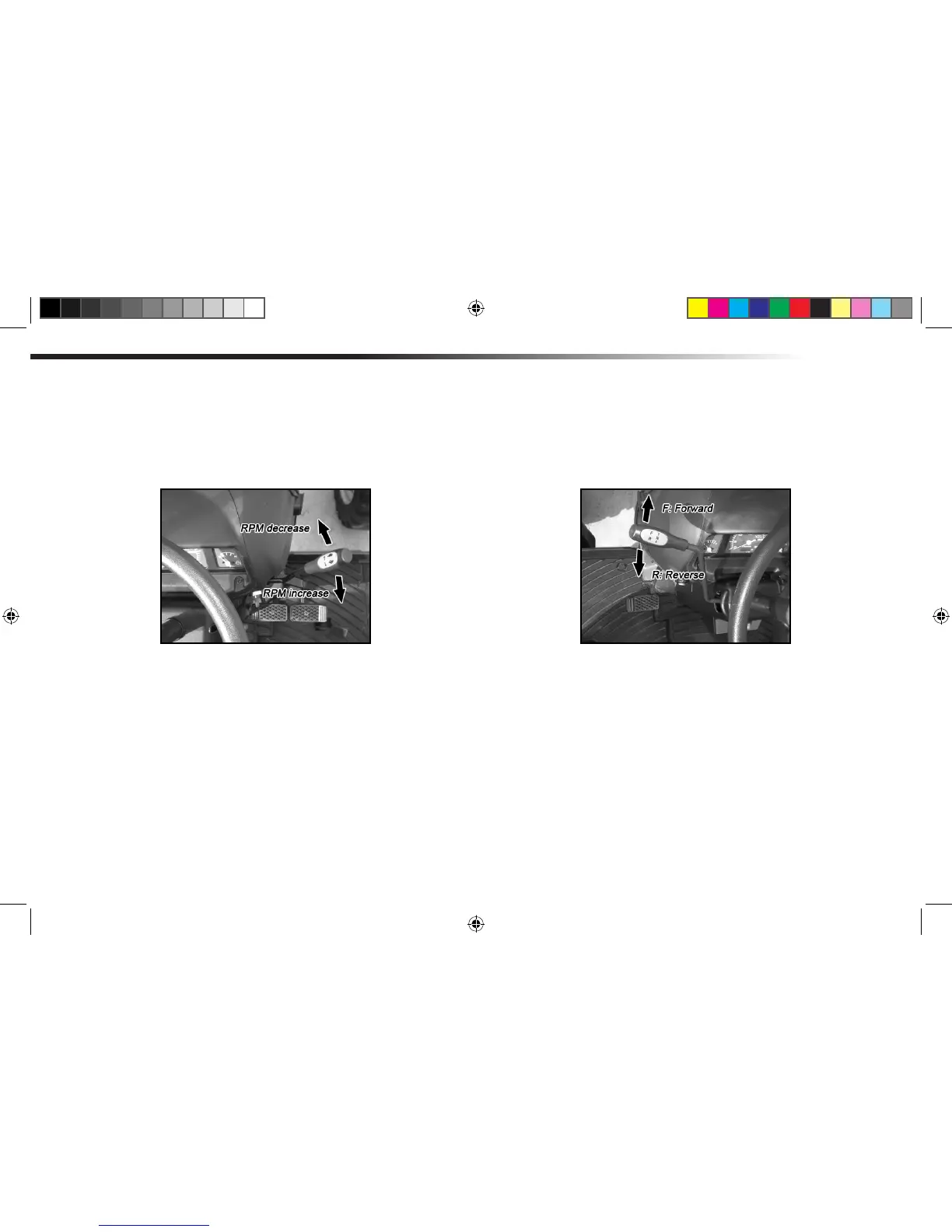

2. ACCELERATOR LEVER
It is used to make the engine run faster or slower. It is
also used when working at a constant speed.
It is used for shifting between “forward” and “reverse”
drive. When shifting the gear, depress the clutch fully.
3. F/R SHUTTLE LEVER
FUNCTIONS
[Precaution]
For safety, when shifting from “forward” to “reverse” or
from “reverse” to “forward”, put the lever in the “neutral”
position and wait for the tractor to stop moving before
shifting the gear to the opposite direction. To ensure
safety, the lever must rst be pulled upward for shifting to
another position.
20R OPERATORS MANUAL (030712).indd 59 3/8/2012 4:04:11 PM
