Branson 20R series - Implement Attachment and Adjustment

• • •
98
INSTALLING 3POINT LINK
a) Attach the lower link to the link hook and insert pin
into hook.
b) Connect Check chain to bracket & Lift link mounting
hole and adjust length.
Refer to instruction of implement for adjusting swing
clearance.

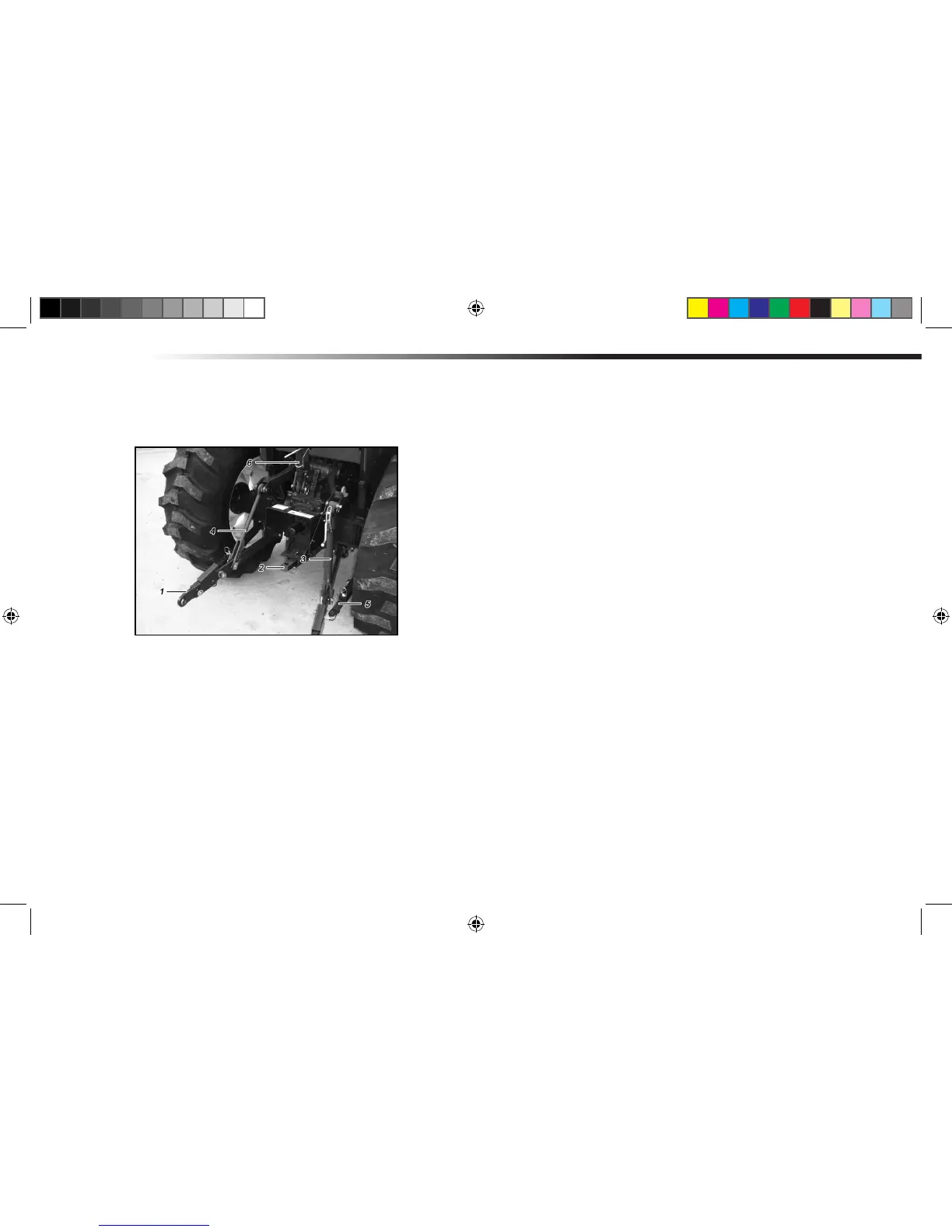

1 : LOWER LINK
2 : DRAW BAR
3 : LIFT LINK (RH)
4 : LIFT LINK (LH)
4 : CENTER LINK
5 : STABILIZER LINK
OPERATIONS & WORK
