99

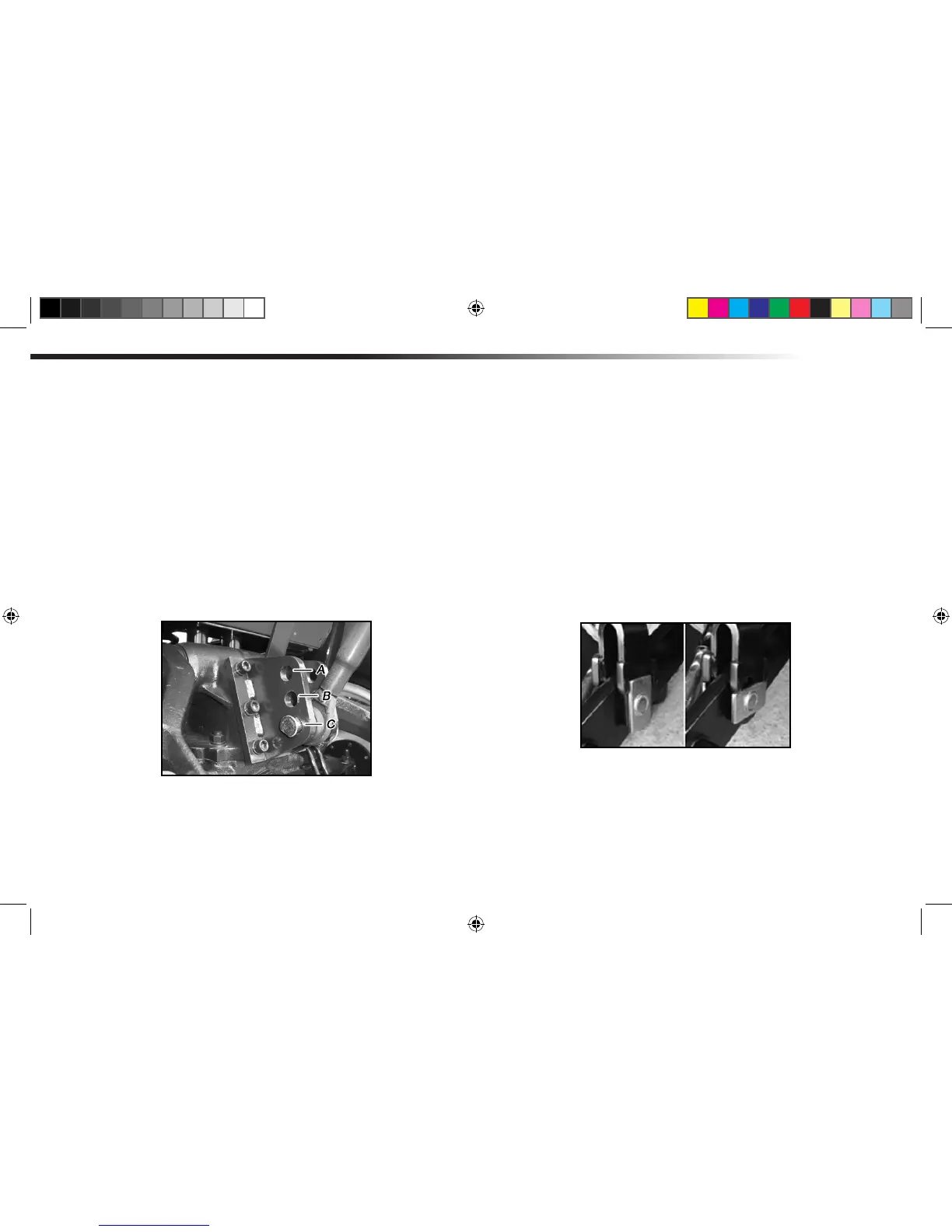

c) There are 3- holes in top link mounting bracket
Top link needs to be moved from (A) to (C) as followed.
• The Position ‘A’ allows the minimum pressure.
• The Position ‘B’ is standard.
• The Position ‘C’ allows the maximum pressure.
d) Adjusting for vertical oat
Depending on the position of the steel plate, lift links can
be adjusted to allow for vertical oat or to lock out oat.
Note: May be damage to the screw thread when center
link is excessively, turned over the adjustment range.
OPERATIONS & WORK
20R OPERATORS MANUAL (030712).indd 99 3/8/2012 4:04:16 PM
