ENGLISH - 9

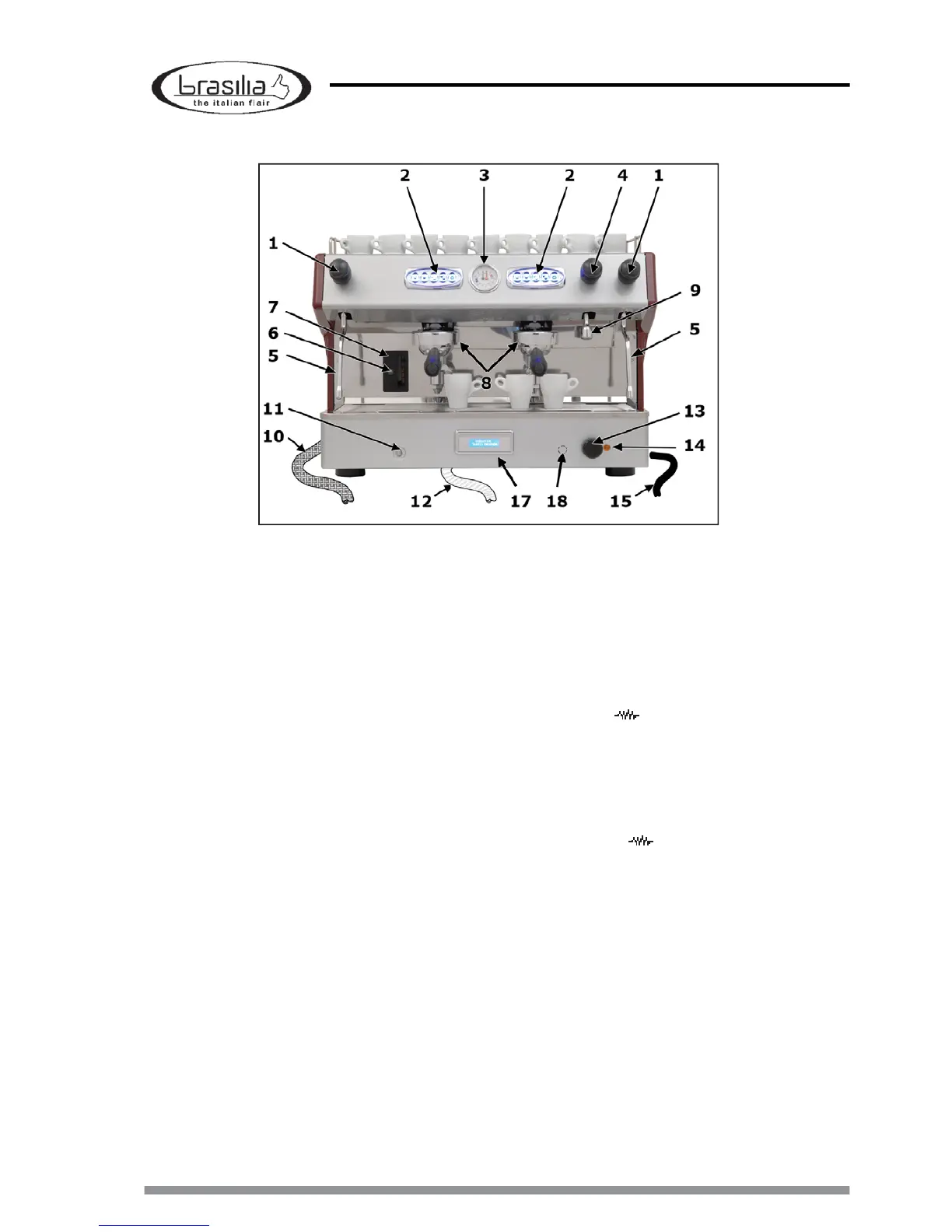

PARTS DESCRIPTION
1 STEAM TAP KNOB: To activate steam
dispensing.
2 TOUCH KEY PAD (Versions DIGIT): To
select beverages and for programming.
3 MANOMETER: In the top part the boiler
pressure is shown (correct value 1-1.3
bars). At the bottom the operating pressure
of the pump is shown (correct value 8-9.5
bars).
4 WATER TAP KNOB: To activate water
dispensing.
5 STEAM WAND: For the steam delivery.
6 INLET WATER WARNING LIGHT: The
light comes on when automatic water fi lling
is in operation, when the level is reached
the light goes off.
7 WATER LEVEL INDICATOR: Marks boiler
water level.
8 GROUP WITH FILTERHOLDER: For the
coffee delivery.
9 HOT WATER WAND: For the water deliv-
ery.
10 WATER INLET PIPE: For water supply to
the machine.
11 MANUAL LOADING BUTTON: This button
makes it possible to fi ll in water manually
when the electronic card is not working.
12 DRAIN PIPE: For water discharge into
the drainage basin.
13 ON/OFF SWITCH:
Position OFF: no power to the internal
parts.
Position ON: power to operating electric
parts (including automatic fi lling of water
into the boiler)
Position “
” enables operating of the
boiler resistance for heating the water,
when the resistance is in operation light
is lit up.
14 HEATING-ELEMENT WARNING LIGHT:
Operation is enabled by the On/Off switch
in position “ ”.
It lights when the water heating resistance
is in operation, when the water temperature
set is reached it goes off.
15 POWER CORD: For connecting the ma-
chine to the power supply.
OPTIONAL:
17 DISPLAY: To program and check the
machine function.
18 CUP-WARMER BUTTON: To enable the
heating element of cup-holding tray.
