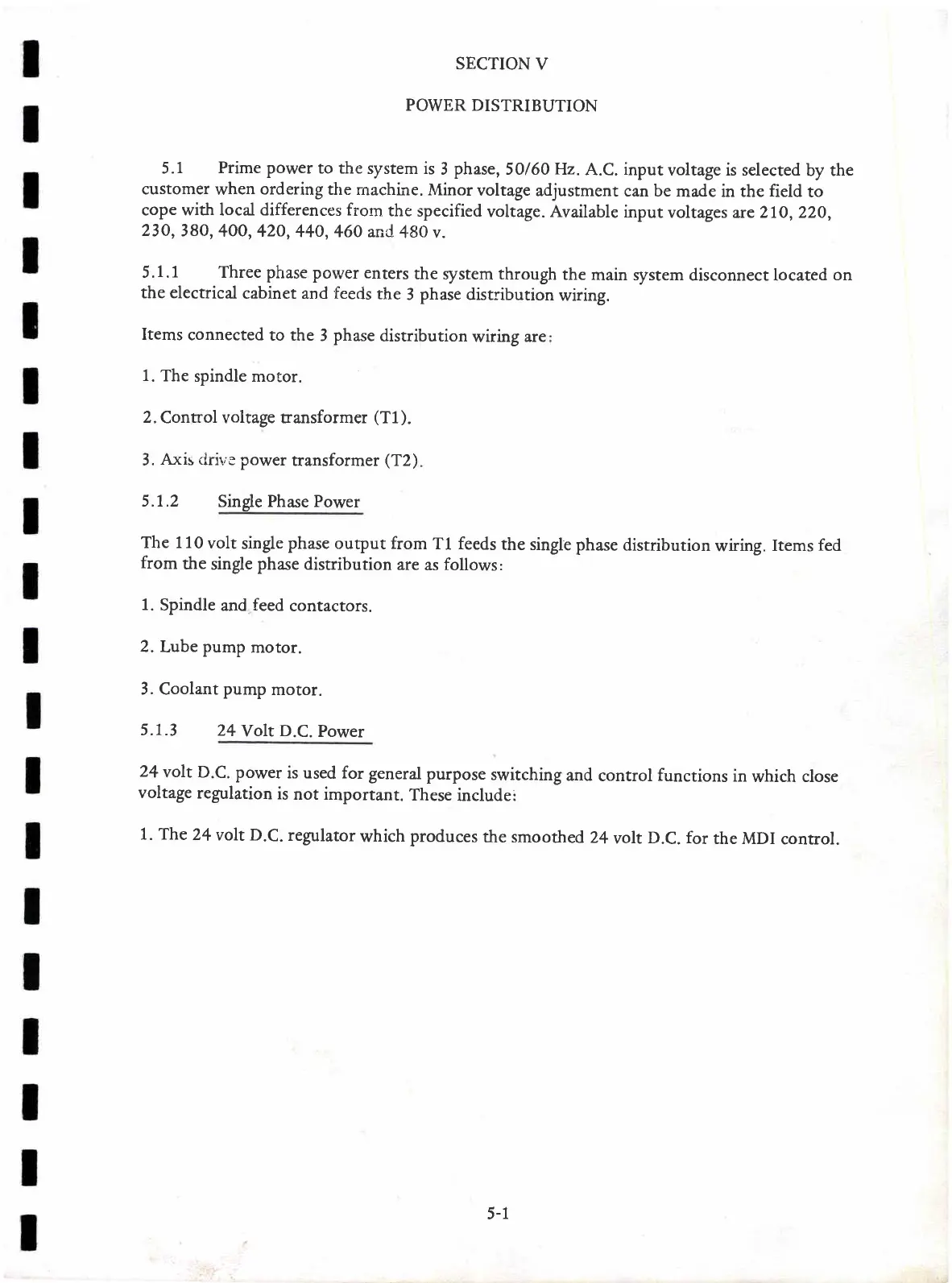

SECTION V
POWER DISTRIBUTION
5.1
Prime power
to the
system is
3
phase,
50160 Hz.
A.C.
input
voltage is selected
by the
customer
when
ordering
the rnachi:ae.
Minor
voltage
adjustment
can be
made in the
field
to
cope with local differences from
the
specified
voltage. Available
input
voltages are 21O,22O,
23O,
38O,
+OO,42O,44O,
460 and
480 v.
5.1.1 Three
ptrase power enters
the
system through
the
main system
disconnect located
on
the electrical
cabinet and
feeds
the
3
phase
distribution
wiring.
Items
connected
to the
3
phase
distribution
wiring
are
1.
The
spindle motor.
2.
Control voltage uansformer
(T1).
3.
Axis ririve
power
transformer
(T2)
5.1..2
Single Phase Power
The 110
volt
single
phase
output from
Tl feeds
the single
phase
distribution
wiring.
Items
fed
from
the
single
phase
distribution
are
as
follows:
1.
Spindle
and
feed
contactors.
2.
Lube
pump
motor.
3. Coolant
pump
motor.
5.7.3
24Yolt
D.C.
Power
24
volt D.C. power
is used for
general
purpose
switching
and
control
functions
in
which close
voltage
regulation
is
not important.
These
include:
1. The
24
volt D.C.
regulator
which produces
the smooth
ed 24
volt
D.C. for
the MDI
control.
5-1
