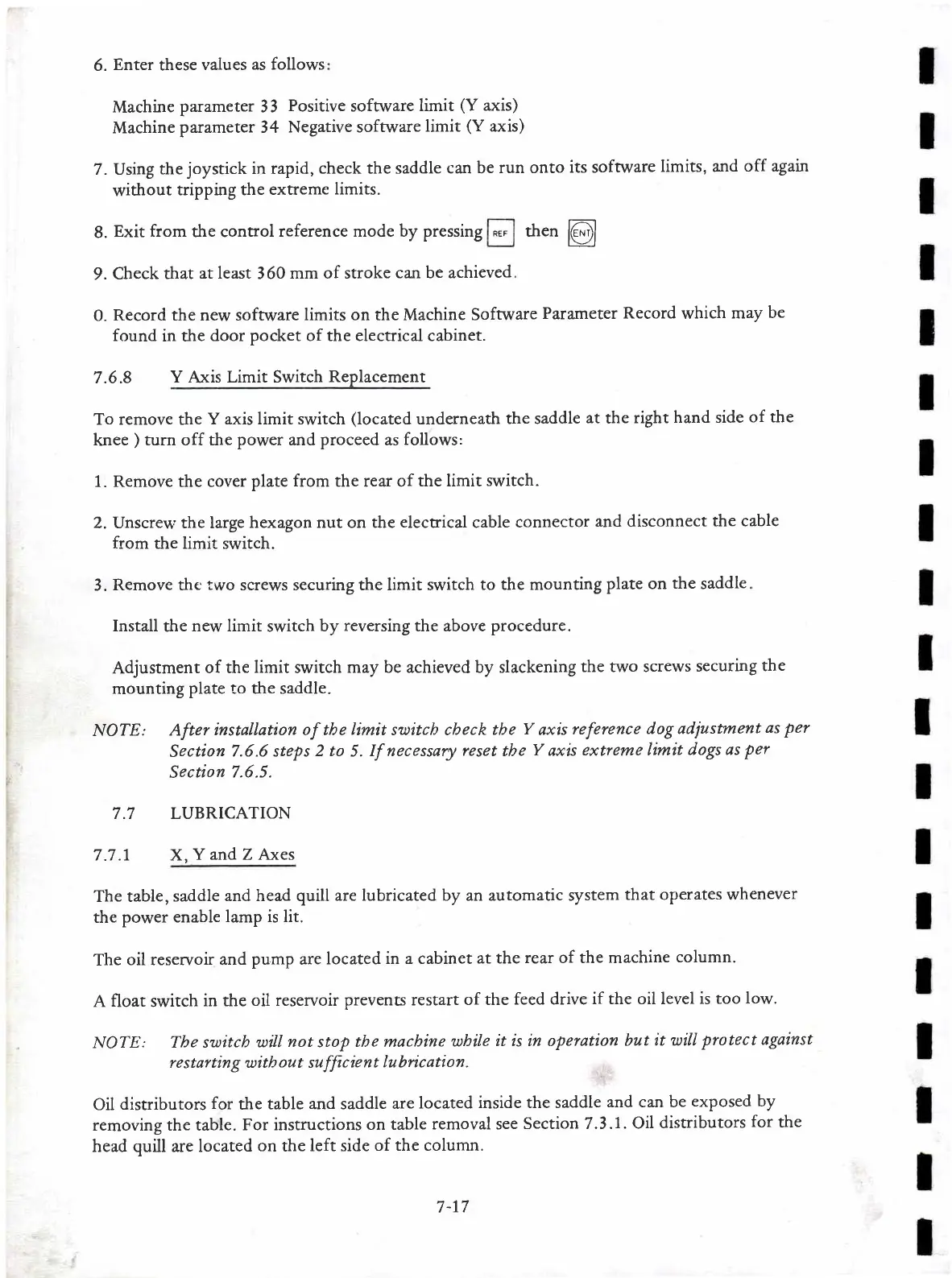

6.
Enter
these
values
as follows
Machine
parameter
3 3
Positive
software
limit
(Y
axis)
Machine
parameter 34
Negative software
limit
(Y
axis)
7. Using
the
joystick
in rapid,
check the saddle
can be
run onto
its software
limits, and
off again
without
tripping the
extreme
limits.
8.
Exit from
the control
reference mode by
pressing then
9.
Check
that
at least
360
mm of stroke
can be achieved
0.
Record the new software
limits on the Machine Software
Parameter
Record
which
may
be
found
in the
door
pocket
of the electrical cabinet.
7.6.8
Y
Axis
Limit Switch
Replacement
To remove the
Y axis limit switch
(located
underneath
the saddle
at
the
right
hand side
of the
knee
)
turn off the
power
and
proceed
as
follows,
1. Remove the cover
plate
from
the rear of
the limit
switch.
2. Unscrew the large
hexagon nut on the
electrical
cable
connector
and disconnect
the cable
from
the limit switch.
3.
Remove the
two
screws securing the limit switch
to the mounting
plate on
the
saddle
Install
the
new limit
switch
by
reversing
the above procedure.
Adjustment
of the
limit
switch
may be achieved by slackening
the two screws
securing
the
mounting
plate
to the saddle.
NOTE:
After
installation of tbe
limit
switcb cbeck
the
Y
axis
reference
dog adjusnnent
as
per
Section
7.6.6 steps
2 to
5.
If necessary
reset
tbe
Y
axis
ex*eme limit
dogs ds
per
Section
7.6.5.
7.7 LUBRICATION
7.7.7 X,
Y and Z Axes
The table,
saddle
and head
quill are lubricated by an automatic system
that operates whenever
the
power enable
lamp is lit.
The
oil reservoir
and
pump
are
located
in a cabinet
at the
rear of the machine
column.
A float switch
in the
oil reservoir
prevents restart
of the
feed drive
if the oil level
is too
low.
NOTE:
Tbe switcb
will
not
stop
the macbine
while
it is in operation
but
it will
protect against
re
startin
g witb
ou
t su
ffi
c ie n t lu bric
ati on.
Oil
distributors
for
the
table and saddle
are
located
inside the saddle
and can be
exposed by
removing the table.
For instructions
on table
removal see
Section 7.3.1.
Oil
distributors
for
the
head quill are located
on
the
left side
of the column.
REF
@
7
-17
