Using the Blind Area Setup feature might resolve or compensate for mounting location issues,
enabling off-centred or angled installations (see section “4.3.11 Blind Area Setup”).
3.5 Cable
Cables should be run in conduits and along suitable cable runs throughout the vehicle. A
24mm hole is required to pass the connectors through.
Note: ● Allow a reasonable bending radius when folding excess cabling or for the routing of
the cable.
• Avoid tight bends close to the connectors.
• Avoid pulling on the connector.
• Ensure all cables are fitted into a suitable protective conduit.
• Ensure cabling and connectors are fitted away from sources of excess heat, vibration,
movement, water, and dirt.
3.6 Display
The display should be mounted so it is clearly visible to the vehicle operator in all
environments and situations. The display should be fixed in a suitable location in line with any
current legislation/regulations.

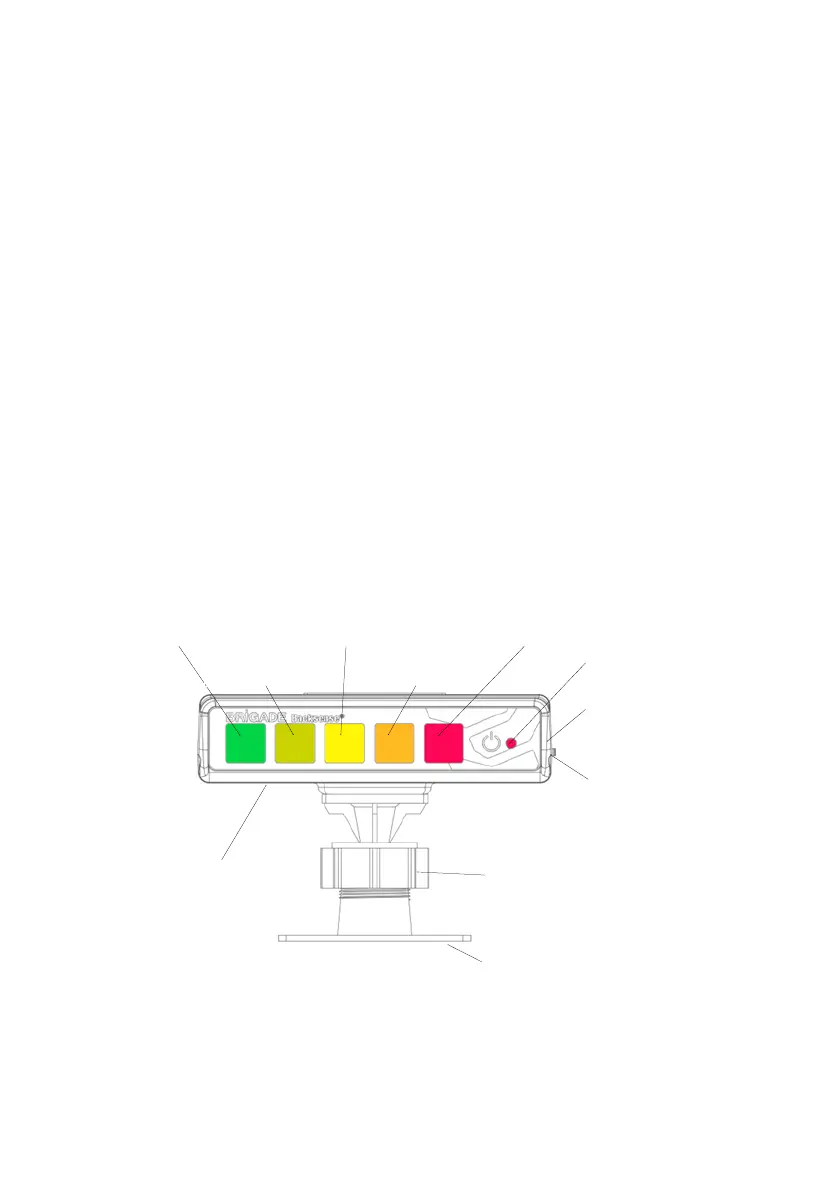

The base is fixed to the display with a keyway locking method and locked with a machine
screw. The base can be separated from the display by removing the screw and sliding it back
and down if the display is to be flush mounted.
The base has a self-adhesive pad applied for mounting on the dashboard.
The neck is adjustable in all directions up to 30° and is secured with a locking nut. The locking
nut should only be tightened by hand and excessive torque should be avoided. The volume is
adjustable from 70 to 90dB, measured at 1m distance.
