Detection Area Length”, “Detection Zone Width”, “Trigger Output Length” and “Buzzer Starting
Zone”.
4.3.10.3 Detection Area Length
The detection area length can be set in two ways; setting each zone individually via the
“Detection Zone Length” or via “Quick Zones Detection Area Length”.
4.3.10.4 Detection Zone Length Setup
This is used to set up each of the five zones individually. Each zone has a range from 0.6m to
56.0m selectable via the pull-down menus. The combined total length cannot exceed 60m.

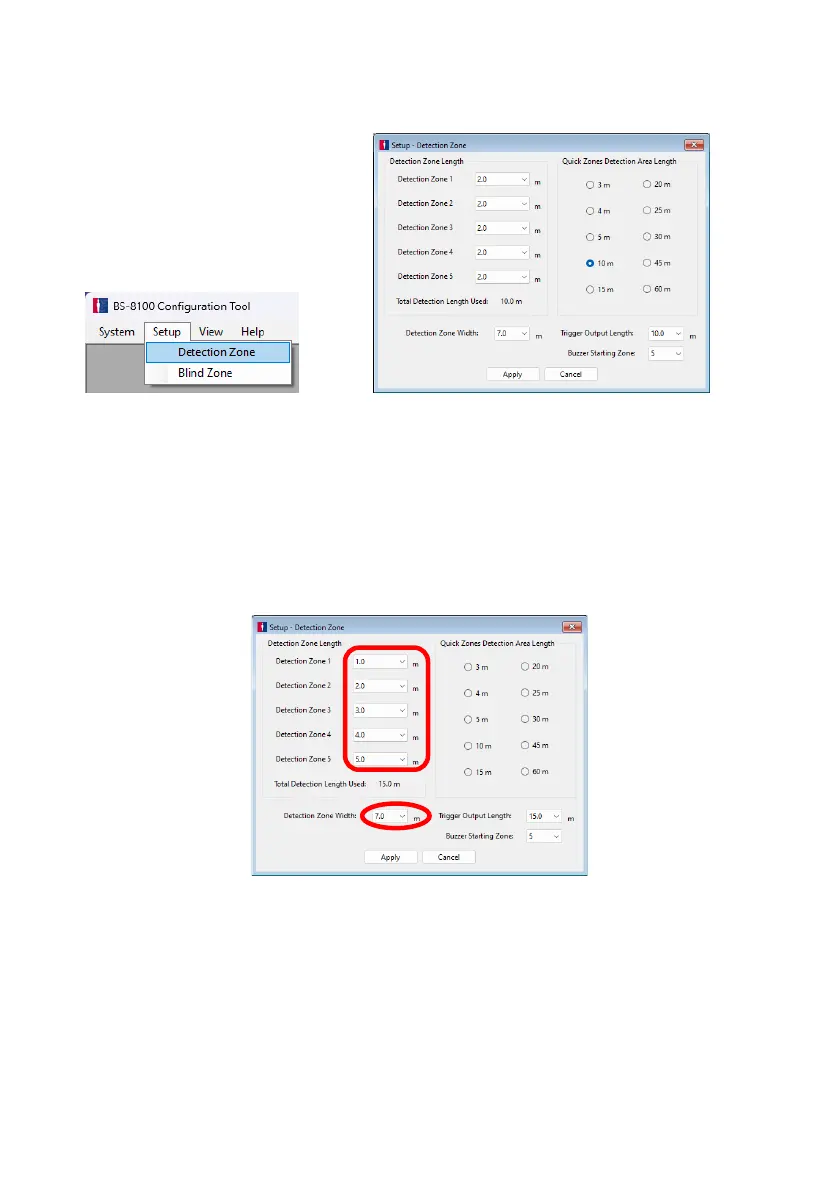

The image below shows zones setup from 1.0m to 5.0m giving a total of 15.0m detection.
Clicking “Apply” after selection will change the shape displayed in the related view window.
