4.3.10.5 Quick Zones Detection Area Length

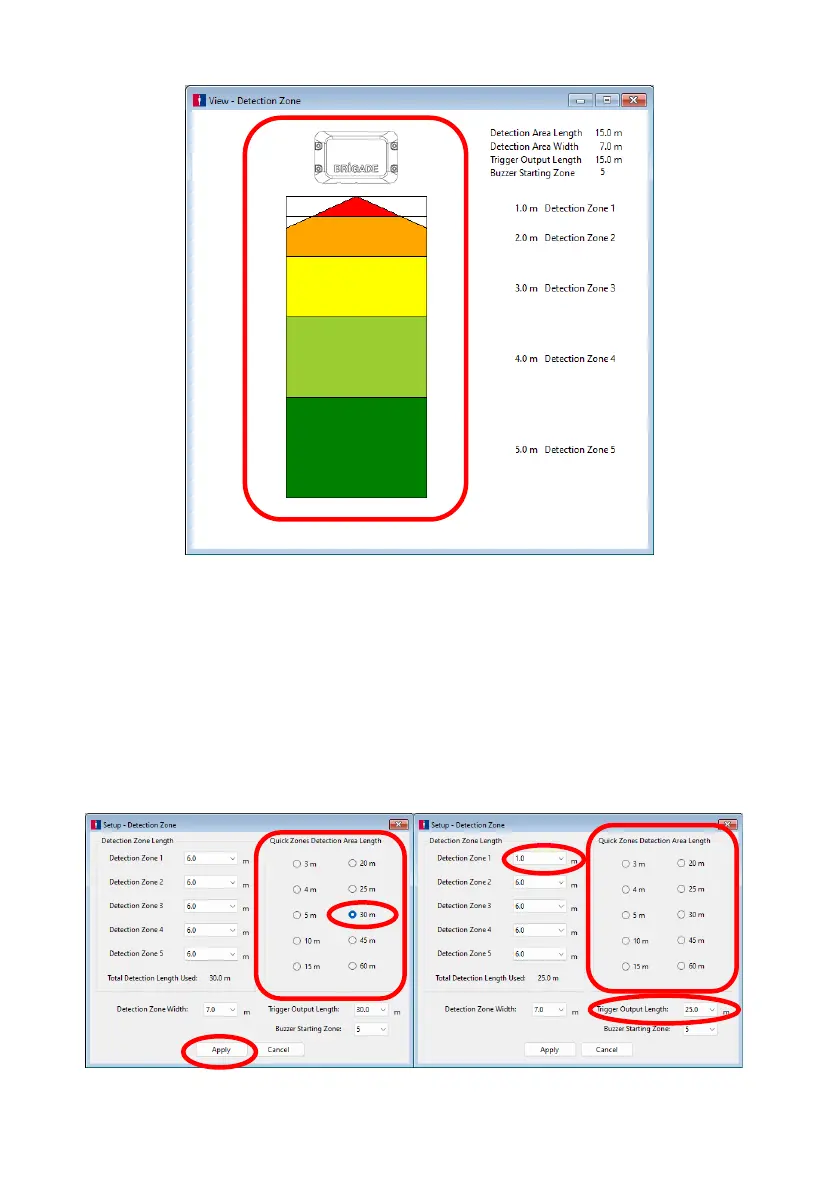

“Quick Zones” are presets which set the total detection area length to the selected value and
divide it into five equal detection zones. There are ten “Quick Zones” settings available, which
can be selected by clicking the appropriate check box next to the desired distance. This does
not affect the width, trigger output length, or buzzer starting zone; these still should be set up
manually as required.
If one of the Detection Zones Length is changed, the Quick Zones Detection Area Length will
be deselected, as shown in the example images below where “Detection Zone 1” has been
manually changed.
Note: The trigger output length will automatically reduce if the total detection length has been
shortened.
