4.3.10.7 Trigger Output Length
The Trigger Output Length setting defines the distance at which an object in the detection area
will activate the trigger output. The drop-down box offers a range of Trigger Output Lengths
from 1m up to the selected Total Detection Length. Select the required Trigger Output length
from the drop-down box and click “Apply”.

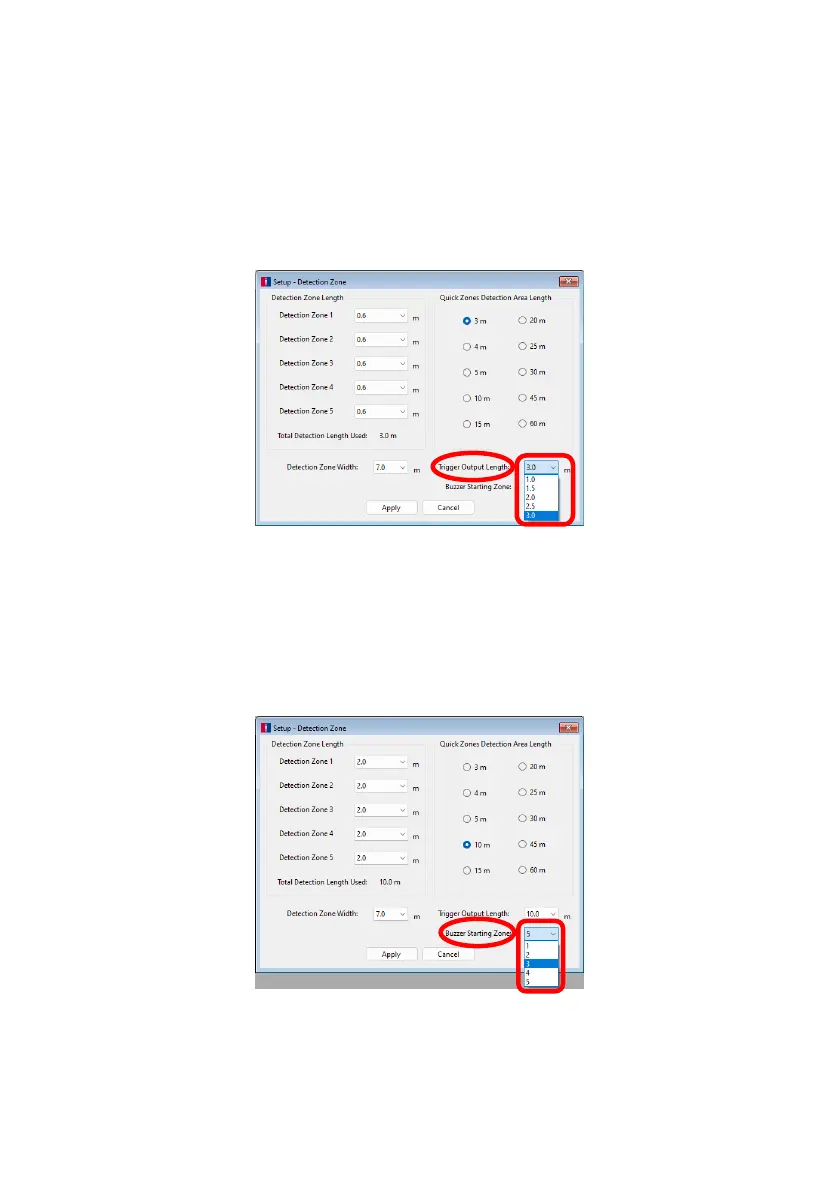

For example, the image below shows a 3m detection length with the Trigger Output Length set
at 3.0m (highlighted). The LED display will illuminate and beep at the start of detection (3.0m)
but the trigger output would not activate until the detected object moves within 2.0m of the
sensor.
4.3.10.8 Buzzer Starting Zone
The Buzzer Starting Zone defines the distance at which an object in the detection area will
cause the display’s buzzer to start sounding. Select the required buzzer starting zone from the
drop-down box and click “Apply”.
The example below shows the Detection Zone Length at 10.0m with the Buzzer Starting Zone
being set for Detection Zone 3. This means the display will show only illuminated Zone Light
warnings until any detected object is within Detection Zone 3 and the yellow Zone Light is
active. At this point the buzzer will sound.
