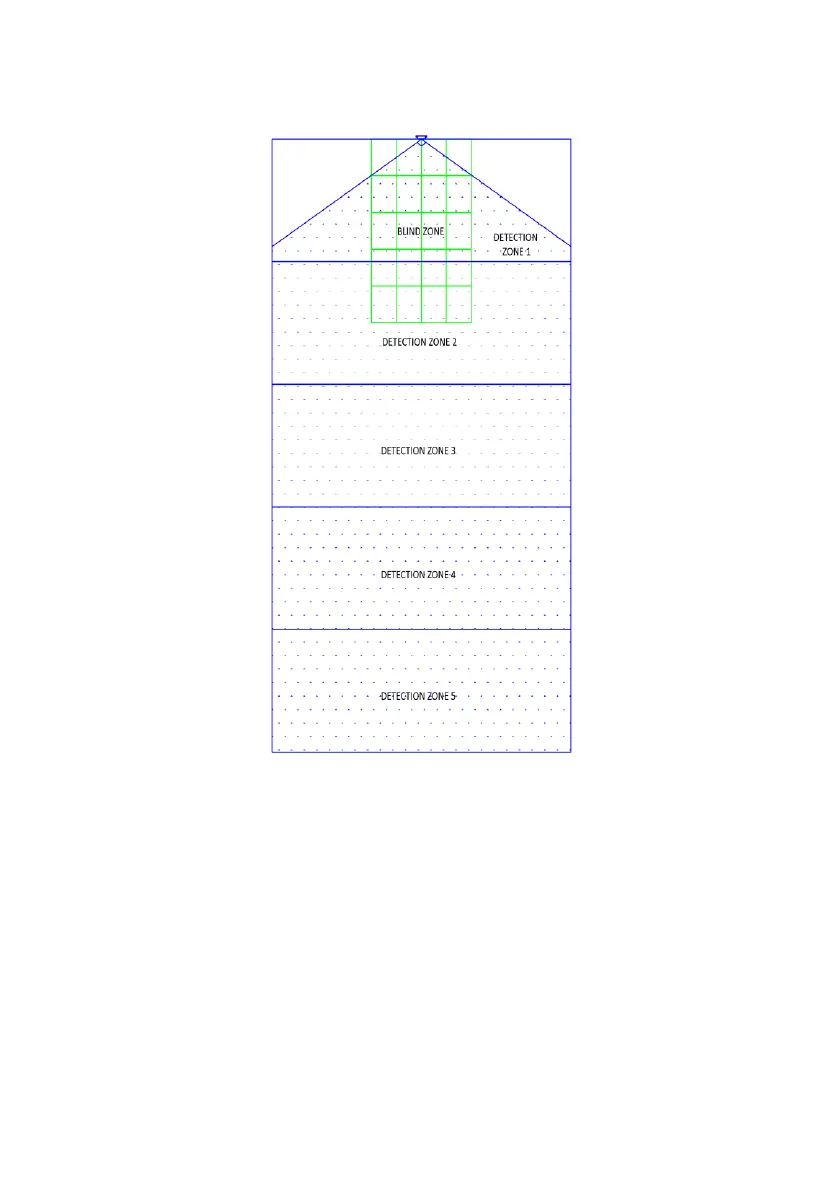

The next image shows the actual relationship between the two images set in the Configuration
Tool.
In the image above the Blind Zone Area is set to a 3.0m x 2.0m in front of the sensor. The
Blind Zone Area is divided into 5 zones in length by 4 cells in width.
