Brivis 22 Evap AC IM
11.4 WIRING THE BRIVIS AD TO THE PROGRAMMABLE AND MANUAL WALL CONTROL
•
The Brivis AD coolers are supplied with a 20 m wall control loom pre-wired to the Cooler’s electronic module�
•
Ensure the wall control is positioned so that it is within reach of the Cooler, using the 20 m wire loom assembly
supplied�
•
The wall control accepts the polarised plug connection� The Manual wall control has a small loom to connect the
polarised plug to� The Programmable wall control connection is internal and can be accessed by removing a
screw from the top of the control then removing the top access panel�
The Programmable Controller
Route the wall control wire loom to the wall
control mounting position (ensure mount
position is within reach of 20 m loom)� Remove
cable puller from the loom� Plug wire loom onto
the back of the wall control, and then x control
to mounting plate�

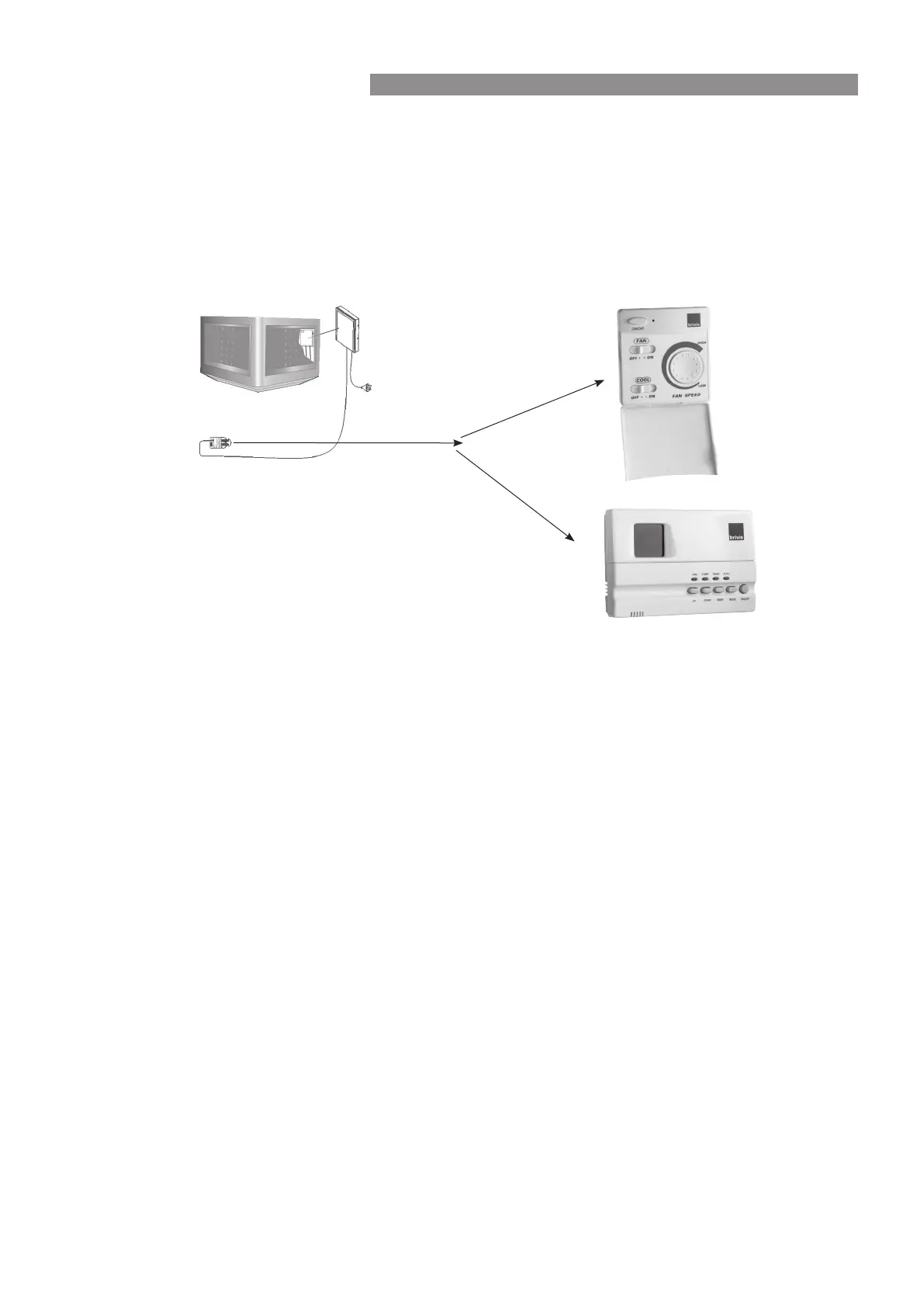

Mains Power Supply wall
control loom pre-wired at
control module within unit�
Polarised connector & cable puller to enable
cable to be pulled through cavities without
damage to the cable connector�
20 m Cable (low voltage cable)
Control Box
Brivis AD Evaporative Cooler
The Manual Controller
11. INSTALLATION
-
BRIVIS AD
