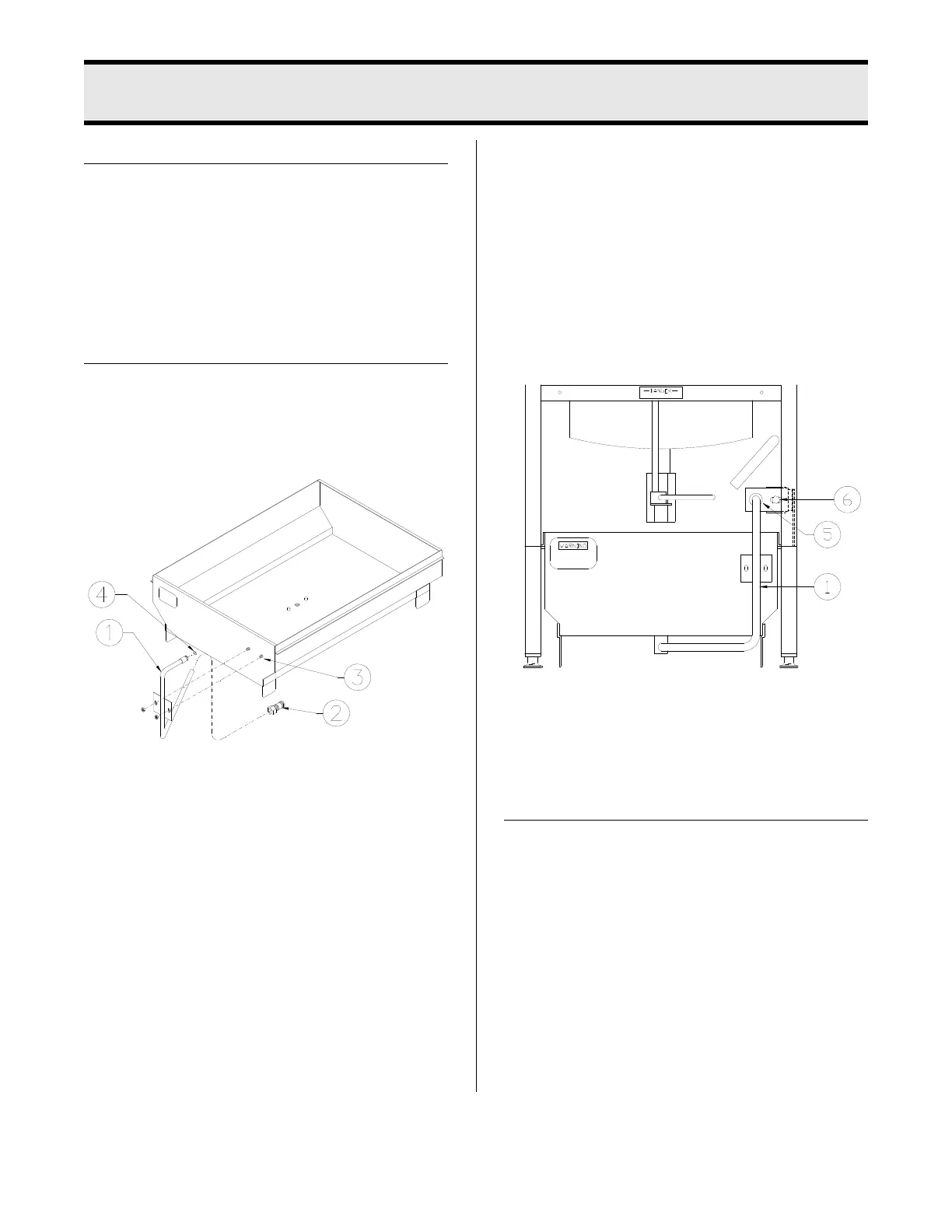

2 - FILTER PAN ASSEMBLY
2–1
HARDWARE LIST
(2) 00552 - Keps Nuts
(1) 15283 - Connector with ferrule
(3) 09883 - O-Ring
(1) 15559 - Riser Line
(2) 01596 - Washer
ASSEMBLY
1. From bag of hardware, install com-
pression nut then ferrule onto riser line
(1).
2. Install riser line onto pan. First install
line into fitting (2) on bottom center of
pan while the mounting plate fits over
studs (3) on front of pan.
3. Install washers and keps nuts onto
studs but do not tighten.
4. Tighten nut onto fitting (2).
5. Lubricate O-ring (4) with cooking oil.
Install O-ring into groove on riser line
(1).
6. Install filter pan under unit and align
riser line with suction line (5).
7. Tighten keps nuts mounting riser line
to filter pan.
8. See Operation Manual for additional
assembly.
ADDITIONAL ADJUSTMENTS
IF NEEDED
1. Loosen nut and bolt (6).
2. Push pan under unit. By hand, move
suction line (5) until riser line (1) is fully
inserted into suction line.
3. Tighten all nuts and bolts.
broaster.com Manual #15458 5/02 Rev 2/14
