3-9

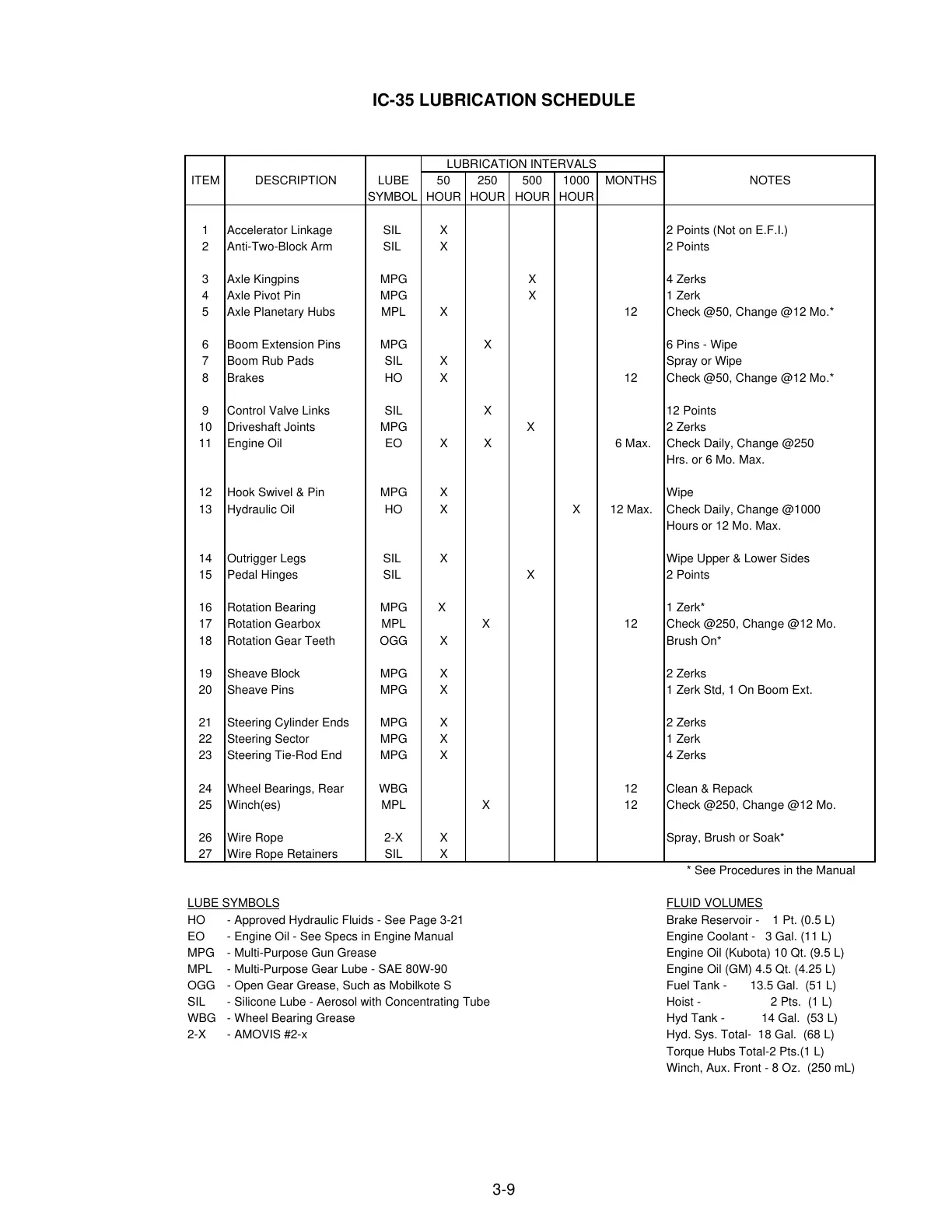

IC-35 LUBRICATION SCHEDULE
LUBRICATION INTERVALS
ITEM DESCRIPTION
LUBE
50 250 500 1000 MONTHS NOTES
SYMBOL HOUR HOUR HOUR HOUR
1 Accelerator Linkage SIL X 2 Points (Not on E.F.I.)
2 Anti-Two-Block Arm SIL X 2 Points
3 Axle Kingpins MPG X 4 Zerks
4 Axle Pivot Pin MPG X 1 Zerk
5 Axle Planetary Hubs MPL X 12 Check @50, Change @12 Mo.*
6 Boom Extension Pins MPG X 6 Pins - Wipe
7 Boom Rub Pads SIL X Spray or Wipe
8 Brakes HO X 12 Check @50, Change @12 Mo.*
9 Control Valve Links SIL X 12 Points
10 Driveshaft Joints MPG X 2 Zerks
11 Engine Oil EO X X 6 Max. Check Daily, Change @250
Hrs. or 6 Mo. Max.
12 Hook Swivel & Pin MPG X Wipe
13 Hydraulic Oil HO X X 12 Max. Check Daily, Change @1000
Hours or 12 Mo. Max.
14 Outrigger Legs SIL X Wipe Upper & Lower Sides
15 Pedal Hinges SIL X 2 Points
16 Rotation Bearing MPG X 1 Zerk*
17 Rotation Gearbox MPL X 12 Check @250, Change @12 Mo.
18 Rotation Gear Teeth OGG X Brush On*
19 Sheave Block MPG X 2 Zerks
20 Sheave Pins MPG X 1 Zerk Std, 1 On Boom Ext.
21 Steering Cylinder Ends MPG X 2 Zerks
22 Steering Sector MPG X 1 Zerk
23 Steering Tie-Rod End MPG X 4 Zerks
24 Wheel Bearings, Rear WBG 12 Clean & Repack
25 Winch(es) MPL X 12 Check @250, Change @12 Mo.
26 Wire Rope 2-X X Spray, Brush or Soak*
27 Wire Rope Retainers SIL X
* See Procedures in the Manual
LUBE SYMBOLS
FLUID VOLUMES
HO - Approved Hydraulic Fluids - See Page 3-21 Brake Reservoir - 1 Pt. (0.5 L)
EO - Engine Oil - See Specs in Engine Manual Engine Coolant - 3 Gal. (11 L)
MPG - Multi-Purpose Gun Grease Engine Oil (Kubota) 10 Qt. (9.5 L)
MPL - Multi-Purpose Gear Lube - SAE 80W-90 Engine Oil (GM) 4.5 Qt. (4.25 L)
OGG - Open Gear Grease, Such as Mobilkote S Fuel Tank - 13.5 Gal. (51 L)
SIL - Silicone Lube - Aerosol with Concentrating Tube Hoist - 2 Pts. (1 L)
WBG - Wheel Bearing Grease Hyd Tank - 14 Gal. (53 L)
2-X - AMOVIS #2-x Hyd. Sys. Total- 18 Gal. (68 L)
Torque Hubs Total-2 Pts.(1 L)
Winch, Aux. Front - 8 Oz. (250 mL)
