( BAS-411 )

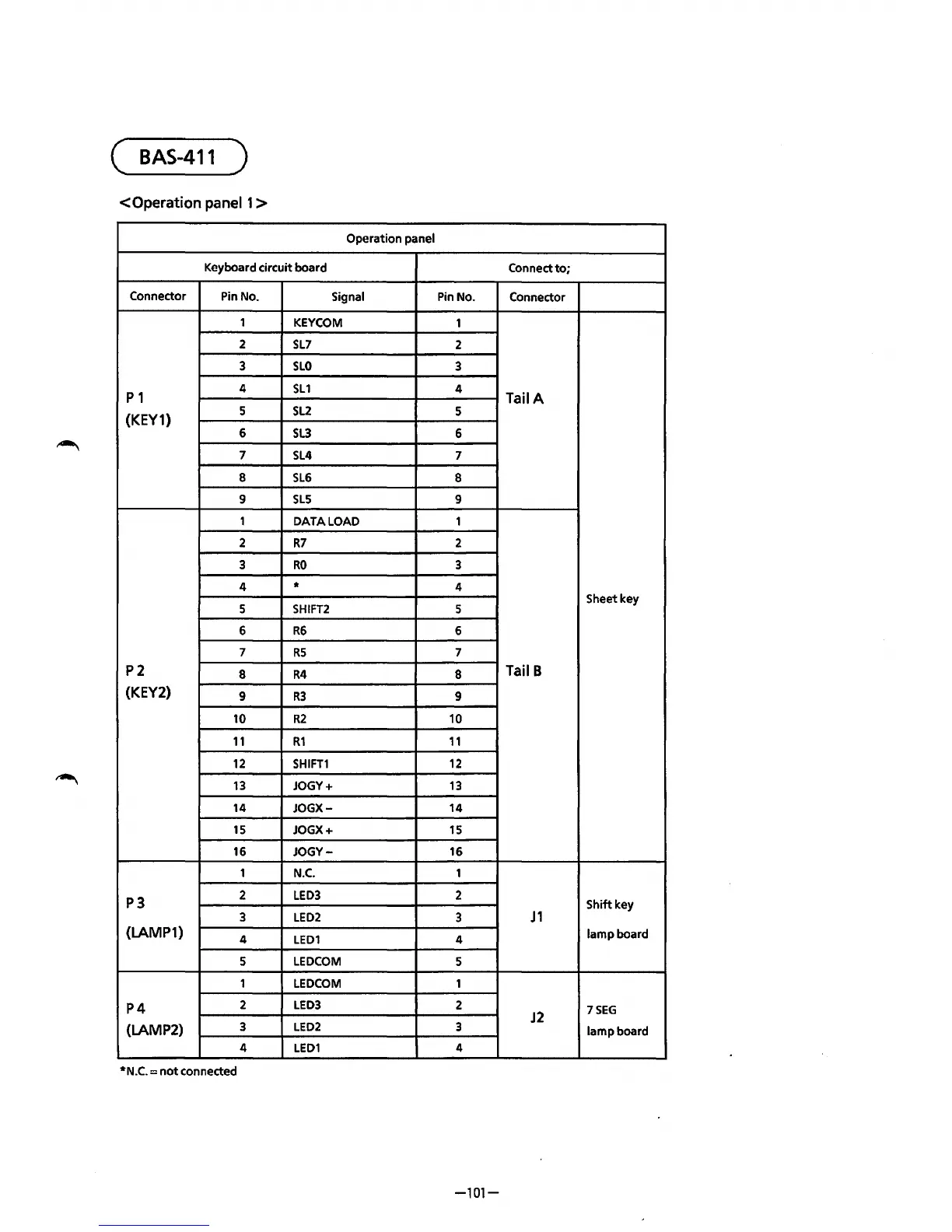

<Operation panel 1 >
Operation panel
Keyboard
circuit board
Connect to;
Connector
Pin No.
Signal
Pin No.
Connector
1
KEY COM
1
2
SL7
2
3
SLO
3
P1
4
SL1
4
Tail A
(KEY1)
5 SL2
5
6
SL3
6
7
SL4
7
8 SL6
8
9 SL5 9
1
DATA
LOAD
1
2
R7 2
3
RO 3
4
*
4
5
SHIFT2
5
Sheet
key
6 R6 6
7
R5
7
P2
8 R4 8
Tail B
(KEY2)
9 R3 9
10 R2 10
11 R1 11
12 SHIFT1
12
13
JOGY+
13
14
JOGX-
14
15
JOGX+
15
16
JOGY- 16
1
N.C. 1
P3
2
LED3 2
Shift key
3
LED2
3 J1
(LAMP1)
4
LED1 4
lamp board
5
LEDCOM
5
1
LEDCOM
1
P4
2 LED3
2
7SEG
3
LED2
3
J2
(LAMP2)
lamp board
4
LED1
4
*N.C.= not connected
-101-
