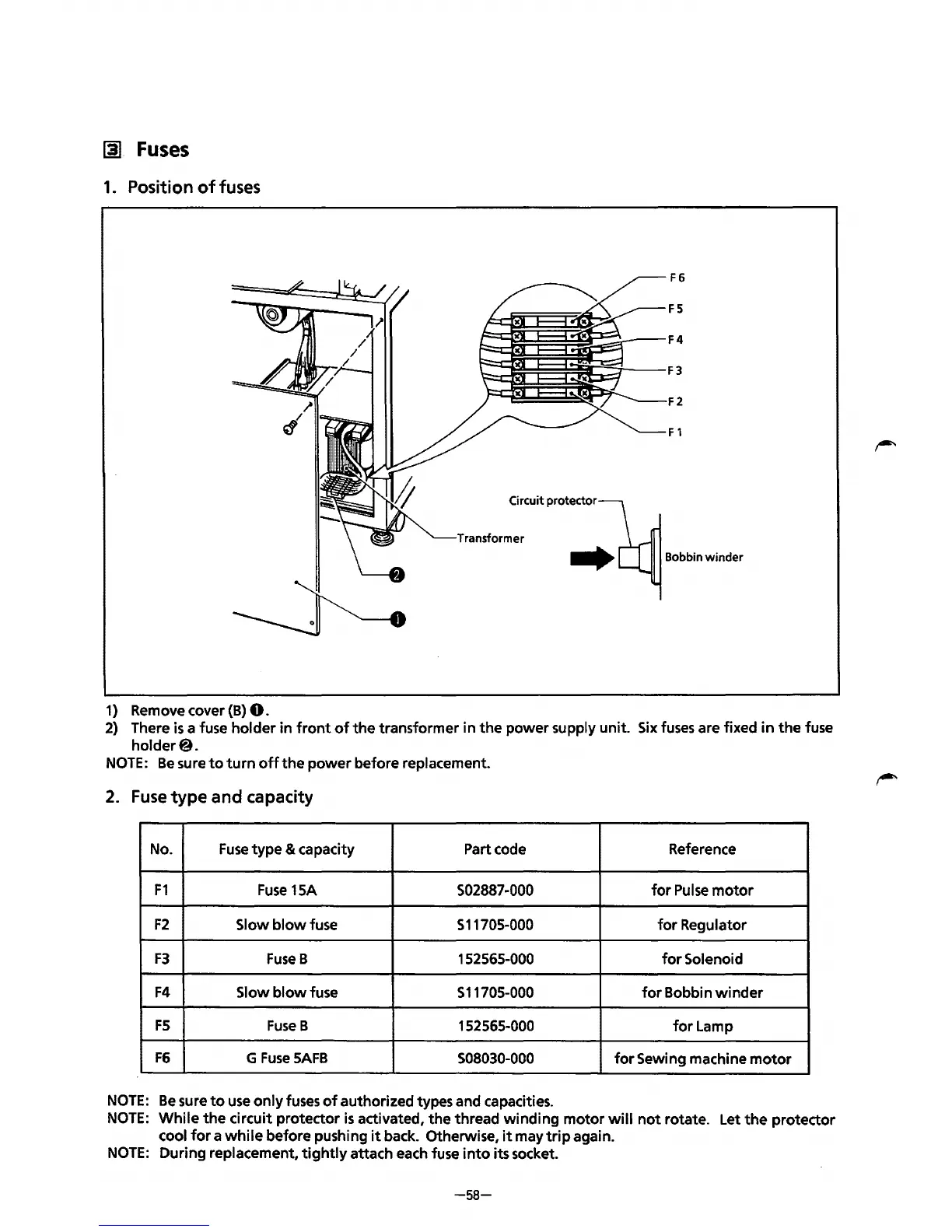

Fuses
1.
Position
of
fuses
F6
FS
F2
F1
Bobbin
winder
1)
Remove cover
(B)
0.
2)
There
is
a fuse
holder
in
front
of
the
transformer in
the
power supply unit.
Six
fuses are fixed
in
the
fuse
holder@.
NOTE:
Be
sure
to
turn
off
the
power
before replacement.
2.
Fuse
type and capacity
No.
Fuse
type
& capacity
Part code
Reference
F1
Fuse
15A S02887-000
for
Pulse
motor
F2
Slow
blow
fuse S11705-000
for
Regulator
F3
FuseB
152565-000
for
Solenoid
F4
Slow
blow
fuse S11705-000
for
Bobbin
winder
F5
Fuse
B 152565-000
for
Lamp
F6
G
Fuse
5AFB
S08030-000
for
Sewing machine
motor
NOTE:
Be
sure
to
use
only
fuses
of
authorized types and capacities.
NOTE:
While
the
circuit protector
is
activated,
the
thread
winding
motor
will
not
rotate. Let
the
protector
cool
for
a
while
before pushing
it
back. Otherwise,
it
may
trip
again.
NOTE:
During replacement,
tightly
attach each fuse
into
its socket.
-58-
