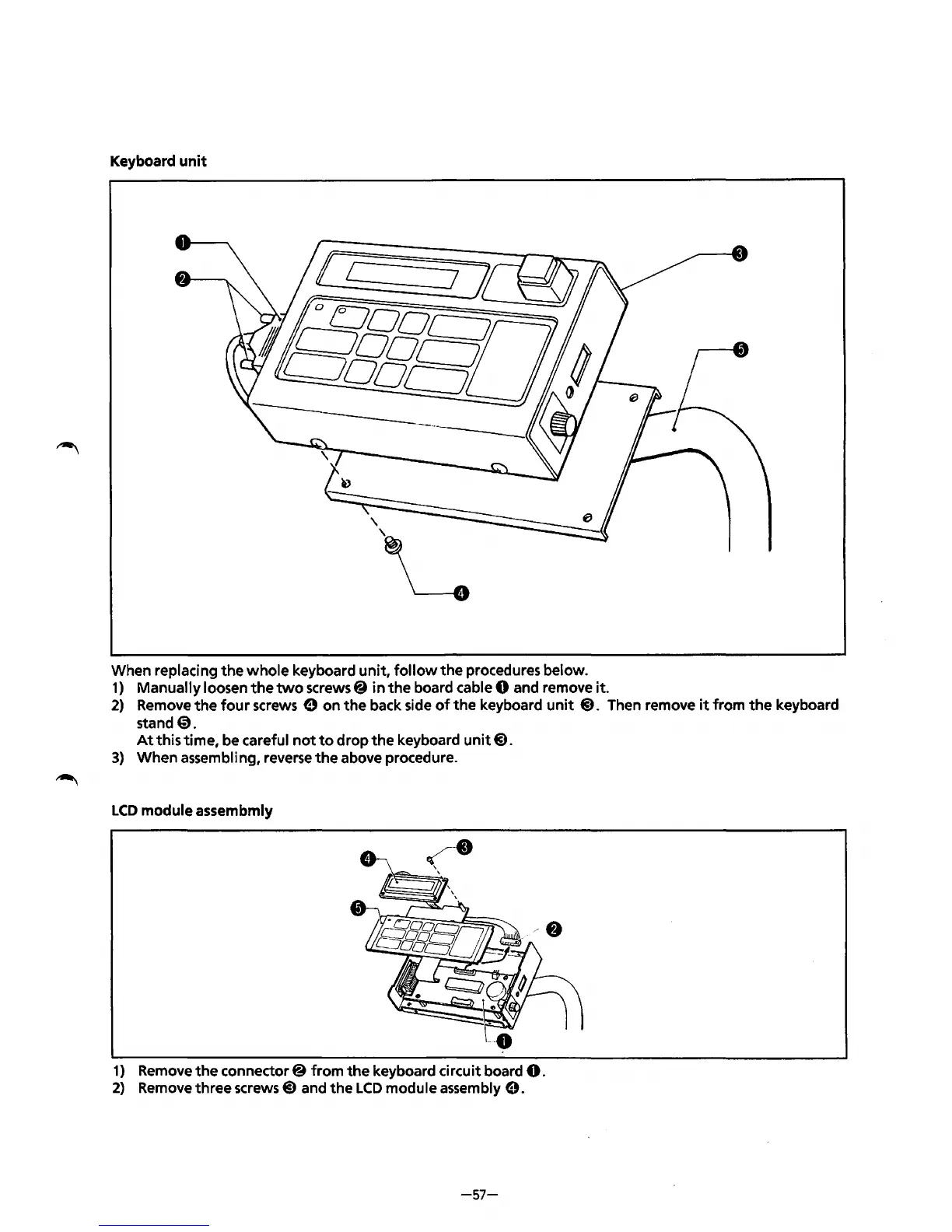

Keyboard unit
When replacing the whole keyboard unit, follow the procedures below.
1) Manually loosen the two screws@ in the board cable 0 and remove it.
2) Remove the four screws e on the back side of the keyboard unit @). Then remove it from the keyboard
stand
0.
At this time, be careful not to drop the keyboard unit@).
3) When assembling, reverse the above procedure.
LCD module assembmly
1) Remove the connector@ from the keyboard circuit board 0.
2) Remove three screws@) and the LCD module assembly e.
