c REPLACING AND ADJUSTING PARTS )

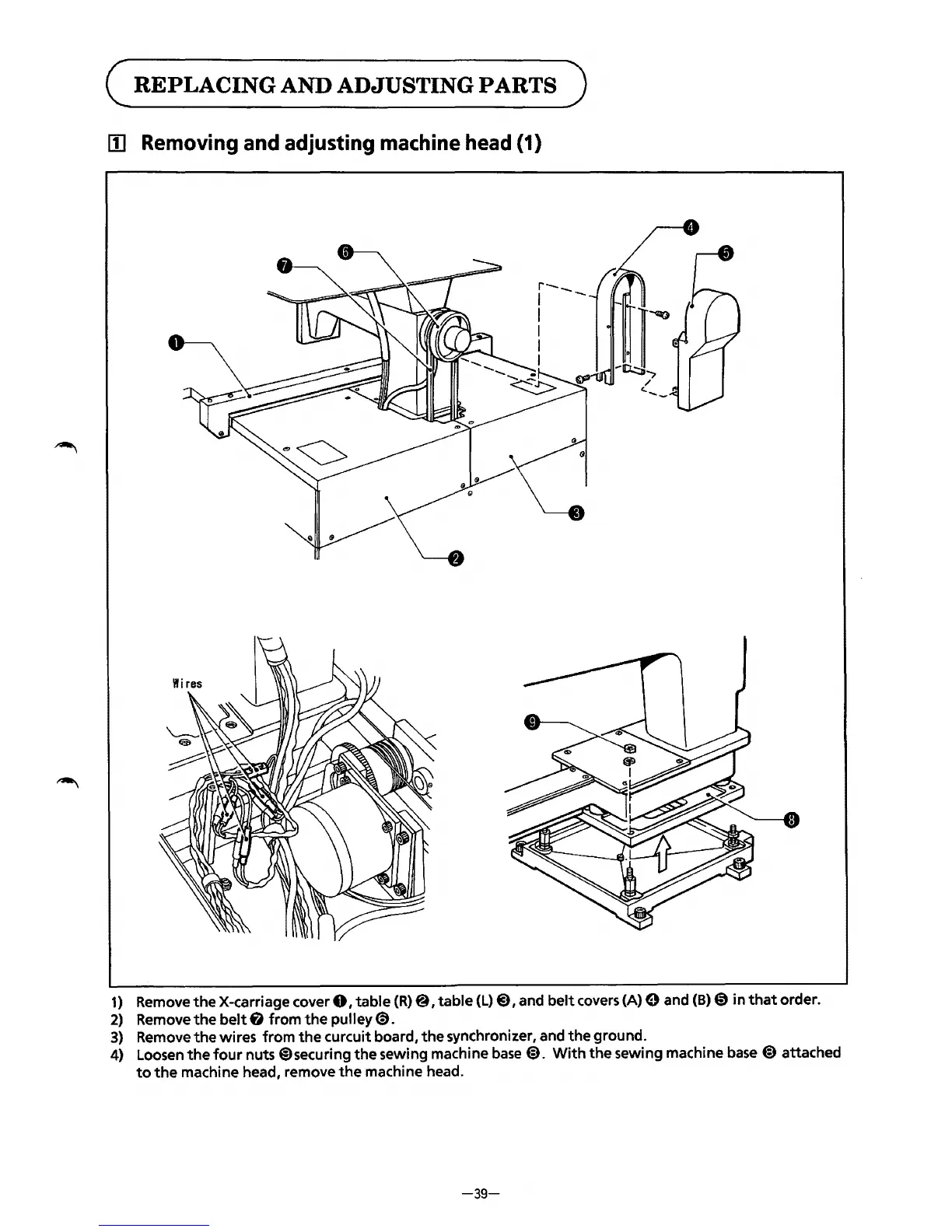

lii Removing and adjusting machine head (1)
1) Remove the X-carriage cover 0, table (R)@, table (L)@), and belt covers (A) e and (B)@ in that order.
2) Remove the belt & from the pulley (i).
3) Remove the wires from the curcuit board, the synchronizer, and the ground.
4) Loosen the four nuts @)securing the sewing machine base @. With the sewing machine base @ attached
to the machine head, remove the machine head.
-39-
