Brother BAS-415 - Removing and adjusting machine head (2)

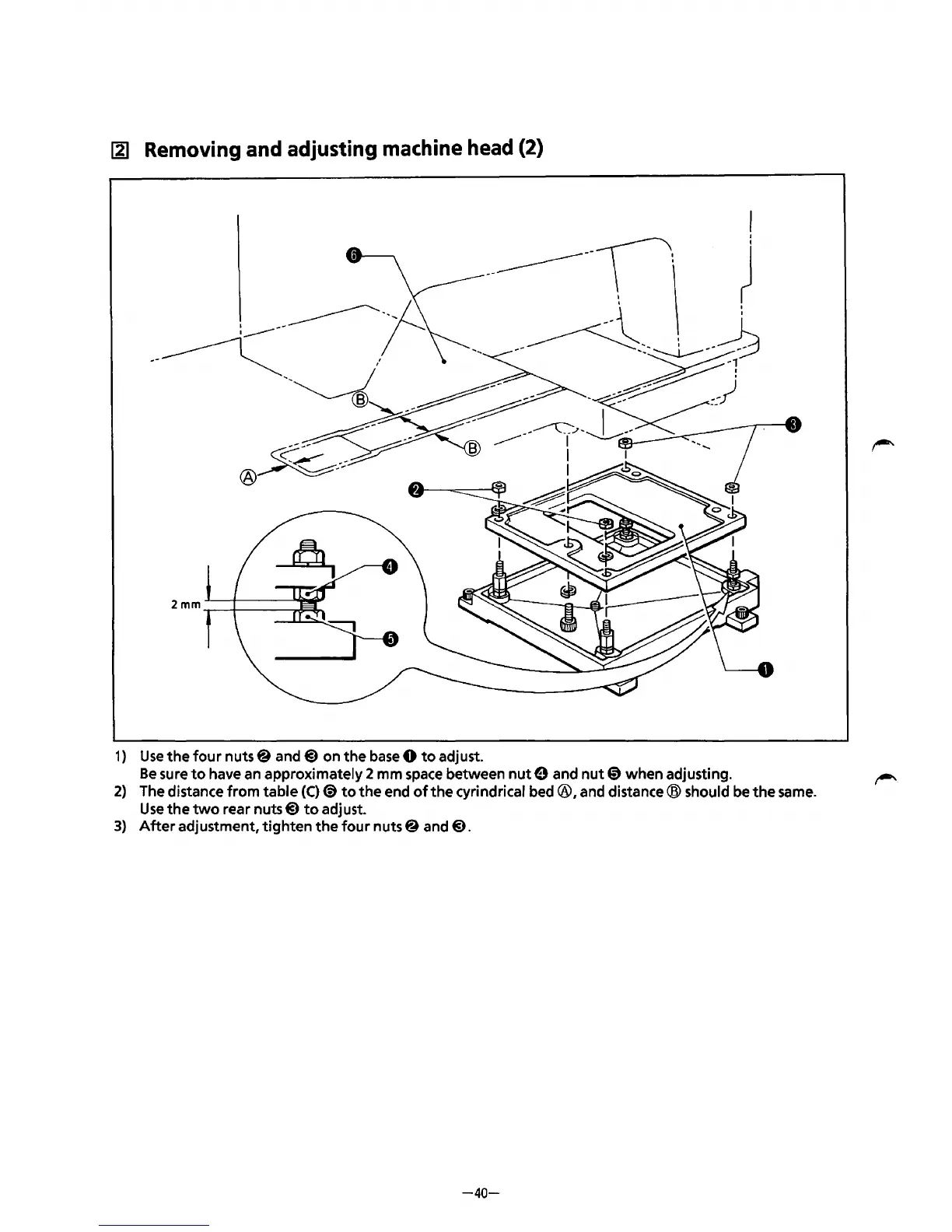

~ Removing and adjusting machine head (2)
1) Use the four nuts@ and@) on the base 0 to adjust.
Be sure to have an approximately 2 mm space between nut 9 and nut 0 when adjusting.
2) The distance from table (C)~ to the end of the cyrindrical bed®, and distance® should be the same.
Use the two rear nuts@) to adjust.
3) After adjustment, tighten the four nuts@ and@).
-40-
