Brother BAS-415 - [§] Picker Mechanism

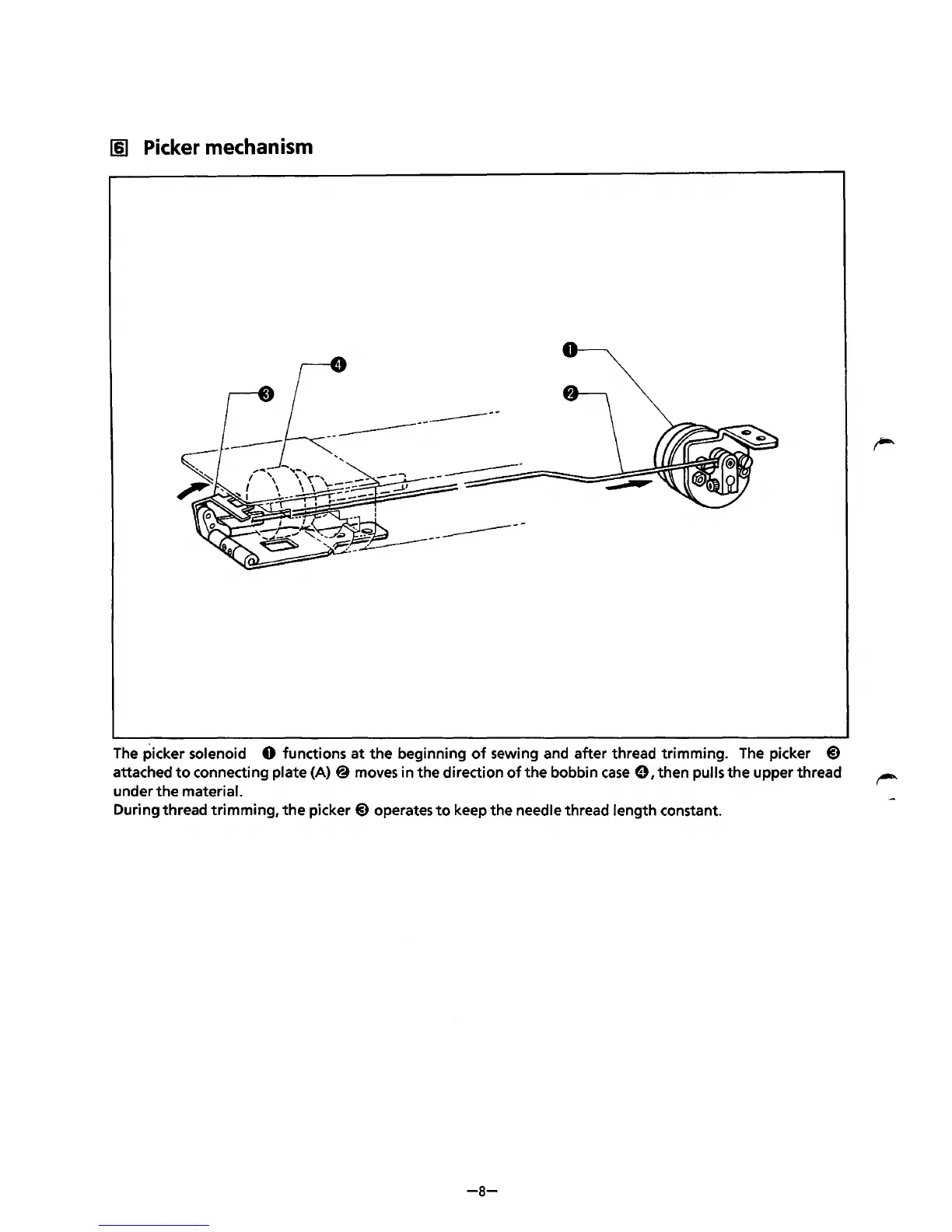

[§] Picker mechanism
------------
The picker solenoid 0 functions at the beginning of sewing and after thread trimming. The picker @)
attached to connecting plate (A)@ moves in the direction of the bobbin case e, then pulls the upper thread
under
the material.
During thread trimming,
the picker@) operates to keep the needle thread length constant.
-8-
