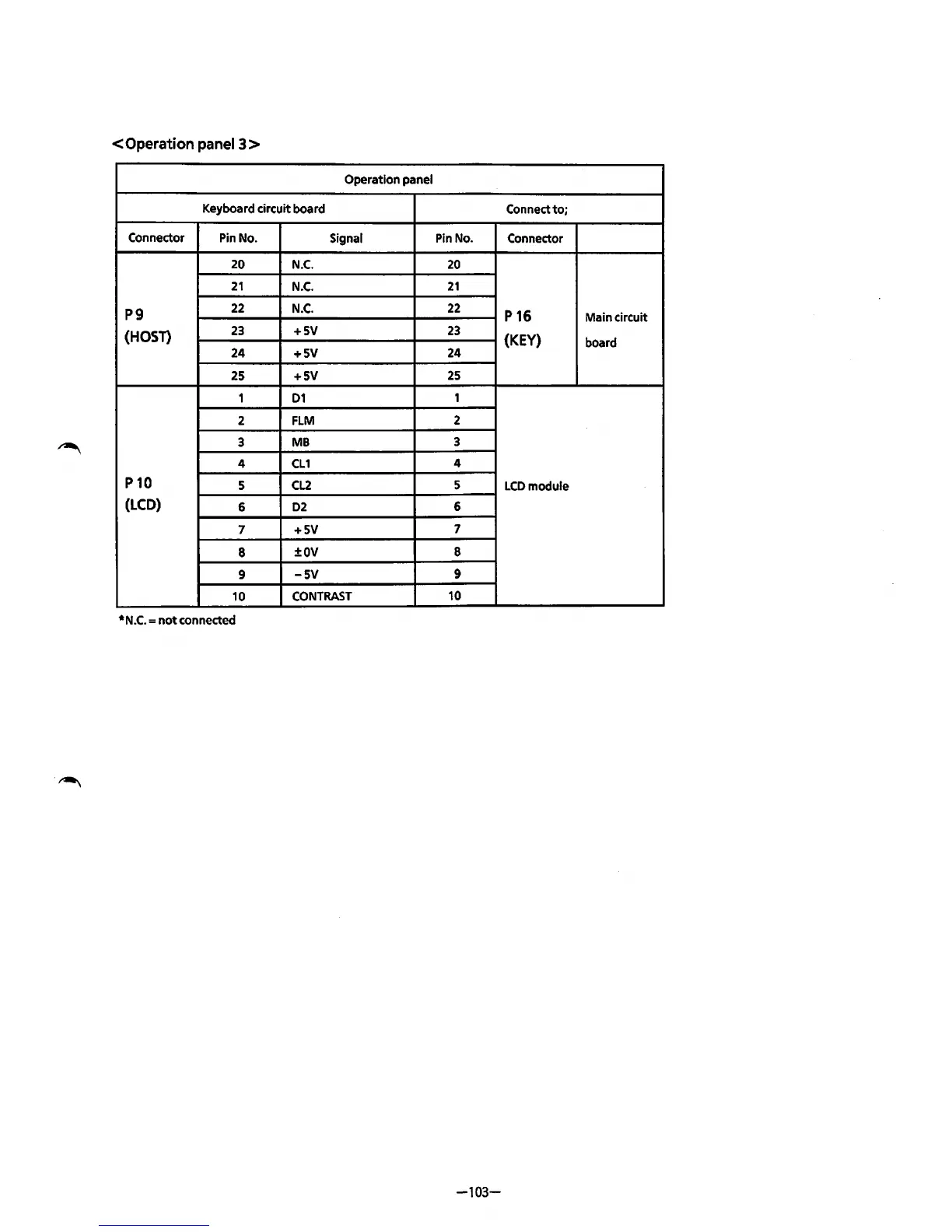

<Operation panel3>
Operation panel
Keyboard circuit board
Connect to;
Connector
Pin No.
Signal Pin No.
Connector
20
N.C. 20
21
N.C.
21
pg
22
N.C.
22
P16 Main circuit
(HOST)
23 +5V 23
(KEY)
board
24
+5V
24
25
+5V
25
1 01
1
2
FLM
2
3
MB
3
4 CL1
4
P10
5
CL2
5
LCOmodule
(LCD)
6
02
6
7
+5V
7
8
±OV 8
9
-5v
9
10
CONTRAST
10
*N.C.= not connected
-103-
