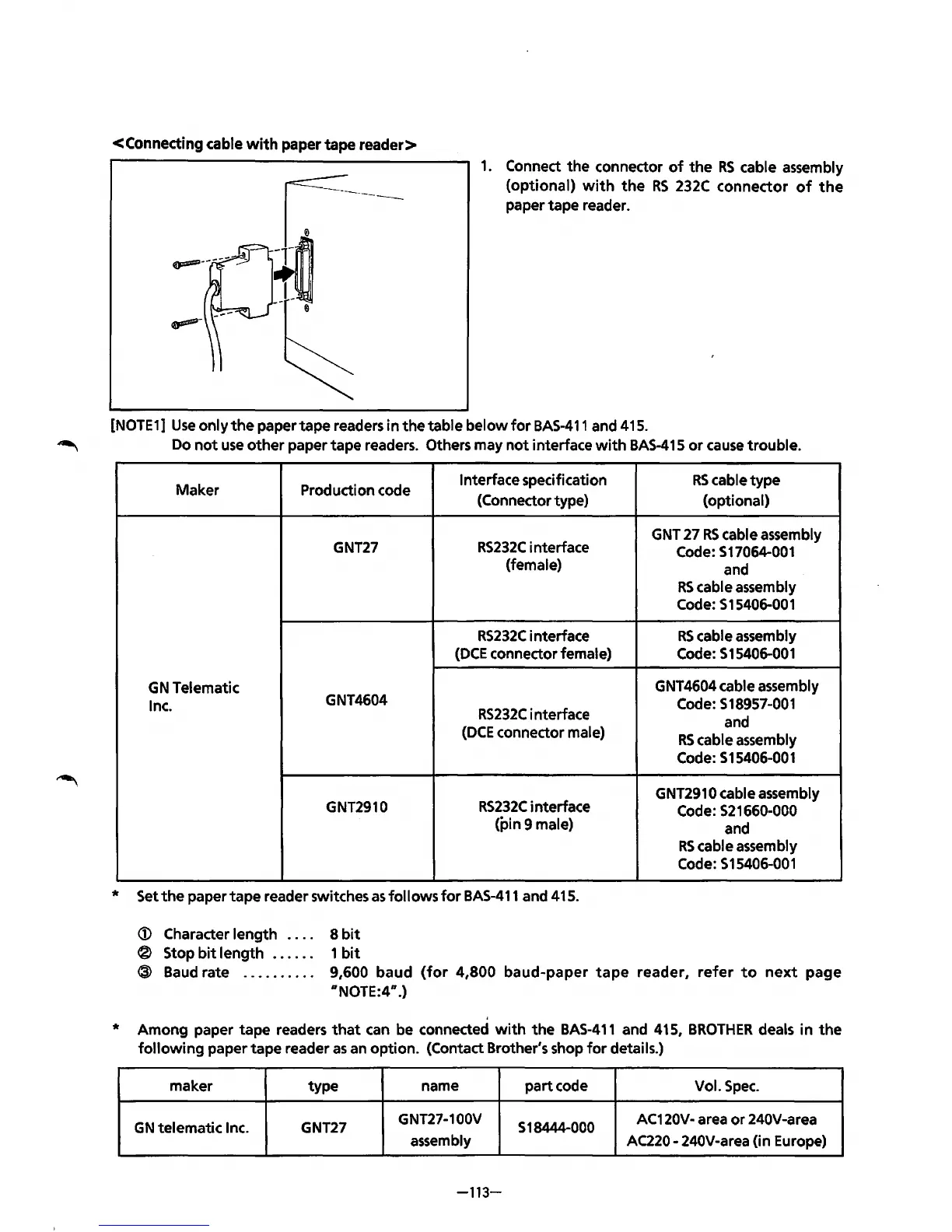

<Connecting cable with paper tape reader>
1. Connect the connector of the RS cable assembly
(optional) with the RS 232C connector of the
paper tape reader.
[NOTE1]
Use only the paper tape readers in the table below for BAS-411 and 415.
Do
not use other paper tape readers. Others may not interface with BAS-415 or cause trouble.
Maker
Production code
Interface specification
(Connector type)
GNT27
RS232C interface
(female)
RS232C interface
(DCE connector female)
GN Telematic
Inc.
GNT4604
RS232C interface
(DCE connector male)
GNT2910
RS232C interface
(pin9male)
* Set the paper tape reader switches as follows for BAS-411 and 415.
<D Character length . . . . 8 bit
® Stop bit length . . . . . . 1 bit
RS cable type
(optional)
GNT 27 RS cable assembly
Code: S17064-001
and
RS cable assembly
Code: S15406-001
RS cable assembly
Code: S15406-001
GNT4604
cable assembly
Code: S18957-001
and
RS cable assembly
Code: S 15406-001
GNT291 0 cable assembly
Code: S21660-000
and
RS cable assembly
Code: S 15406-001
® Baud rate . . . . . . . . . . 9,600 baud (for 4,800 baud-paper tape reader, refer to next page
"NOTE:4".)
* Among paper tape readers that can be connected with the BAS-411 and 415, BROTHER deals in the
following paper tape reader as an option. (Contact Brother's shop for details.)
maker type
name
part code
Vol.
Spec.
GN telematic Inc.
GNT27
GNT27-100V
S18444-000
AC120V-
area or 240V-area
assembly
AC220- 240V-area (in Europe)
-113-
