[II. Drive, (Y) feed mechanism

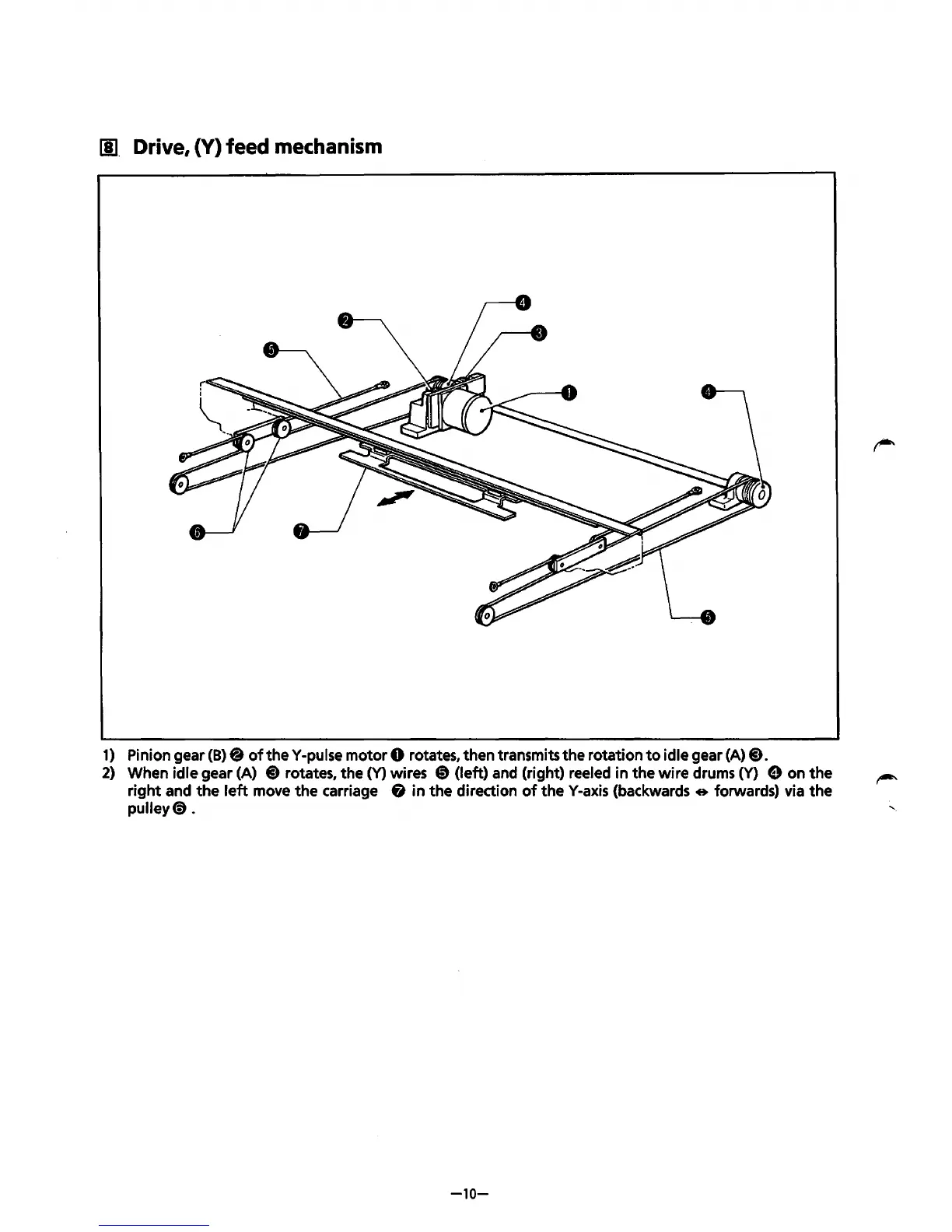

1) Pinion gear (B)@ of theY-pulse motor 0 rotates, then transmits the rotation to idle gear (A)@).
2) When idle gear (A) @)rotates, the (Y) wires @)(left) and (right) reeled in the wire drums (Y) 8 on the
right and the left move the carriage fi in the direction of theY-axis (backwards e forwards) via the
pulley8.
