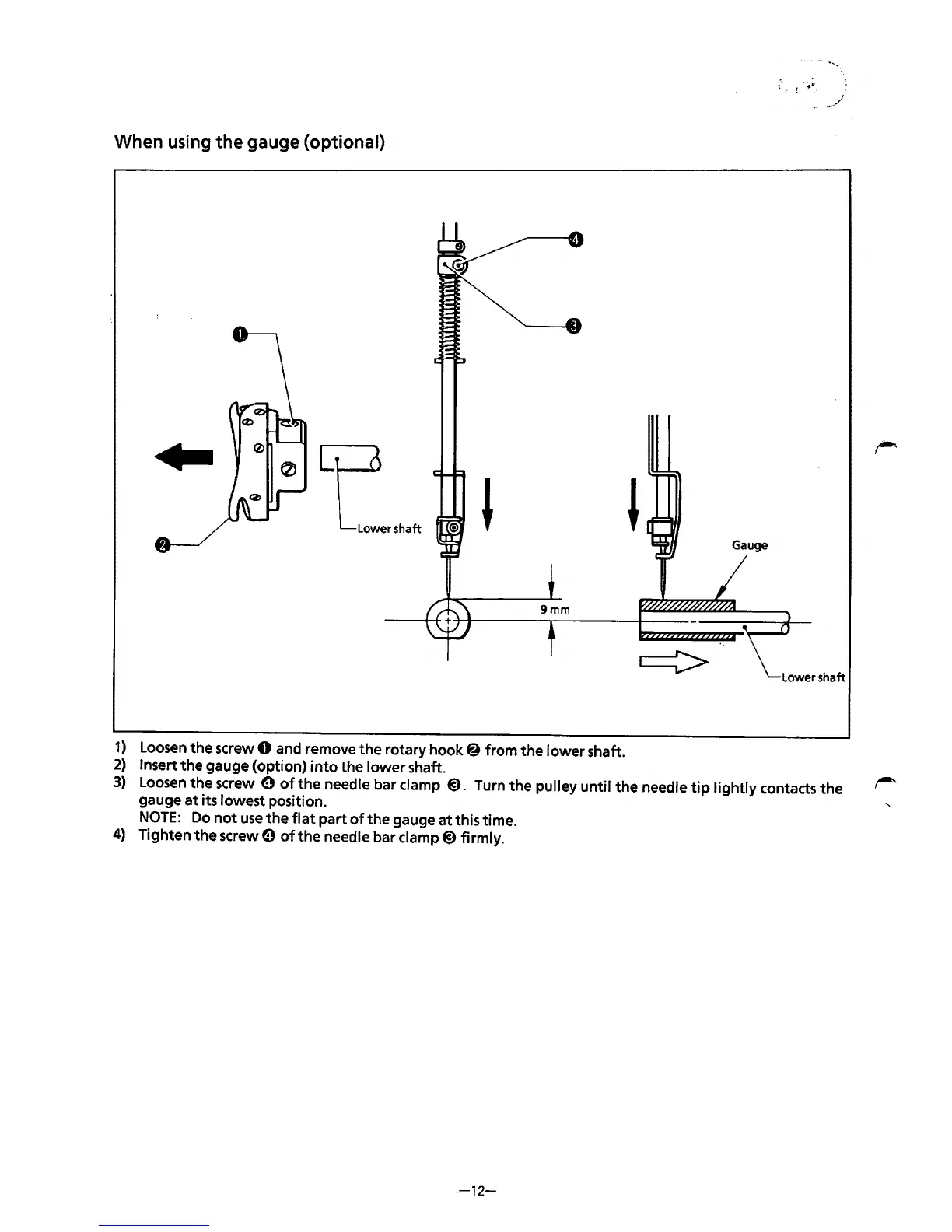

When using
the
gauge (optional)
Gauge
1)
Loosen
the screw 0 and remove
the
rotary
hook@
from the lower shaft.
2)
Insert the gauge (option)
into
the lower shaft.
3)
Loosen
the
screw e
of
the
needle bar clamp
@).
Turn
the
pulley until the needle
tip
lightly contacts
the
gauge
at
its lowest position.
NOTE:
Do
not
use
the
flat
part
of
the
gauge
at
this time.
4)
Tighten
the
screw 9
of
the
needle bar
clamp@)
firmly.
-12-
