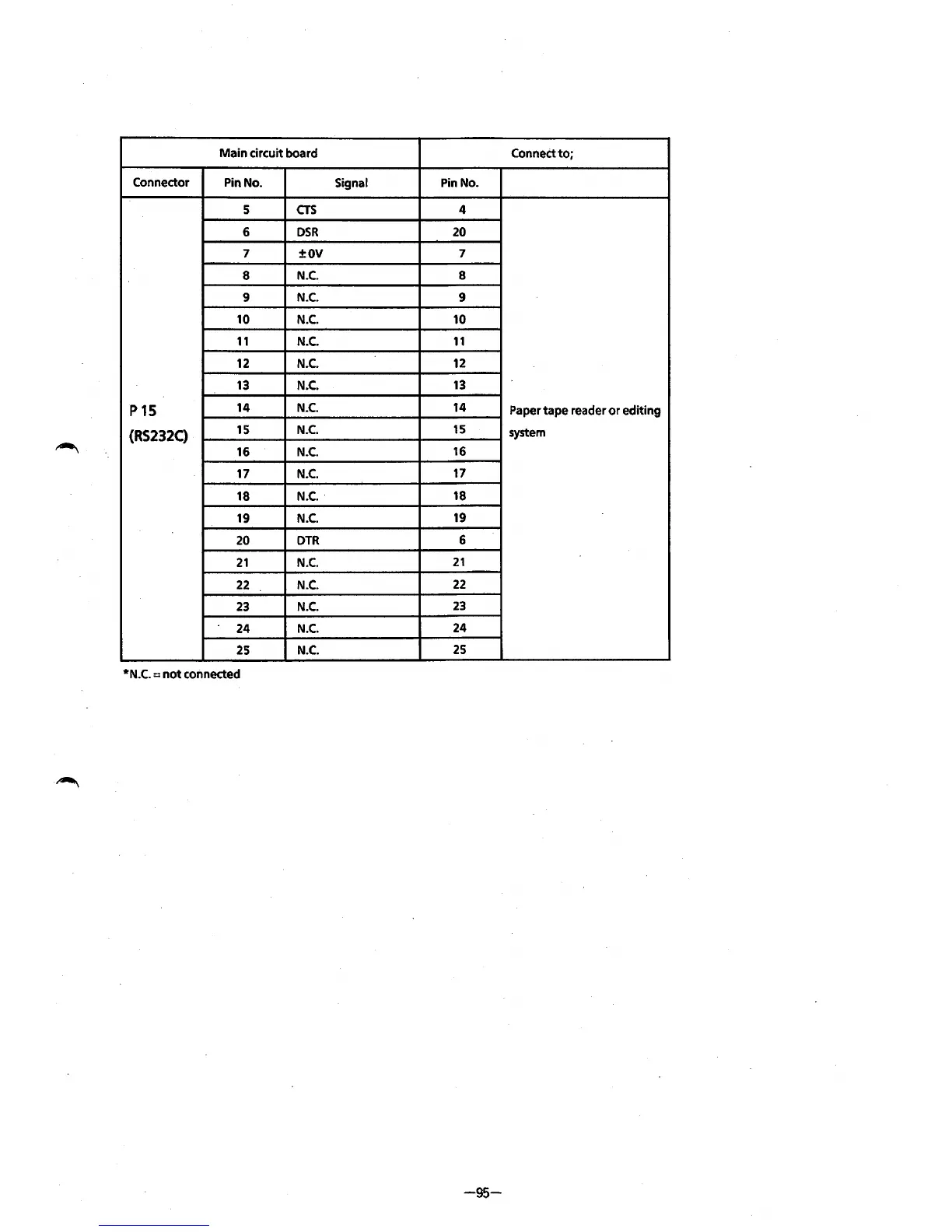

Main circuit board
Connect to;
Connector
Pin No.
Signal Pin No.
5
CTS
4
6
DSR 20
7
±OV
7
8
N.C. 8
9
N.C. 9
10
N.C.
10
11 N.C. 11
12 N.C.
12
13
N.C.
13
P15
14 N.C.
14
Paper tape reader or editing
(RS232C)
15 N.C.
15
system
16 N.C.
16
17 N.C.
17
18
N.C.·
18
19 N.C.
19
20 DTR
6
21
N.C.
21
22 N.C.
22
23
N.C.
23
24
N.C.
24
25 N.C.
25
*N.C.= not connected
-95-
