Chapter 9 Maintenance
BES-962BC • BES-1262BC
230

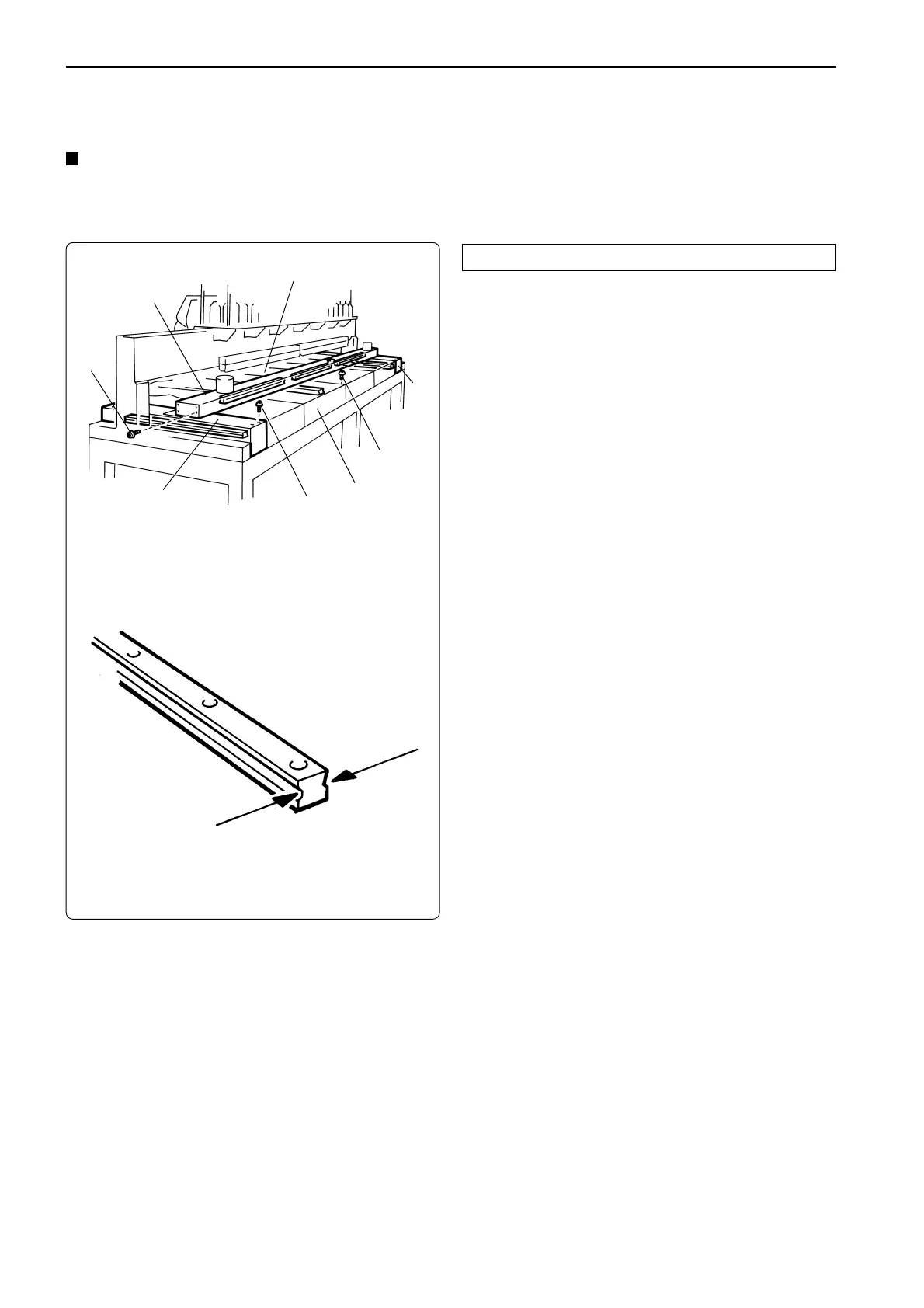

3-2 Feed Guide Section
Check the X-feed linear guides (2 positions) and the Y-feed linear guides (one each on the right
and left, and one point on bed No. 3).
(Note) When greasing, be sure to use the grease tank 30 provided with the machine.
Procedure
1. Loosen 12 screws q, and remove the X-
feed cover w.
2. Loosen eight screws e, and remove the
cover r.
3. Remove thirteen screws t. Remove bed
covers B y and C u.
4. Grease the X-feed linear guides (3
positions), the Y-feed linear guides (one
each on the right and left), and the linear
guide inside the No. 3 bed. Slide the guide
to spread grease entirely.
* After greasing, assemble in the reverse
order.
y
r
e
r
q
w
u
t
To Next Page
