Chapter 4 Selecting and Transferring Embroidery Data
BES-962BC
•
BES-1262BC
91
Writing Data in DST Format

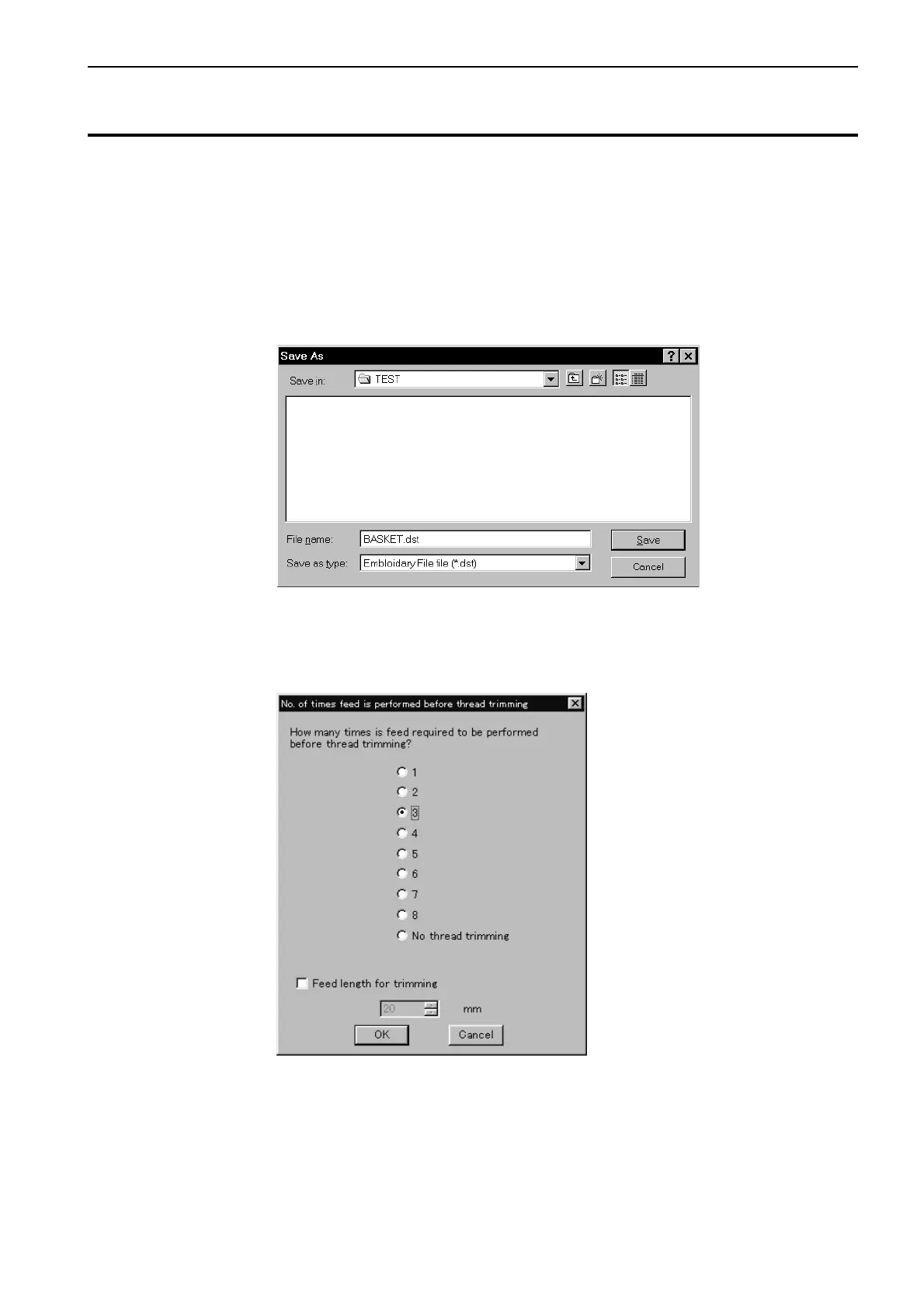

Convert the ECS data into DST data for saving.
1.
Click the desired ECS data to convert into DST data.
2.
Select [ECS to DST conversion] from Tool menu.
3.
Select the directory to save and name the file.
Do not change extension ".dst".
4.
Click [Save].
5.
Set feed counts for thread breakage.Select the count and click [OK].
