Chapter 2 Preparation of Embroidery Machine
BES-962BC • BES-1262BC
32
2-4 Mounting of Table
Preparation for mounting the F table

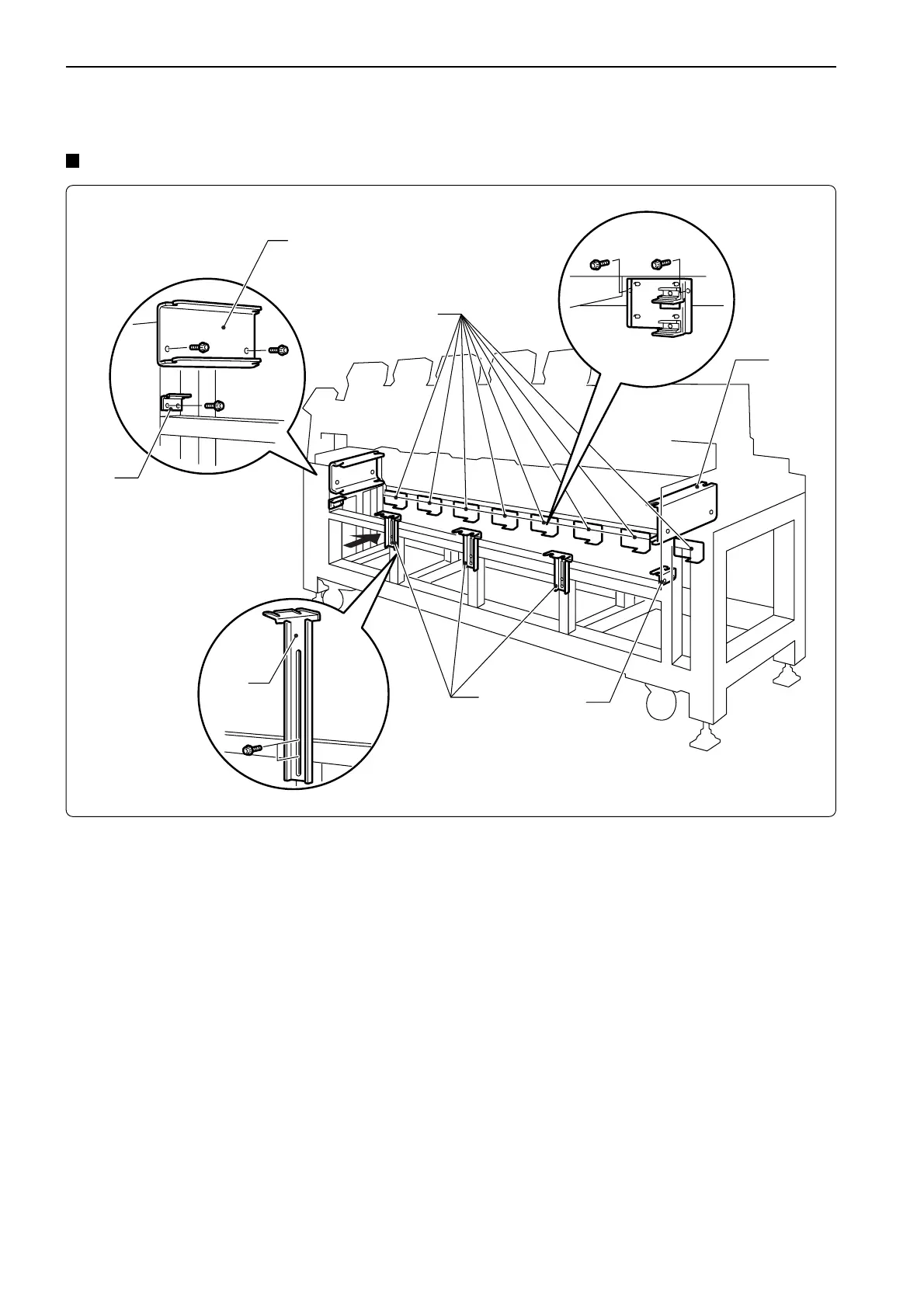

1. Tentatively mount the F table guides UN q and L w on both sides of the legs using two bolts
each.
2. Tentatively mount three F table supports F e on the leg front using two bolts each.
3. Tentatively mount eight F table stoppers r on the rear legs using two bolts each.
Notes) • The steps 1 and 3 are required only when the F table set is purchased separately from the machine.
• The F table is a standard attachment.
q
w
r
e
e
w
q
To Next Page
