1-9 Confidential

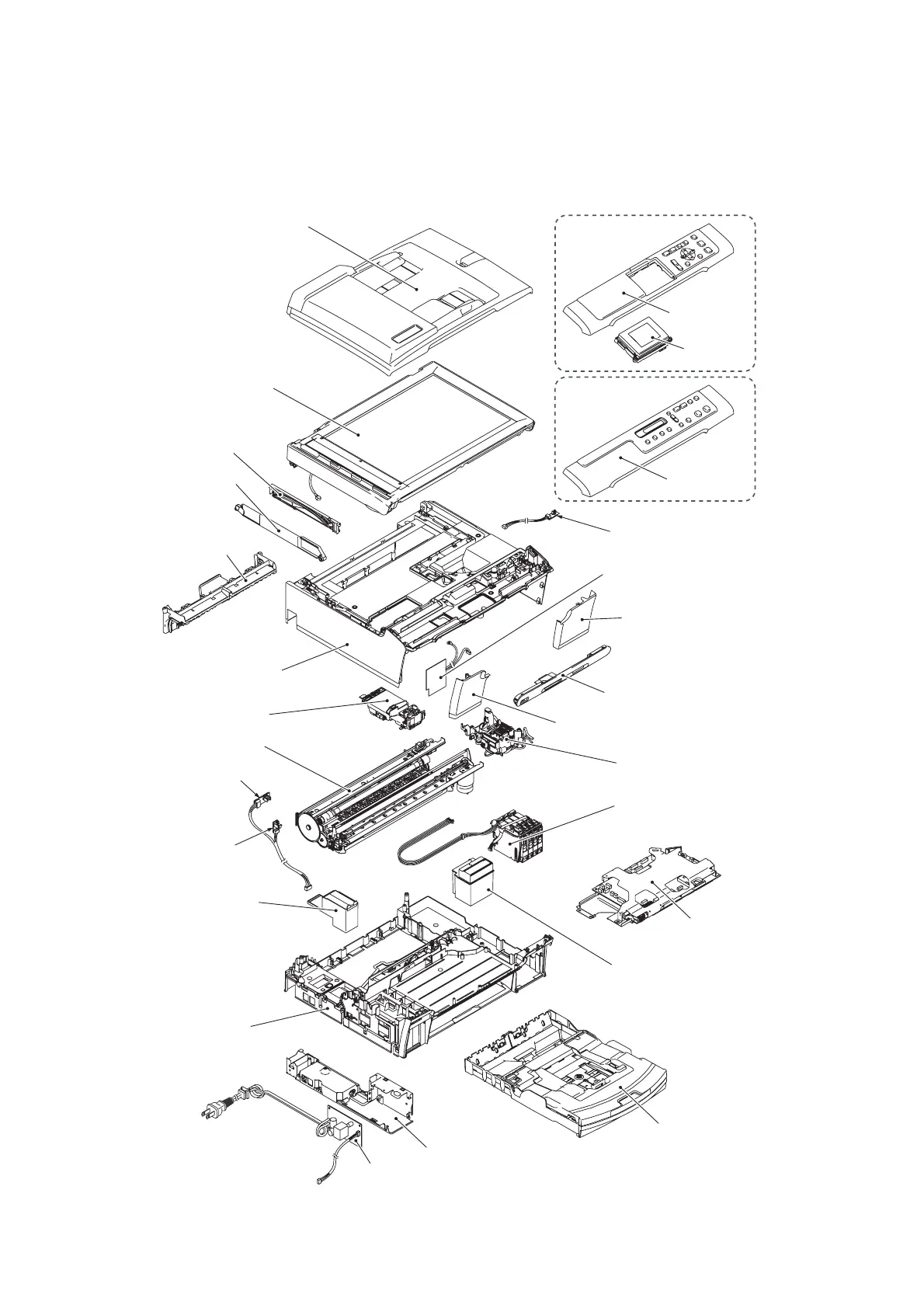

1.3 COMPONENTS
The machine consists of the following major components:
Document cover
(ADF & document cover
ASSY for models with ADF)
Scanner cover
(Scanner unit)
Scanner cover
damper
Scanner cover
support
Upper cover
Head/carriage unit
Engine unit
PF encoder PCB
Registration sensor
PCB
Flushing box
Lower cover
Power supply PCB
MJ/PS shield box
Paper tray ASSY
Ink absorber box
Main PCB ASSY
Ink refill ASSY
Maintenance unit
Front cover
Ink cartridge cover
Media module cover
WLAN PCB
(Only for wireless LAN-enabled
models)
Cover sensor PCB
Control panel
ASSY
Color LCD
unit
Control panel
ASSY
Color LCD type
Monochrome LCD type
(COMPONENTS)
Jam clear cover
