Brother DCP130C - MJ;PS Shield Box and Power Supply PCB

6-37 Confidential
6.1.10 MJ/PS Shield Box and Power Supply PCB
(1) If the main PCB shield frame has not been removed, disconnect the power supply harness from
the main PCB and remove screw "d" (shown on page 6-35) from the main PCB shield frame.
(2) Remove the two screws ("e" and "f").
(3) Remove the MJ/PS shield box from the underside of the lower cover.

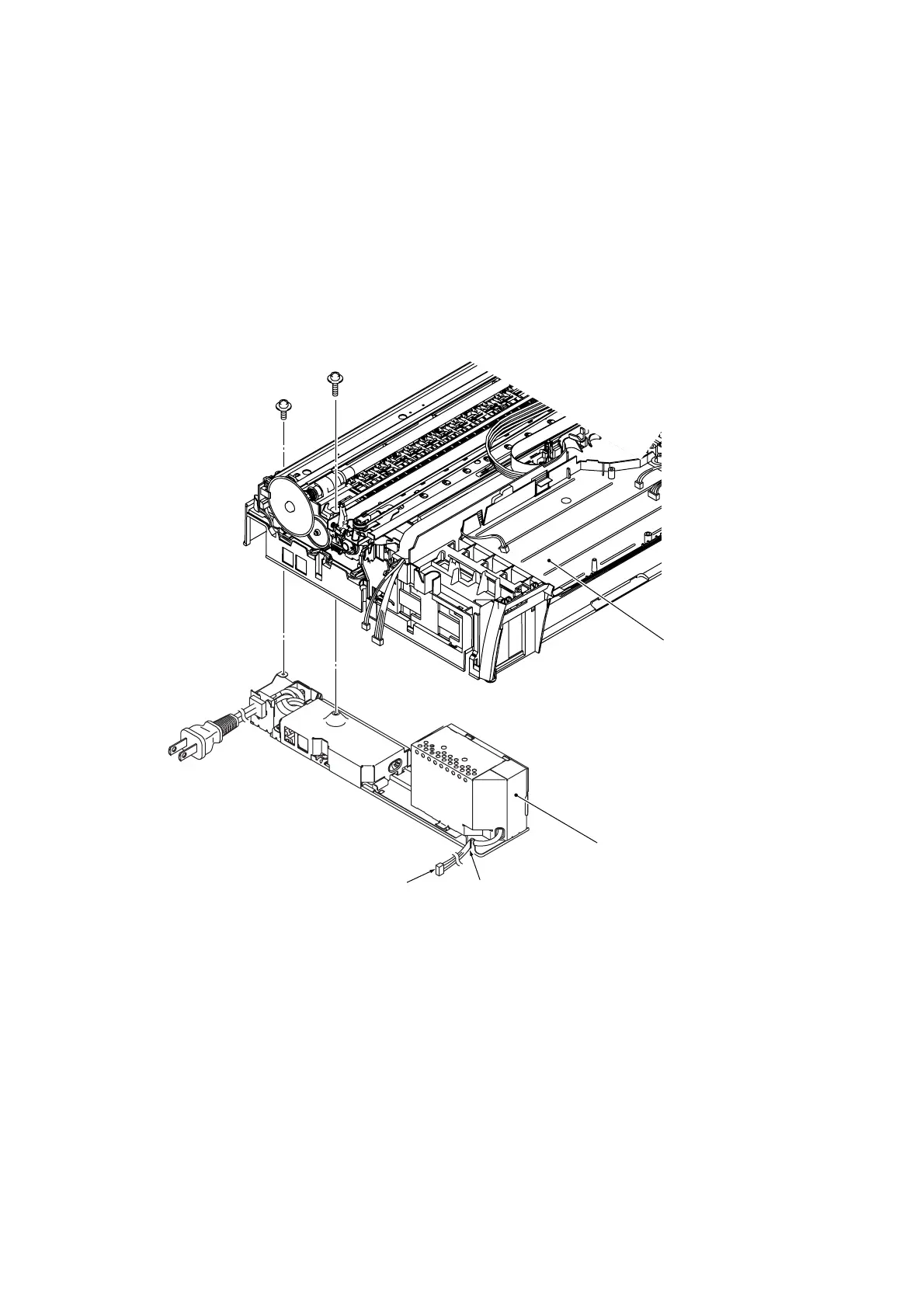

"e"
(6_38)
MJ/PS shield box
Lower cover
Power supply harness
"f"
U-shaped cutout
"e": Screw, pan (s/p washer) M3x8
"f": Taptite, cup S M3x6
